| Ref | Part Number | Description |
|---|
| ALS |
278002857 |
Female Terminal |
| ALS |
515177441 |
Female Housing |
| ALT |
710000080 |
Cap |
| ALT |
710003545 |
Housing |
| ALT |
710003546 |
Seal Wire |
| ALT |
710004475 |
Terminal |
| ALT |
710004486 |
Protector Cap |
| BA |
278000632 |
Female Terminal |
| BA |
515175670 |
Female Terminal Housing, 2 Circuits |
| BA |
515175675 |
Female Lock, 2 Circuits |
| BFS1 |
515177192 |
Female Housing, 2 Circuits |
| BFS1 |
710001164 |
Female Terminal |
| BFS1 |
710001233 |
Seal |
| BFS2 |
515177192 |
Female Housing, 2 Circuits |
| BFS2 |
710001164 |
Female Terminal |
| BFS2 |
710001233 |
Seal |
| BLS |
278001013 |
Wire Seal |
| BLS |
278001014 |
Female Terminal |
| BLS |
409209500 |
Female Housing, 2 Circuits |
| C1 |
710003954 |
CABLE SUPPORT - Call your local BRP dealership |
| C4 |
710003954 |
CABLE SUPPORT - Call your local BRP dealership |
| C5 |
710003954 |
CABLE SUPPORT - Call your local BRP dealership |
| C6 |
710003954 |
CABLE SUPPORT - Call your local BRP dealership |
| CES |
515177298 |
Housing Connector |
| CES |
710001224 |
Terminal |
| CES |
710001233 |
Seal |
| CIC2 |
710001222 |
Lock |
| CIC2 |
710001225 |
Cap |
| CIC2 |
710001228 |
Terminal |
| CIC2 |
710001229 |
Terminal |
| CIC2 |
710001233 |
Seal |
| CIC2 |
710001332 |
Seal Wire |
| CIC2 |
710001930 |
Female Housing, 12 Circuits |
| D2 |
409012700 |
Diode |
| DC5 |
409010700 |
Female Terminal |
| DC5 |
710000670 |
CAP - Call your local BRP dealership |
| DC6 |
409010700 |
Female Terminal |
| DESS |
515177287 |
Housing Connector |
| DESS |
710001222 |
Lock |
| DESS |
710001229 |
Terminal |
| DESS |
710001233 |
Seal |
| DIC1 |
710001222 |
Lock |
| DIC1 |
710001225 |
Cap |
| DIC1 |
710001226 |
Housing |
| DIC1 |
710001229 |
Terminal |
| DIC1 |
710001233 |
Seal |
| DIC2 |
278002186 |
Wire Seal |
| DIC2 |
278002187 |
Female Terminal |
| DIC2 |
710001222 |
Lock |
| DIC2 |
710001873 |
Terminal |
| DIC2 |
710001874 |
CONNECTOR_FEMALE 16 CAVITIES - Call your local BRP dealership |
| DIC2 |
710002075 |
Plug |
| DIC2 |
710003153 |
Seal |
| DLC1 |
710002705 |
Lock |
| DLC1 |
710002706 |
Female Housing 6 Circuits |
| DLC1 |
710005437 |
Plug |
| DLC1 |
710005438 |
Female Terminal |
| DLC1 |
710005439 |
Female Terminal |
| DPS |
710001222 |
Lock |
| DPS |
710001869 |
Terminal |
| DPS |
710001873 |
Terminal |
| DPS |
710001884 |
PLUG - Call your local BRP dealership |
| DPS |
710002075 |
Plug |
| DPS |
710003153 |
Seal |
| DPS |
710004989 |
Female Housing |
| ECMB |
710001588 |
Female Terminal Housing, 48 Circuits |
| ECMB |
710001589 |
Female Terminal |
| ECMB |
710001591 |
Cover, 48 positions |
| ECMB |
710001592 |
Plug |
| ECMB_L |
710001590 |
Female Terminal |
| ECMB_L |
710001593 |
Plug |
| ECMB_L |
710001727 |
Female Terminal |
| FHS |
278002857 |
Female Terminal |
| FHS |
515177441 |
Female Housing |
| FLH |
515175495 |
Female Housing, 3 Circuits |
| FLH |
710003896 |
Female Terminal |
| FP |
278001481 |
Female Terminal |
| FP |
278001482 |
Seal |
| FP |
710000643 |
Seal |
| FP |
710001132 |
Housing |
| FP |
710001133 |
Lock |
| FPL1 |
409209400 |
Male Terminal Housing, 2 Circuits |
| FPL1 |
515176164 |
Male Terminal |
| FPL1 |
515176621 |
Wire Seal |
| FPL1 |
710002033 |
Connector Holder |
| FPL2 |
409209400 |
Male Terminal Housing, 2 Circuits |
| FPL2 |
515176164 |
Male Terminal |
| FPL2 |
515176621 |
Wire Seal |
| FPL2 |
710002033 |
Connector Holder |
| FRH |
515175495 |
Female Housing, 3 Circuits |
| FRH |
710003896 |
Female Terminal |
| GPS2 |
409209400 |
Male Terminal Housing, 2 Circuits |
| GPS2 |
515176164 |
Male Terminal |
| GPS2 |
515176621 |
Wire Seal |
| GPS3 |
409013700 |
Plug |
| GPS3 |
409209500 |
Female Housing, 2 Circuits |
| HBS |
409013700 |
Plug |
| HBS |
409209600 |
Female Housing, 3 Circuits |
| HBS |
515176621 |
Wire Seal |
| HBS |
710001340 |
Female Terminal |
| HIC |
278000632 |
Female Terminal |
| HIC |
278001665 |
Female Terminal |
| HIC |
278002896 |
Housing, 6 Circuits |
| HIC |
293000052 |
Sealing Cap |
| HIC |
515175678 |
Male Wedge, 6 Circuits |
| HN1 |
710002398 |
Female Terminal |
| HN1 |
710002399 |
Female Terminal |
| HN2 |
710002398 |
Female Terminal |
| HN2 |
710002399 |
Female Terminal |
| HO2S1 |
278001482 |
Seal |
| HO2S1 |
710002033 |
Connector Holder |
| HO2S1 |
710002466 |
Housing |
| HO2S1 |
710002597 |
Gold Terminal |
| KIC |
710001231 |
Housing |
| KIC |
710001332 |
Seal Wire |
| KIC |
710001863 |
TERMINAL - Call your local BRP dealership |
| LBHL |
278001013 |
Wire Seal |
| LBHL |
278001014 |
Female Terminal |
| LBHL |
409209600 |
Female Housing, 3 Circuits |
| LCF |
278000217 |
Female Housing, 2 Circuits |
| LCF |
409004300 |
Male Terminal |
| LCF |
710000504 |
Wire Seal |
| LCF |
710002033 |
Connector Holder |
| LED1 |
710001153 |
Seal Wire |
| LED1 |
710001863 |
TERMINAL - Call your local BRP dealership |
| LED2 |
515177192 |
Female Housing, 2 Circuits |
| LFB |
278000218 |
Wire Seal |
| LFB |
278001065 |
Wire Seal |
| LFB |
278002578 |
Female Terminal |
| LFB |
278002880 |
Seal Plug |
| LFB |
515176774 |
Relay, 30 AMP |
| LFB |
710000742 |
Little Fuse, 5 Amperes |
| LFB |
710000744 |
Little Fuse, 10 Amperes |
| LFB |
710000745 |
Little Fuse, 15 Ampere |
| LFB |
710000746 |
Little Fuse, 20 Amperes |
| LFB |
710000918 |
Female Terminal |
| LFB |
710002633 |
PLUG - Call your local BRP dealership |
| LFB |
710005623 |
Fusebox Ass'y |
| LFB |
715900824 |
Relay This part replaces 710001778. |
| LFB_C |
278002389 |
Little Fuse, 25 Ampere |
| LFB_C |
710000742 |
Little Fuse, 5 Amperes |
| LFB_C |
710000744 |
Little Fuse, 10 Amperes |
| LFB_C |
710000745 |
Little Fuse, 15 Ampere |
| LFB_C |
710000746 |
Little Fuse, 20 Amperes |
| LFB_C |
710004096 |
FUSE RELAY DECAL LFB - Call your local BRP dealership |
| LFB_C |
710007491 |
Cover This part replaces 710004120. |
| LFB_J |
710001046 |
Fuse, 25 AMP |
| LFB_J |
710001047 |
Fuse, 40 AMP |
| LFB_J |
710001630 |
Terminal |
| LFB_J |
710001631 |
Cap |
| LFB_J |
710001905 |
Terminal Joint |
| LFB_J |
710001906 |
Terminal |
| LFB_J |
710003133 |
Seal Joint |
| LFB_J |
710003134 |
Seal Joint |
| LFB_J |
710003135 |
M Terminal |
| LFB_R |
710002438 |
Terminal |
| LFB_R |
710003125 |
F Terminal |
| LFB_R |
710003132 |
Seal Joint |
| LFB_R |
710003133 |
Seal Joint |
| LFB_R |
710003143 |
Relais 50 Ampères |
| LPS |
409013700 |
Plug |
| LPS |
409209600 |
Female Housing, 3 Circuits |
| LPS |
515176621 |
Wire Seal |
| LPS |
710001340 |
Female Terminal |
| MSL |
710001223 |
Terminal |
| MSL |
710001224 |
Terminal |
| MSL |
710001225 |
Cap |
| MSL |
710001233 |
Seal |
| MSL |
710001332 |
Seal Wire |
| MSL |
710001944 |
Housing |
| MSR |
710001224 |
Terminal |
| MSR |
710001225 |
Cap |
| MSR |
710001233 |
Seal |
| MSR |
710001929 |
Housing, Packard |
| PBM |
278000632 |
Female Terminal |
| PBM |
278001665 |
Female Terminal |
| PBM |
278002377 |
Female Terminal Housing, 12 Circuits |
| PBM |
293000052 |
Sealing Cap |
| PBM |
409015700 |
Female Lock, 12 Circuits |
| PL |
409013700 |
Plug |
| PL |
515176164 |
Male Terminal |
| PL |
515176621 |
Wire Seal |
| PL |
710000568 |
Housing |
| PL |
710002033 |
Connector Holder |
| PM1 |
278001007 |
Insulated Sheath |
| PM1 |
710000421 |
Female Terminal |
| PM2 |
278001008 |
Insulated Sheath |
| PM2 |
278002261 |
Female Terminal |
| PRS |
278002378 |
Male Housing |
| PRS |
409207600 |
Male Lock, 3 Circuits |
| PRS |
710001348 |
Male Terminal |
| R6 |
515175241 |
Resistance |
| RBHL |
278001013 |
Wire Seal |
| RBHL |
278001014 |
Female Terminal |
| RBHL |
409209600 |
Female Housing, 3 Circuits |
| RCF |
278000217 |
Female Housing, 2 Circuits |
| RCF |
409004300 |
Male Terminal |
| RCF |
710000504 |
Wire Seal |
| RCF |
710002033 |
Connector Holder |
| RFB |
278000218 |
Wire Seal |
| RFB |
278001065 |
Wire Seal |
| RFB |
278002389 |
Little Fuse, 25 Ampere |
| RFB |
278002578 |
Female Terminal |
| RFB |
278002880 |
Seal Plug |
| RFB |
710000742 |
Little Fuse, 5 Amperes |
| RFB |
710000744 |
Little Fuse, 10 Amperes |
| RFB |
710000745 |
Little Fuse, 15 Ampere |
| RFB |
710000890 |
Female Terminal |
| RFB |
710000918 |
Female Terminal |
| RFB |
710002633 |
PLUG - Call your local BRP dealership |
| RFB |
710005623 |
Fusebox Ass'y |
| RFB |
715900824 |
Relay This part replaces 710001778. |
| RFB_C |
278002389 |
Little Fuse, 25 Ampere |
| RFB_C |
710000742 |
Little Fuse, 5 Amperes |
| RFB_C |
710000744 |
Little Fuse, 10 Amperes |
| RFB_C |
710000745 |
Little Fuse, 15 Ampere |
| RFB_C |
710000746 |
Little Fuse, 20 Amperes |
| RFB_C |
710004097 |
FUSE RELAY DECAL RFB - Call your local BRP dealership |
| RFB_C |
710007491 |
Cover This part replaces 710004120. |
| RFB_J |
710001047 |
Fuse, 40 AMP |
| RFB_J |
710001078 |
Fuse, 20 AMP |
| RFB_J |
710001200 |
Fuse 30 amp. |
| RFB_J |
710001631 |
Cap |
| RFB_J |
710001905 |
Terminal Joint |
| RFB_J |
710001906 |
Terminal |
| RFB_J |
710003133 |
Seal Joint |
| RFB_J |
710003135 |
M Terminal |
| RFB_R |
710002438 |
Terminal |
| RFB_R |
710003125 |
F Terminal |
| RFB_R |
710003132 |
Seal Joint |
| RFB_R |
710003133 |
Seal Joint |
| RFB_R |
710003143 |
Relais 50 Ampères |
| STS1 |
710002398 |
Female Terminal |
| STS1 |
710002399 |
Female Terminal |
| STS2 |
710002398 |
Female Terminal |
| STS2 |
710002399 |
Female Terminal |
| T10 |
293750058 |
Tie Rap 2 Pièces pour Bordure |
| T14 |
293750058 |
Tie Rap 2 Pièces pour Bordure |
| T9 |
293750058 |
Tie Rap 2 Pièces pour Bordure |
| TAS |
710001222 |
Lock |
| TAS |
710001229 |
Terminal |
| TAS |
710001232 |
Housing |
| TAS |
710001233 |
Seal |
| VCM |
710001153 |
Seal Wire |
| VCM |
710001258 |
Plug |
| VCM |
710002381 |
Module Protector VCM |
| VCM |
710002768 |
Housing |
| VCM |
710002772 |
RH Connector Cover |
| VCM |
710002773 |
Terminal |
| VCM_L |
710001159 |
Wire Seal |
| VCM_L |
710002775 |
Terminal |
| VCM_M |
278000999 |
Wire Seal |
| VCM_M |
710000837 |
Female Terminal |
| VSS1 |
710003729 |
Housing |
| VSS1 |
710004243 |
Female Terminal |
| VSS2 |
710003729 |
Housing |
| VSS2 |
710004243 |
Female Terminal |
| VSS3 |
710003729 |
Housing |
| VSS3 |
710004243 |
Female Terminal |
| YRS |
710003730 |
Housing |
| 1 |
710005318 |

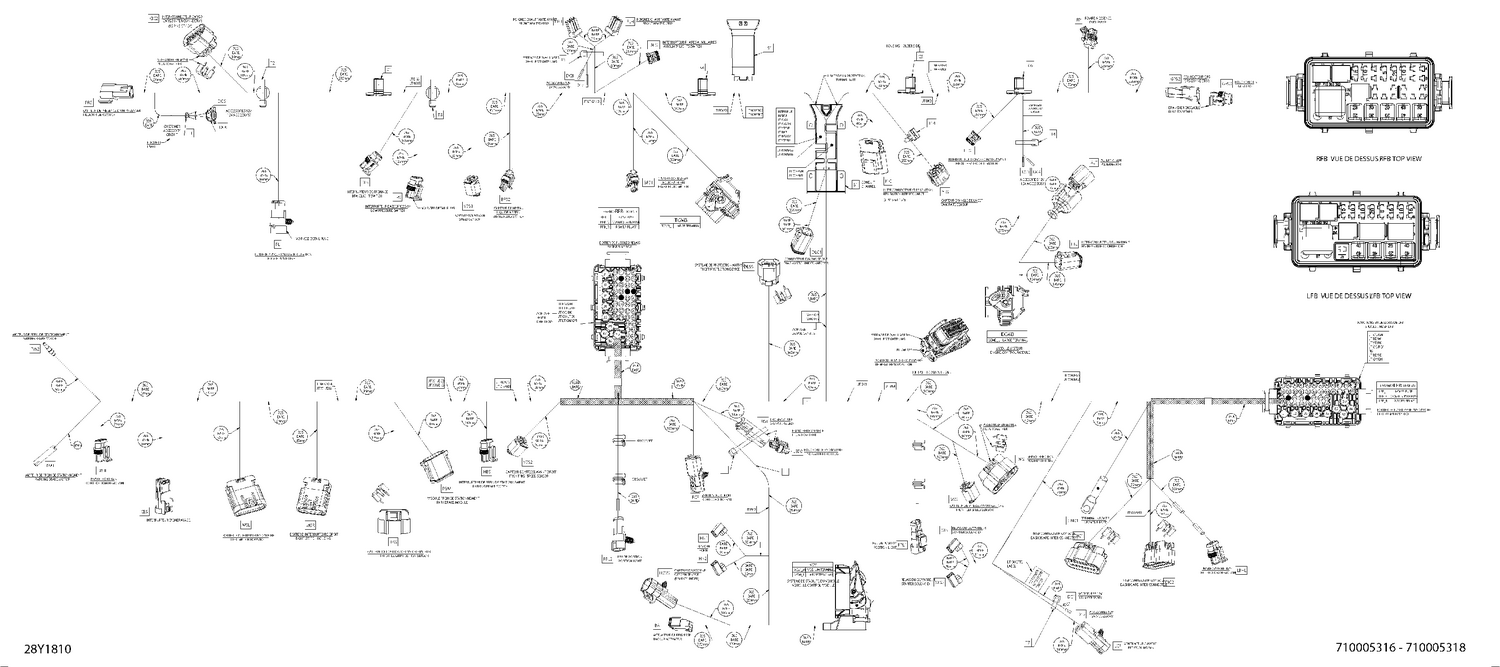

WIRING HARNESS MAIN - Call your local BRP dealership |
