Parts Catalog

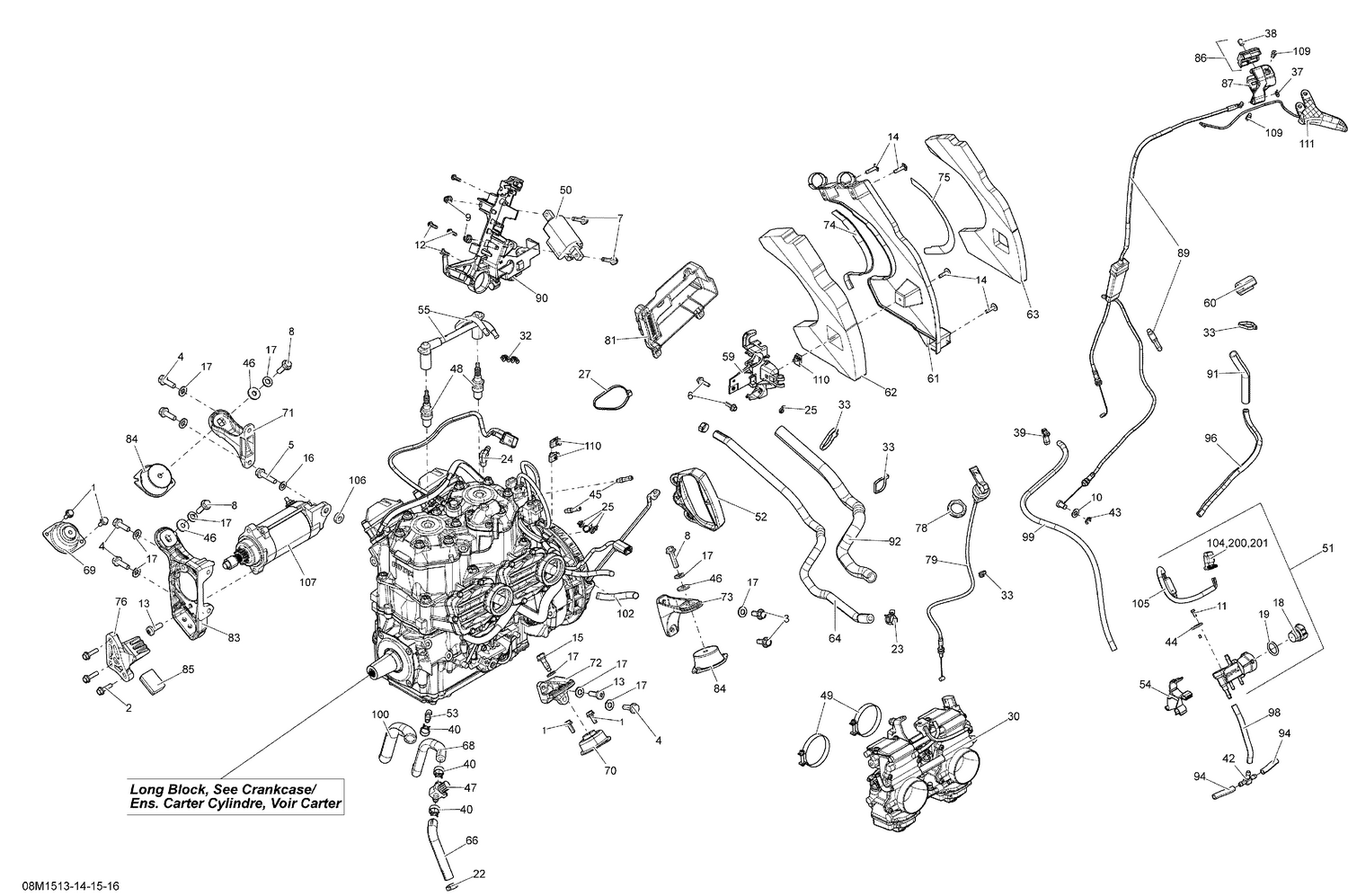

01- Engine _08M1513

Parts (89)

Ref	Part Number	Description
1	207561644	Hex. Flange Screw M6 X 16, Scotch Grip
2	207562544	Hex. Flange Screw M6 X 25
3	207582044	Hex. Flange Screw M8 X 20, Scotch Grip
4	207582586	Hex. Flange Screw M8 X 25, Scotch Grip
5	207583544	Hex Flange Screw M8 X 35, Scotch Grip
6	XXX	Not Available As Spare Parts
7	207563034	Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034.
8	207683044	Hex. Flange Screw M8 X 30
9	233261414	Hex. Flange Elastic Nut M6 x 1.0
10	234081100	Flat Washer 8 mm, Nylon
11	XXX	Not Available As Spare Parts
12	241151640	Hex. Flange Screw K50 X 2.24 X 16
13	250000752	Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
14	250000528	Torx Screw M5 X 20
15	250000796	Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000570.
16	250200008	Flat Washer With Teflon 8 mm
17	250200146	Conical Spring Washer M8
18	XXX	Not Available As Spare Parts
19	XXX	Not Available As Spare Parts
21	293650046	Oetiker Clamp
22	293650125	Oetiker Clamp
23	293650214	Norma Spring Clamp
24	XXX	Not Available As Spare Parts
25	XXX	Not Available As Spare Parts
27	293750008	Tie Wrap 368 mm
30	403138815	Carburetor Kit, TM40-B418
32	410914600	Plastic Clip, Spark Plug Wire
33	414115200	Tie-Rap 180 mm
37	414274500	Circlip
38	414440800	Socket Set Screw M8 X 10
39	414580700	Male Connector
40	414655700	Spring Clamp
42	572045500	T-Fitting
43	414753500	Circlip
44	XXX	Not Available As Spare Parts
45	420924724	Hose Nipple
46	503183200	Yellow, Washer
47	512059324	Valve 5/16”
48	415128524	Spark Plug NGK BR9ECS
49	512059835	Gemi Clamp
50	512059968	Ignition Coil
51	XXX	Not Available As Spare Parts
52	512060136	Starter Grip
53	512060196	Male Connector 1/8"-27 NPT
54	XXX	Not Available As Spare Parts
55	512060291	Cable
59	512060298	Solenoid Support
60	512060313	Protector
61	512060338	Noise Shield
62	512060341	Inner Noise Foam
63	512060342	Outer Noise Foam
64	512060347	Hose Formed
66	512060353	Hose Formed
68	512060355	Hose Formed
69	512061507	Vibration Damper This part replaces 512060387.
70	512060448	Rubber Mount
71	512060469	Front Support, MAG
72	512060478	Rear Support, PTO
73	512060559	Rear Support, MAG
74	512060574	Heat Shield
75	512060575	Heat Shield
76	512060576	Stopper Support
78	512060671	Plastic Nut
79	512060672	Choke Cable
80	512060680	Calibrated Module, 600
81	XXX	Not Available As Spare Parts
83	512060712	FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.
84	512060729	Rubber Mount
85	512060627	Stopper
86	512060859	Upper Housing
87	512060860	Lower Housing
89	512060886	Throttle Cable
90	512060924	Coils Support
91	219704407	Tubing 10 MM 1000MM Long
92	219704408	Tubing 16 Mm 1000Mm Long
94	XXX	Not Available As Spare Parts
96	219704425	Tubing 6 Mm 3000Mm Long
98	XXX	Not Available As Spare Parts
99	219704410	Polyurethane Hose 10000Mm Long
100	219704408	Tubing 16 Mm 1000Mm Long
102	219704407	Tubing 10 MM 1000MM Long
104	XXX	Not Available As Spare Parts
105	XXX	Not Available As Spare Parts
106	515176500	Washer
107	515178473	Starter This part replaces 515177389.
109	732601143	Flange Screw
110	250000958	Panel Nut M5 X 0.8 This part replaces 250000079.
111	512061252	Throttle Handle Ass'y This part replaces 512061049.
200	XXX	Not Available As Spare Parts
