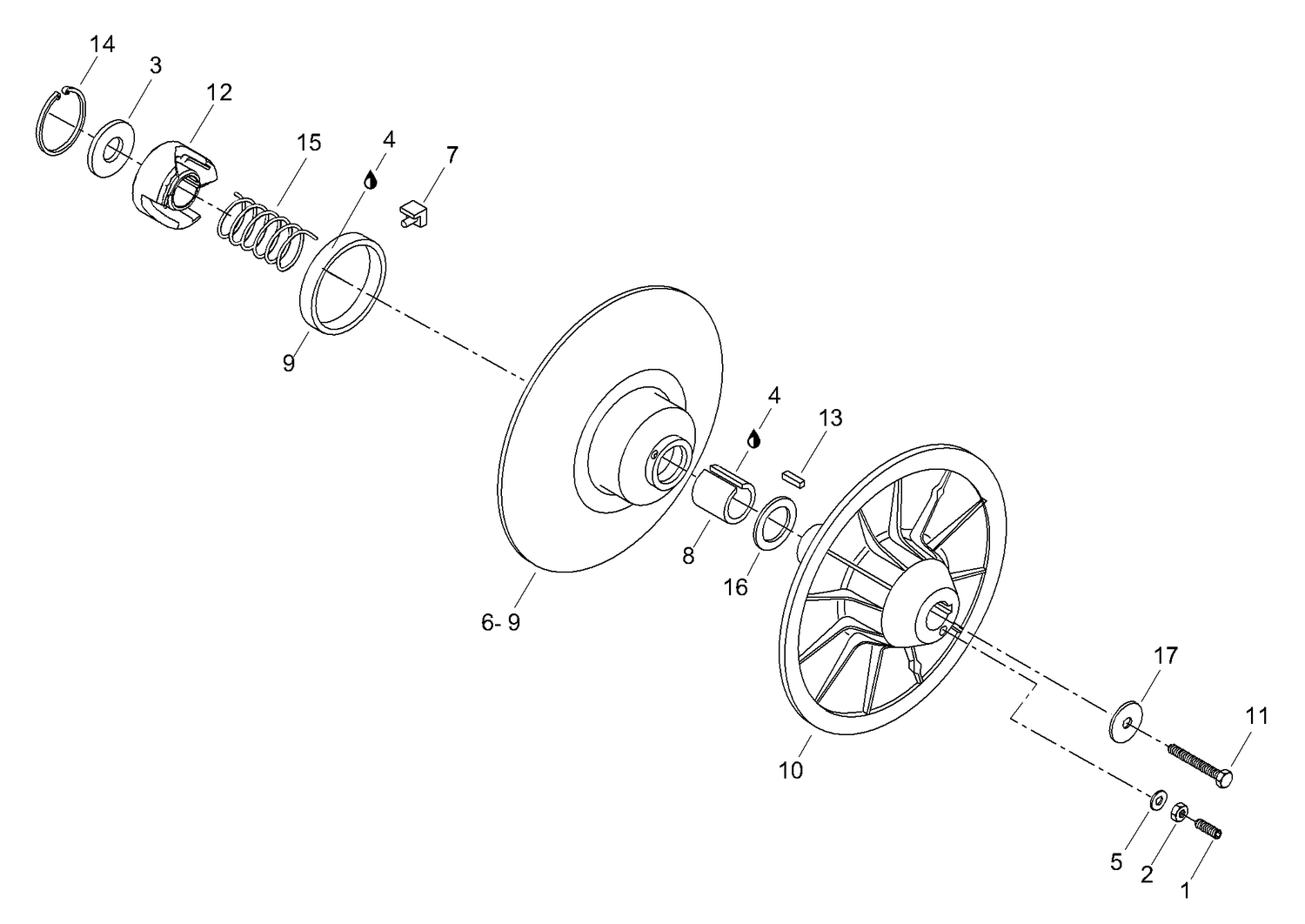

05- Driven Pulley
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 206263044 | Screw |
| 2 | 232061414 | Nut |
| 3 | 504141800 | Washer |
| 4 | 413703100 | Loctite 609 10cc |
| 5 | 420245370 | WASHER - Call your local BRP dealership |
| 7 | 414918000 | CAM SLIDER SHOE - Call your local BRP dealership |
| 8 | 415011200 | BUSHING - Call your local BRP dealership |
| 9 | 414876600 | GARLOCK BUSHING - Call your local BRP dealership |
| 10 | 417126477 | Fixed half pulley assy |
| 11 | 40089 | M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 12 | 417126380 | Cam 53-47 degr. |
| 13 | 414820800 | Key |
| 14 | 371903100 | CIRCLIP - Call your local BRP dealership |
| 15 | 504152070 | RELEASE SPRING, WHITE - Call your local BRP dealership |
| 16 | 504141900 | Thrust washer |
