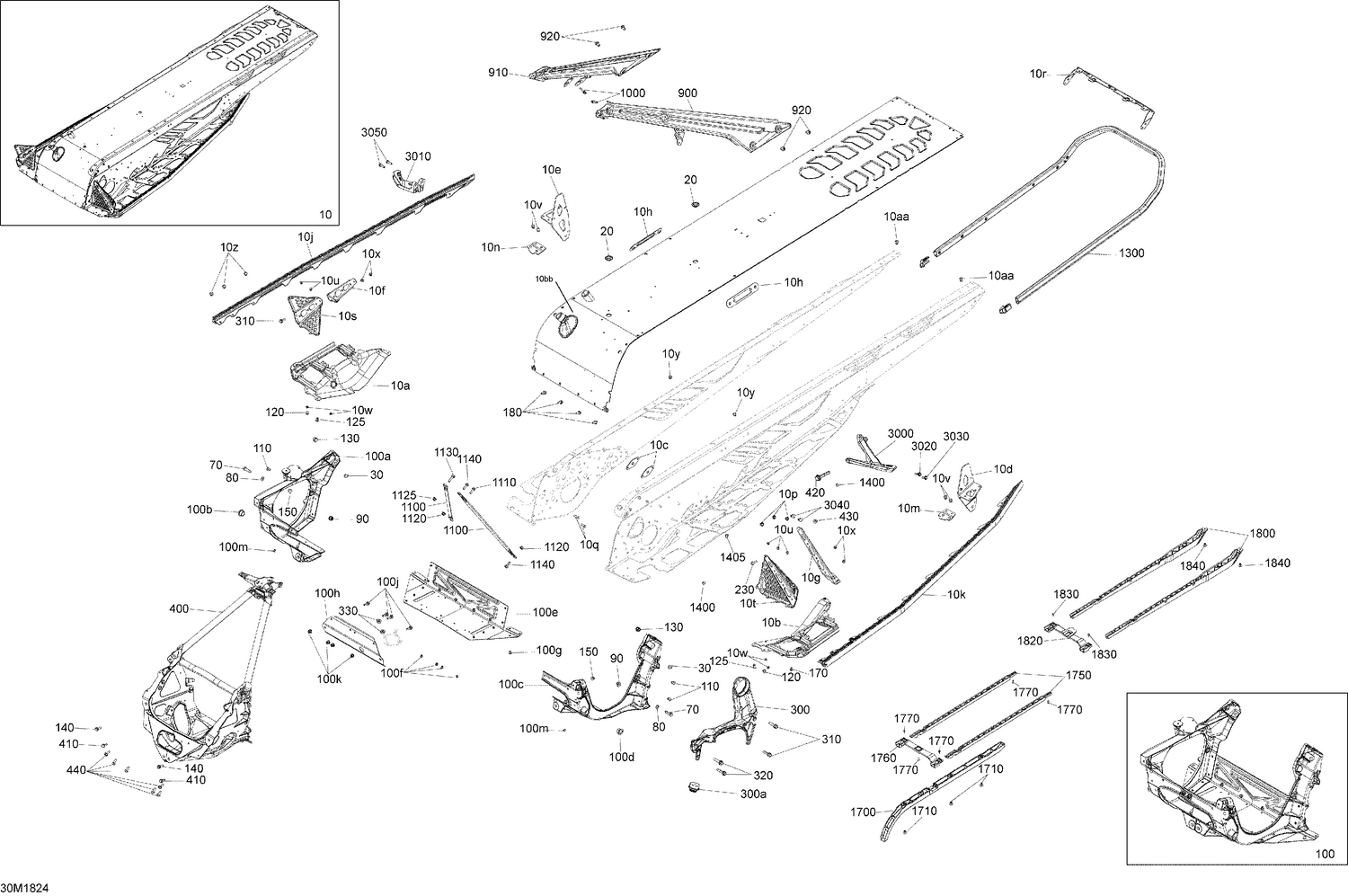

| Ref | Part Number | Description |
|---|
| 10a |
518328684 |
RH Footrest Reinforcement |
| 10aa |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 10b |
518328682 |
LH Footrest Reinforcement |
| 10bb |
518334489 |
Radiator Tunnel 146 This part replaces 518330132. |
| 10c |
518326647 |
Reinforcement Plate |
| 10d |
518328467 |
LH Suspension Bracket |
| 10e |
518334391 |
RH Rear Suspension Support This part replaces 518328468. |
| 10f |
518330072 |
RH Footrest Reinforcement This part replaces 518329048. |
| 10g |
518331560 |
Deep Black, LH Chasssis Reinforcement This part replaces 518329049. |
| 10j |
518328451 |
RH Roller |
| 10k |
518328452 |
LH Roller |
| 10m |
518329088 |
LH Reinforcement Plate |
| 10n |
518329089 |
RH Reinforcement Plate |
| 10p |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450232. |
| 10q |
250300027 |
Clinch Stud M6 X 20 |
| 10r |
518328990 |
Rear Cap |
| 10s |
518328460 |
RH Footrest |
| 10t |
518333007 |
LH Footrest This part replaces 518328463. |
| 10u |
293150203 |
Rivet Avibulb 3/16 |
| 10v |
293150183 |
Rivet |
| 10w |
293150144 |
Stavex Rivet |
| 10x |
293150096 |
Hemlock Rivet, 6.5 mm |
| 10y |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10z |
293150174 |
Hemlock Rivet, 6.4 mm |
| 20 |
293730052 |
Black, Plug |
| 30 |
506151252 |
Washer |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100b |
505073317 |
Leg Cushion |
| 100d |
505073317 |
Leg Cushion |
| 100e |
518329844 |
Bottom Plate |
| 100f |
293150203 |
Rivet Avibulb 3/16 |
| 100g |
293450268 |
Insert M5 X 0.8 |
| 100h |
518330100 |
Front Member |
| 100j |
207662046 |
Hex. Flange Screw M6 X 20 |
| 100k |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100m |
293150203 |
Rivet Avibulb 3/16 |
| 110 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 120 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 125 |
293150120 |
Hemlock Rivet 6.5 mm |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 170 |
293450268 |
Insert M5 X 0.8 |
| 180 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 300a |
512061516 |
Vibration Damper This part replaces 512060295. |
| 310 |
250001048 |
Hex. Flange Screw M8 X 30 |
| 320 |
207683544 |
Hex. Flange Screw M8 X 35 |
| 330 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 400 |
518334549 |
Chassis Suspension Module Ass'y This part replaces 518329966. |
| 410 |
250001051 |
Screw-Forming Hex.HD.FL. M6 X 16 This part replaces 250000822. |
| 420 |
207663544 |
Hex. Flange Screw M6 X 35 |
| 430 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 440 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1000 |
250300629 |
Stud M5 X 20 |
| 1100 |
518329974 |
Upper Colomn Support |
| 1110 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 1120 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1125 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1130 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 1400 |
293730047 |
Black, Dart 8 mm |
| 1405 |
293730060 |
Black, Dart 10 mm |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 1750 |
518329994 |
Rear Protector |
| 1760 |
518334162 |
Front Protective Structure This part replaces 518329981. |
| 1770 |
250000577 |
Torx Truss Screw K40 X 12 |
| 1800 |
518329979 |
Rear Protector |
| 1820 |
520001545 |
Support |
| 1830 |
250000577 |
Torx Truss Screw K40 X 12 |
| 1840 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 3000 |
518330358 |
Black Toe-hold |
| 3010 |
518329134 |
Toe Hold |
| 3020 |
250000793 |
Hex. Flange Screw M6 X 25 |
| 3030 |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
