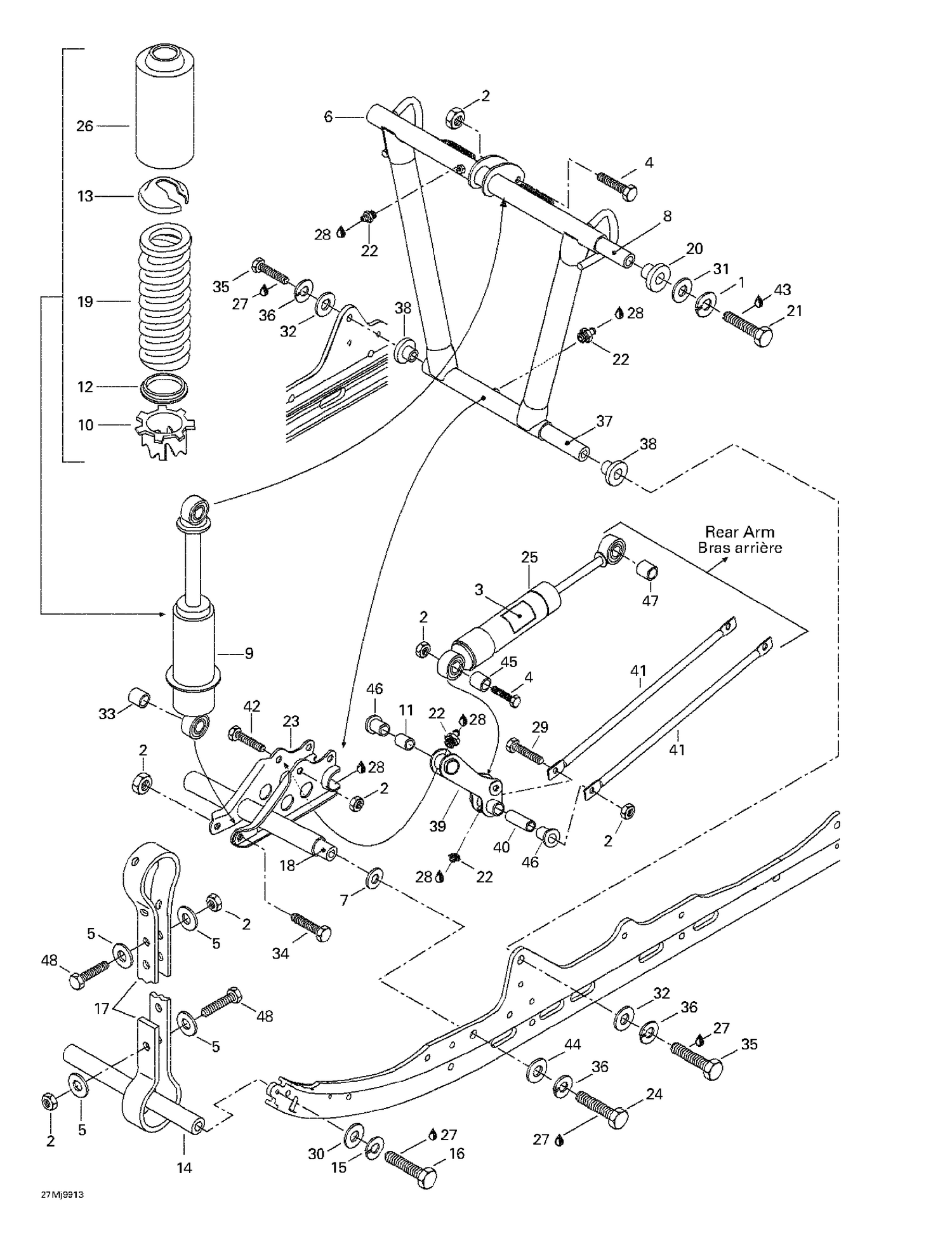

08- Front Arm, Rear Suspension

08- Front Arm, Rear Suspension

Parts (43)

RefPart NumberDescription
1 234101601 Helicoidal Lock Washer M10
2 232581414 Hex. Elastic Stop Nut M8
4 207084044 Hex. Screw M8 X 40 This part replaces 222084065.
5 517078700 WASHER - Call your local BRP dealership
6 503171100 Welded Front Arm
7 503175400 Hardened Washer
8 503190387 SHAFT - Call your local BRP dealership This part replaces 503188938.
9 503189196 Center Shock
10 503169000 Cam
11 503171700 Pivot Axle
12 572092600 Spring Guide
13 706200881 Spring Stopper This part replaces 503140600.
14 503151600 Axle
15 234181401 Lock Washer 8 mm This part replaces 224781140.
16 207183044 Hex. Screw M8 X 30 This part replaces 222083065.
17 570069300 Stopper Strap
18 503174900 Lower Axle
19 415057600 Spring
20 503189324 Bushing This part replaces 503188939.
21 207006044 HEX. SCREW M10 X 60 - Call your local BRP dealership
22 408200700 Grease Fitting
23 503188976 Welded Shock Support
24 222024065 Hex. Screw M12 x 40
26 503193663 Protector This part replaces 503188930.
27 293800005 Loctite 271, 10 ml
28 219700417 SYNTHETIC GREASE, 400 G - Call your local BRP dealership
29 207089044 Hex. Screw M8 X 90
30 234081410 Flat Washer 8 mm This part replaces 224081171.
31 234001410 Flat Washer 10 mm This part replaces 224001211.
32 234021410 Flat Washer 12 mm This part replaces 224021251.
33 414917900 Cushion
34 207085544 Hex. Screw M8 X 55 This part replaces 222085565.
35 207026044 HEX. SCREW M12 X 60 - Call your local BRP dealership
36 224721218 Lock Washer 12 mm
37 503182000 Shaft
38 503188940 Cushion
39 503171400 Lever
40 503171600 Tie Rod Shaft
41 503184900 Tie Rod
42 207085044 Hex. Screw M8 X 50
43 293800060 Loctite 243, 10 ml This part replaces 293800015.
44 234021410 Flat Washer 12 mm This part replaces 224021251.
46 415052300 Plastic Cushion
