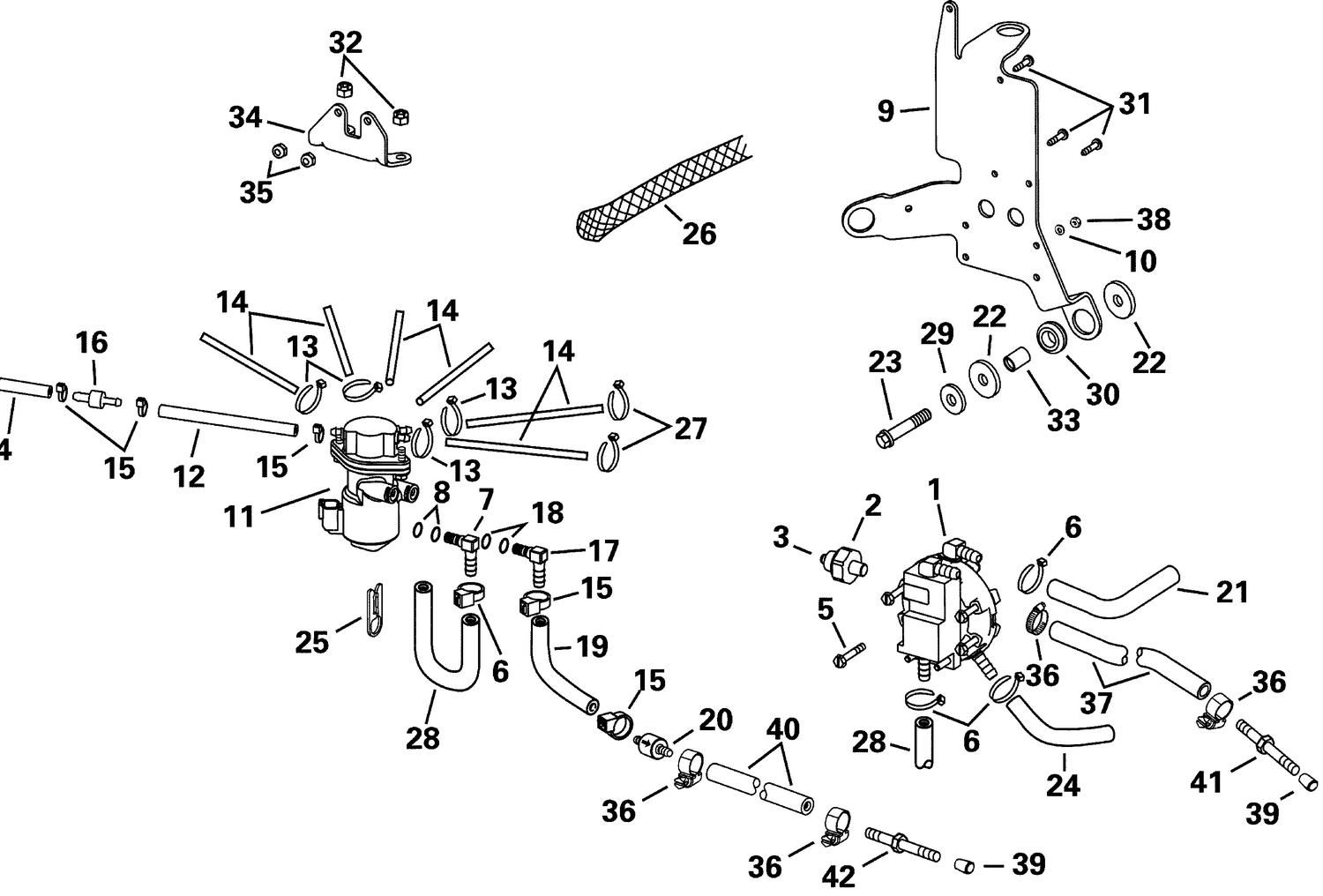

| Ref | Part Number | Description |
|---|
| 1 |
5001505 |
OIL LIFT PUMP ASSY. |
| 2 |
0445037 |
MANOSTAT D'HUILE |
| 5 |
0333675 |
SCREW, Bracket to c'case cover |
| 6 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 7 |
5000911 |
FITTING, Oil injector inlet |
| 9 |
0344636 |
BRACKET |
| 11 |
5000527 |
OIL INJECTOR & MANIFOLD ASSY. |
| 15 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 17 |
5000912 |
RACCORD, sortie injecteur d'huile |
| 19 |
0332851 |
FLEXIBLE D’IMPULSIONS |
| 21 |
0332911 |
HOSE, Oil pulse, upper |
| 25 |
0345468 |
DISPOSITIF DE RETENUE, raccord |
| 26 |
0336269 |
BRAIDED SLEEVE |
| 28 |
0334425 |
HOSE, Pump to filter |
| 33 |
0335328 |
SCREW, Connector |
| 34 |
0346433 |
BRACKET |
| 36 |
0980863 |
CLAMP |
| 41 |
0358042 |
FITTING, Fuel hose This part replaces 0349008. |
