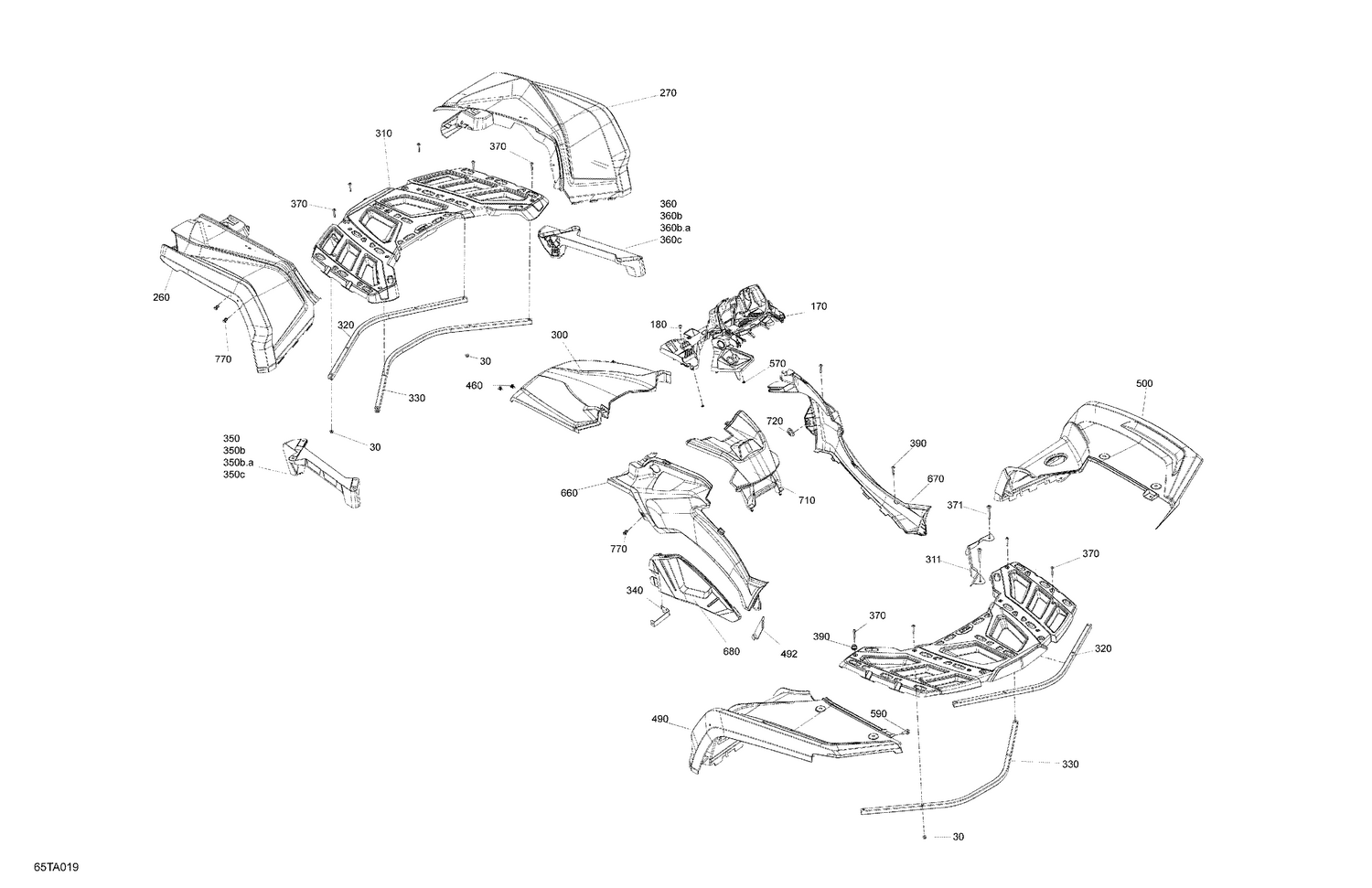

07- Body - Fender Kit
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 233261434 | Flange Elastic Nut M6 |
| 170 | 715006101 | Console Support Ass'y This part replaces 715003984. |
| 180 | 293830005 | Rubber Bumper |
| 310 | 715002240 | Rack Kit |
| 311 | 705013222 | ESD Bracket |
| 320 | 705016640 | Sectional Bent Tube This part replaces 705016091. |
| 330 | 705016092 | Bent Sectional Tube |
| 340 | 705004523 | Lugage Rack Moulding |
| 350b | 269501943 | Elastic Nut Housing M8 |
| 350c | 232561600 | Hex. Elastic Stop Nut M6 |
| 360b | 269501943 | Elastic Nut Housing M8 |
| 360c | 232561600 | Hex. Elastic Stop Nut M6 |
| 370 | 250000646 | Black, Torx Screw M6 X 35 |
| 371 | 235564054 | Screw-torx Button Head M6 X 40 |
| 390 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 460 | 517302785 | Edge Clip |
| 492 | 707002457 | Heat Shield |
| 590 | 250000722 | Torx Screw M6 X 20 |
| 680 | 715007294 | Deflector Body Panel Kit |
| 710 | 715002783 | Dash Kit |
| 720 | 705003264 | Grommet |
