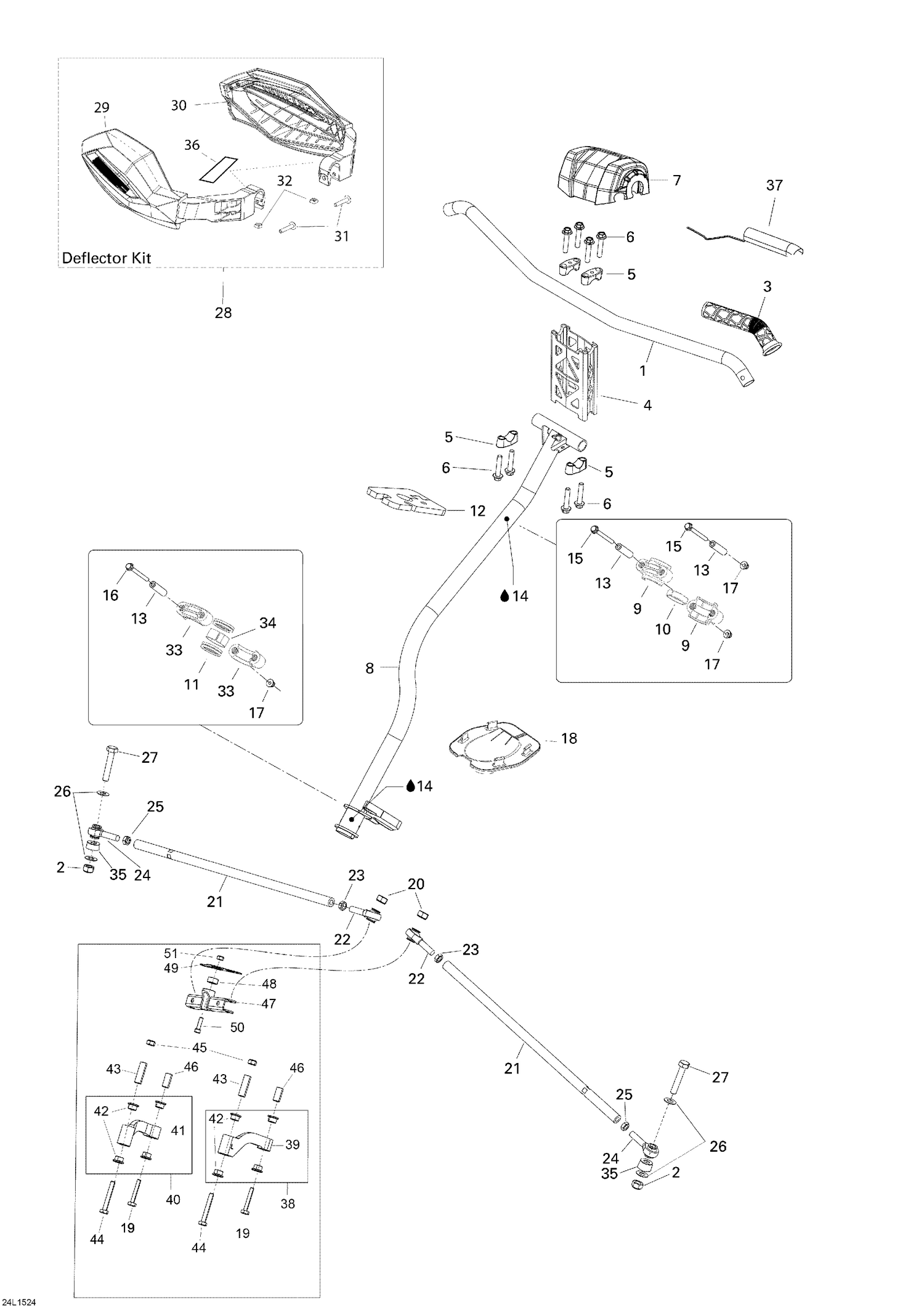

| Ref | Part Number | Description |
|---|
| 1 |
506152712 |
FULL MOON HAND BAR - Call your local BRP dealership |
| 2 |
233601466 |
Elastic Locking Nut M10 |
| 3 |
506152483 |
Grip |
| 4 |
506151753 |
Extension 115 mm. |
| 4 |
506152616 |
Extension 130 mm. |
| 5 |
506152751 |
Steering Support |
| 6 |
250000352 |
Hex Flanged Screw M8 x 40 |
| 7 |
506152553 |
Steering Pad |
| 8 |
506152965 |
TUBE-MAIN PAINT - Call your local BRP dealership This part replaces 506152699. |
| 9 |
506152293 |
Upper Half-Housing |
| 10 |
NOT |
IN USE VIBRAT. GASKET upper NOT IN USE |
| 11 |
NOT |
IN USE VIBRAT. GASKET lower NOT IN USE |
| 12 |
506152476 |
Cushion |
| 13 |
506152297 |
Housing Bushing |
| 14 |
619590193 |
Synthetic Grease, 400 g |
| 15 |
207667056 |
Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 16 |
207667056 |
Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 17 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 18 |
506152163 |
Plate |
| 19 |
207004044 |
Hex. Screw M10 X 40 |
| 20 |
232500416 |
Elastic Stop Nut M10 |
| 21 |
506152715 |
ROD ASS'Y - Call your local BRP dealership |
| 22 |
506152081 |
Ball Joint |
| 23 |
250100016 |
LH Threaded Hex. Jam Nut M10 |
| 24 |
506152019 |
Ball Joint |
| 25 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 26 |
506152582 |
Washer |
| 27 |
207005544 |
Hex Screw M10 X 55 |
| 28 |
517305053 |
Deflector pack |
| 29 |
Not |
Available As Spare Part - RH deflector |
| 30 |
Not |
Available As Spare Part - LH deflector |
| 31 |
250000501 |
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership |
| 32 |
250000498 |
SQUARE NUT M6 - Call your local BRP dealership |
| 33 |
506152549 |
LOWER HALF-HOUSING - Call your local BRP dealership |
| 34 |
Not |
Available As Spare Part - Retain Ring |
| 35 |
506152713 |
Washer ring |
| 36 |
Not |
Available As Spare Part - Friction tape |
| 37 |
506152428 |
Heated film |
| 38 |
506152719 |
LH SWIVEL ARM ASS'Y - Call your local BRP dealership |
| 39 |
Not |
Available As Spare Part - Arm LH |
| 40 |
506152720 |
RH SWIVEL ARM ASS'Y - Call your local BRP dealership |
| 41 |
Not |
Available As Spare Part - Arm RH |
| 42 |
505072690 |
Leg Bushing |
| 43 |
506152691 |
SWIVEL PIVOT - Call your local BRP dealership |
| 44 |
207007044 |
SCREW-HEX.CAP ISO.4014 |
| 45 |
232500416 |
Elastic Stop Nut M10 |
| 46 |
506152696 |
SWIVEL PIVOT - Call your local BRP dealership |
| 47 |
506152693 |
WELDED SWIVEL BAR - Call your local BRP dealership |
| 48 |
506152714 |
BEARING - Call your local BRP dealership |
| 49 |
506152697 |
PLATE - Call your local BRP dealership |
| 50 |
205003544 |
SCREW-SOCKET HD.DIN.912 |
