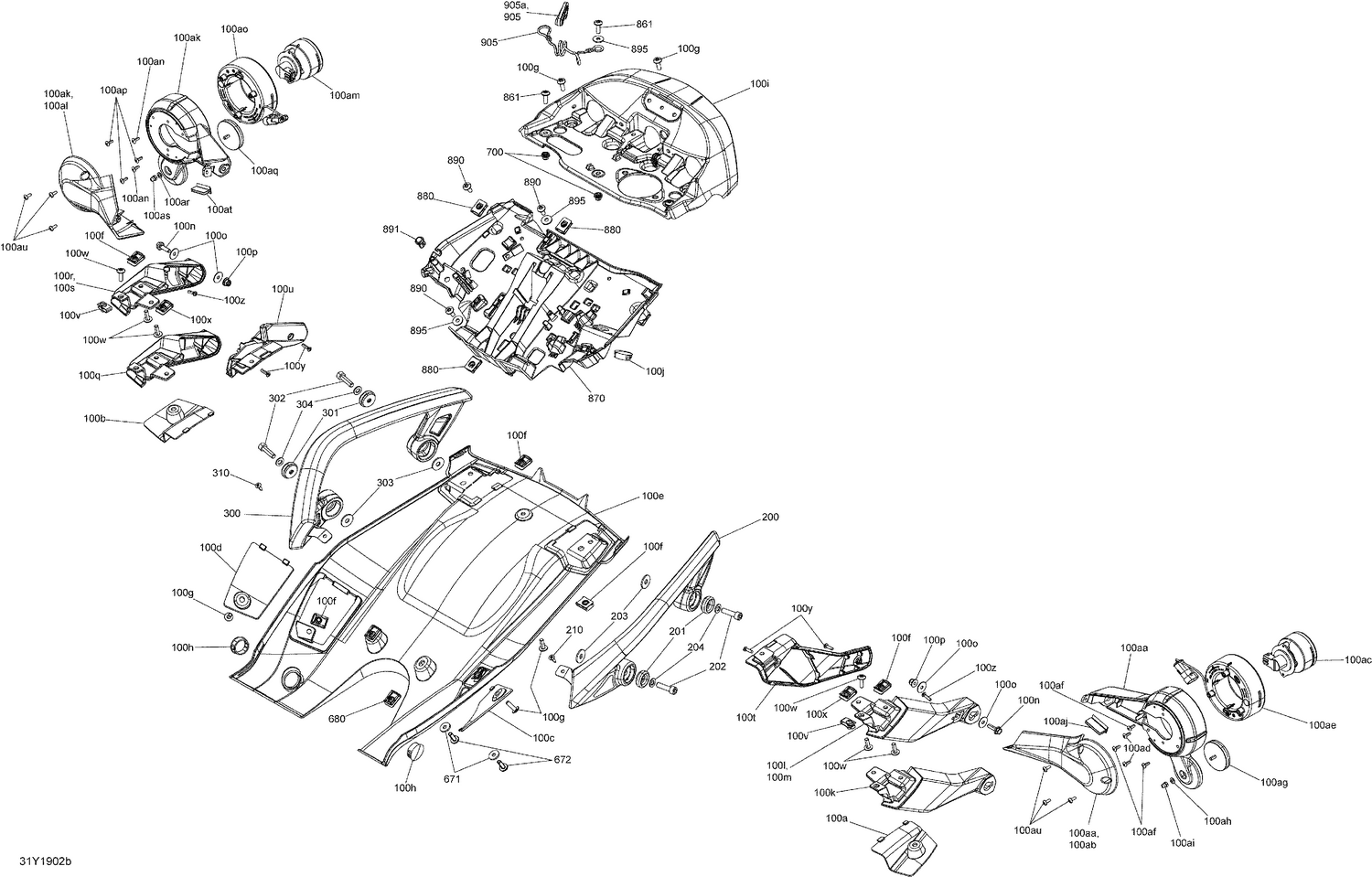

09- Body And Accessories Cargo
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 100aa | 708002232 | LH Housing Ass'y |
| 100ab | 708002232 | LH Housing Ass'y |
| 100ac | 710004057 | Rear Flasher |
| 100ad | 250000577 | Torx Truss Screw K40 X 12 |
| 100ae | 710004056 | Rear Light |
| 100af | 250000577 | Torx Truss Screw K40 X 12 |
| 100ag | 705011221 | Red Reflector |
| 100ah | 234051670 | Flat Washer M5 |
| 100ai | 250100152 | Cap Nut M5 |
| 100aj | 219704371 | Neoprene Seal 3000 mm Long |
| 100ak | 708002233 | RH Housing Ass'y |
| 100al | 708002233 | RH Housing Ass'y |
| 100am | 710004057 | Rear Flasher |
| 100an | 250000577 | Torx Truss Screw K40 X 12 |
| 100ao | 710004056 | Rear Light |
| 100ap | 250000577 | Torx Truss Screw K40 X 12 |
| 100aq | 705011221 | Red Reflector |
| 100ar | 234051670 | Flat Washer M5 |
| 100as | 250100152 | Cap Nut M5 |
| 100at | 219704371 | Neoprene Seal 3000 mm Long |
| 100c | 708301513 | LH Front Cap |
| 100d | 708301514 | RH Front Cap |
| 100e | 708001415 | Under Tail Cover |
| 100f | 250100208 | Panel Nut M6 X 1.0 |
| 100g | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 100h | 414916600 | Black, Nylon Cap |
| 100i | 708002814 | Taillight Support |
| 100j | 414916600 | Black, Nylon Cap |
| 100m | 708002222 | LH Flasher Support |
| 100s | 708002223 | RH Flasher Support |
| 200 | 708003456 | LH Rear Holding Handle This part replaces 708001413. |
| 201 | 708302461 | Bushing |
| 202 | 250000823 | Socket Head Screw M8 X 30, Scotch Grip |
| 203 | 234082410 | Flat Washer 8 mm |
| 204 | 234081670 | Stainless Steel Flat Washer 8 mm |
| 210 | 414745900 | Tuflock Phillips Plastic Screw |
| 300 | 708003457 | RH Rear Holding Handle This part replaces 708001414. |
| 301 | 708302461 | Bushing |
| 302 | 250000823 | Socket Head Screw M8 X 30, Scotch Grip |
| 303 | 234082410 | Flat Washer 8 mm |
| 304 | 234081670 | Stainless Steel Flat Washer 8 mm |
| 310 | 414745900 | Tuflock Phillips Plastic Screw |
| 671 | 234062670 | Stainless Steel Flat Washer |
| 672 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 680 | 250100208 | Panel Nut M6 X 1.0 |
| 700 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 861 | 250000722 | Torx Screw M6 X 20 |
| 870 | 708301698 | Cargo Rear Support |
| 880 | 250100208 | Panel Nut M6 X 1.0 |
| 890 | 250000881 | Torx Truss M8 X 16 |
| 891 | 293150230 | Tuflok Plastic Rivet |
| 895 | 250200164 | Flat washer M6 |
