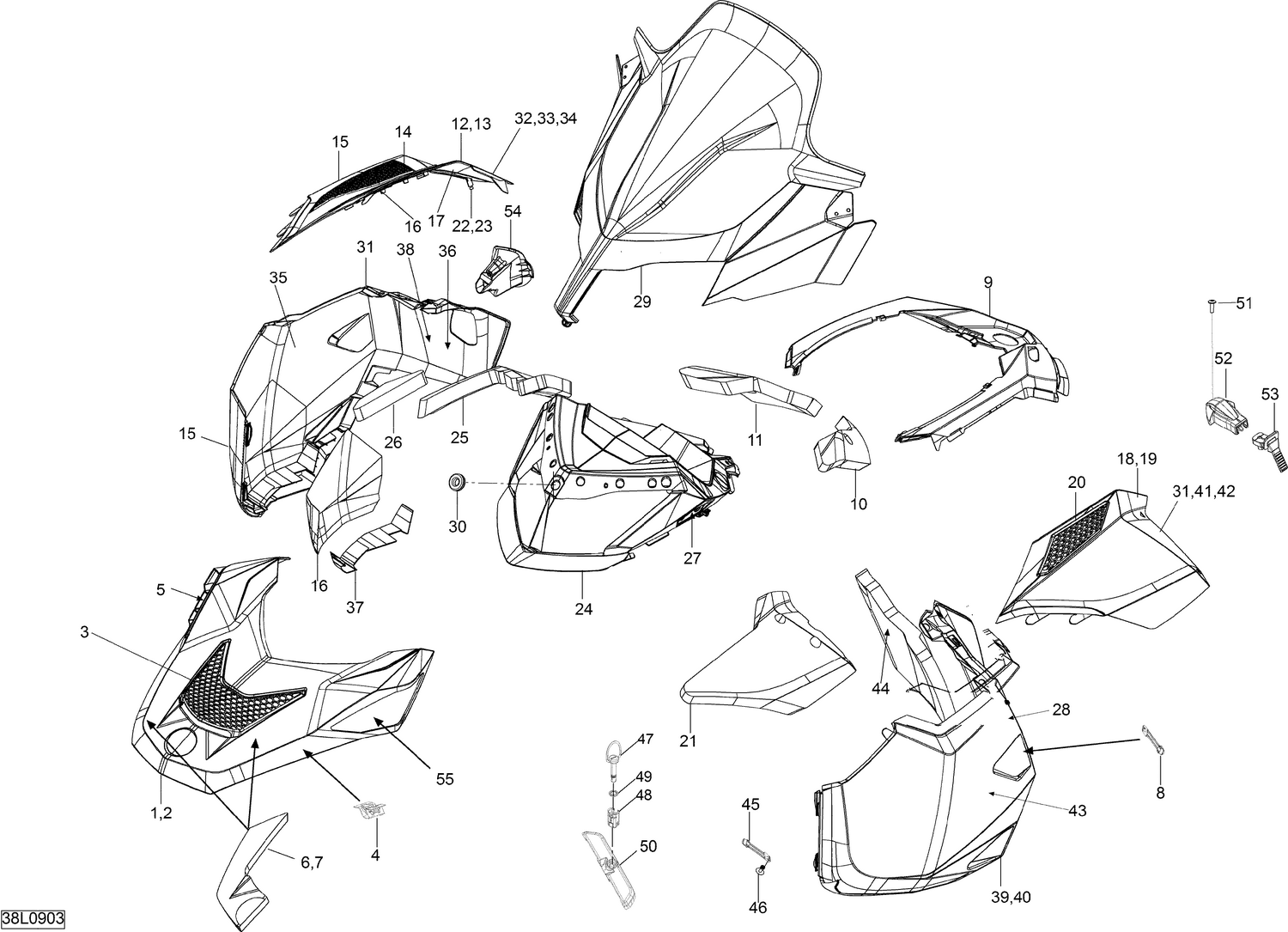

09- Hood — Parts Catalog

Parts (48)

Ref	Part Number	Description
2	517304249	Hood
3	517304843	Hood grill front This part replaces 517303892.
4	517302785	Lock
5	517306980	Scoop Grill This part replaces 517304155.
6	517304330	Isolation L.H.
7	517304214	Isolation R.H.
8	517304289	Latch
9	517304819	Black Console This part replaces 517304026.
10	517304317	INSULATOR - Call your local BRP dealership
11	517304318	Isolation R.H.
13	517304248	Side panel upper R.H.
14	517304015	Acces panel grill R.H.
15	517304016	Sidepanel grill lower R.H.
16	517304311	Isolation
17	517304312	Isolatioan
19	517304689	Side panel upper L.H.
20	517303893	Sidepanel grill L.H.
21	517304313	Isoltion
22	517304295	ADAPTER - Call your local BRP dealership
23	250000720	Torx Screw K50 X 16 This part replaces 250000146.
24	517304272	Indicator Support
25	517304314	Isolation
26	517304315	Isolation
27	517304316	Isolation
28	517304319	Isolation
30	517303756	Grommet
32	293150108	Pop Rivet 3/16” This part replaces 293150108.
33	250000725	Screw M4 X 16 This part replaces 250000113.
34	517124300	Washer
35	517303890	Isolation R.H.
36	517304310	Isolation rear R.H.
37	517304215	Heat protector
38	517304216	Heat protector
39	517303851	Sidepanel L.H. ass'y
40	517303853	Sidepanel L.H.
41	506152156	Sleeve
42	517124300	Washer
43	517303891	Isolation L.H.
44	517304309	Isolation rear L.H.
45	517304290	Latch
46	293150108	Pop Rivet 3/16” This part replaces 293150108.
47	517304296	Pin fastening
48	517304297	Pin fastener
49	517304298	LOCKING PLATE - Call your local BRP dealership
51	36005	Rivet
52	517304075	End piece
53	517303981	Latch-panel
54	517304322	Console R.H. This part replaces 517303674.
