Home / BRP / Can-Am ATV / 2001 / Traxter XL / Traxter XL, 7448, 2001 / 01- Clutch Housing And Cover

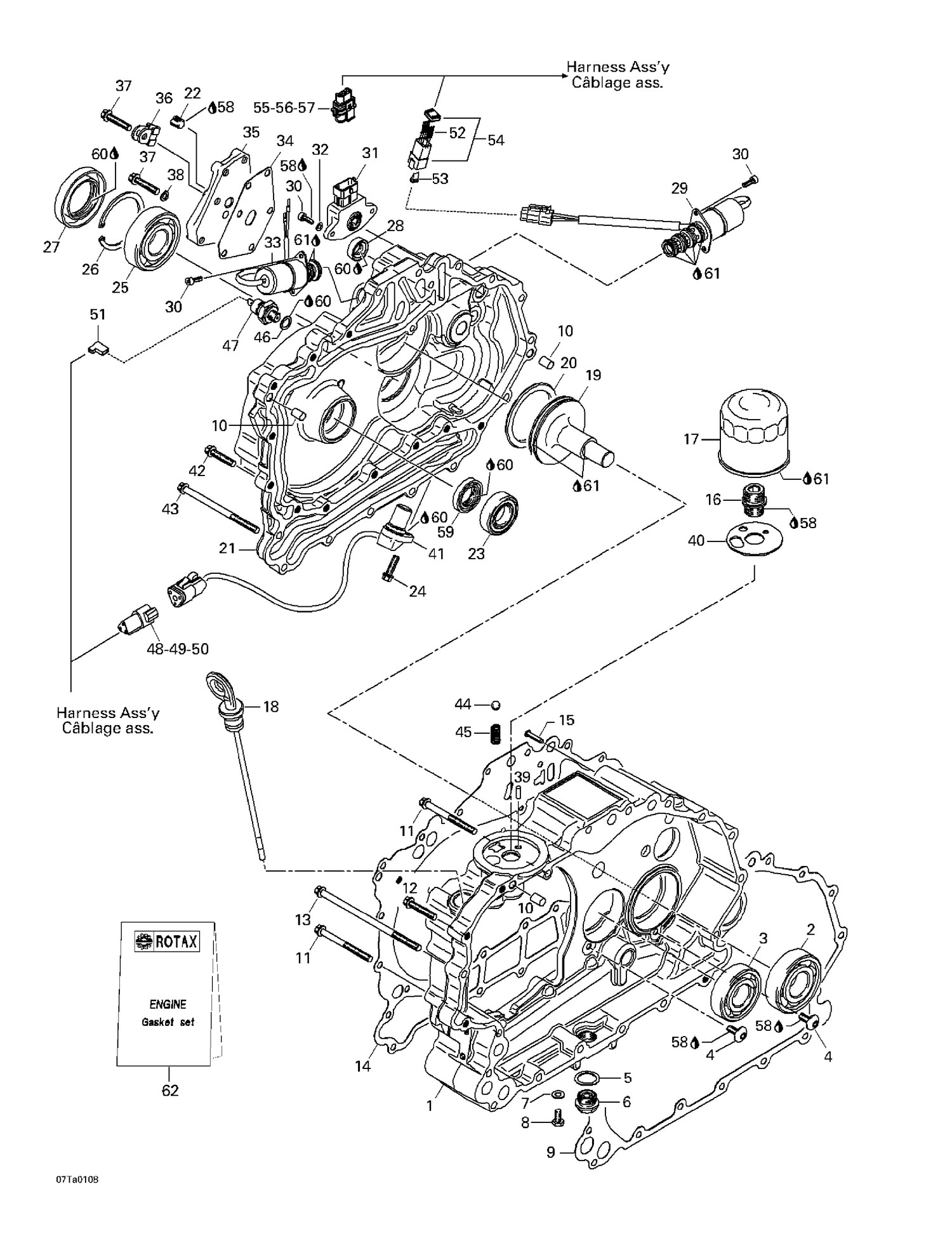

01- Clutch Housing And Cover

01- Clutch Housing And Cover

Parts (60)

RefPart NumberDescription
1 711211921 Clutch Housing
2 420932822 Ball Bearing This part replaces 420932825.
3 711632200 Ball Bearing
4 711241531 Flat Head Screw M6 x 16
5 420552280 Crush Washer This part replaces 711552280.
6 420840278 Drain Plug M18 X 1.5 This part replaces 711840277.
7 404146600 Sealing Washer
8 711241751 Hex. Flange Screw M6 x 16
9 711650582 Clutch HousingGasket
10 420632010 Center Pin 8 X 12 This part replaces 290632010.
11 711940576 Hex. Flange Screw M6 x 70
12 711941126 Hex. Flange Screw M6 x 35
13 711640371 Hex. Flange Screw M6 x 130
14 711650592 Clutch Cover Gasket
15 711229170 Groove Pin M4 x 20
16 711924420 Oil Filter Nipple
17 420256623 FILTER OIL - Call your local BRP dealership This part replaces 711256620.
18 711256610 Oil Dipstick
20 711650550 K-Grooved Ring
21 711211811 Clutch Cover
22 420240480 PLUG SCREW - Call your local BRP dealership
23 711232190 Ball Bearing 6304
24 711241861 Hex. Flange Screw M6 x 20
25 420932822 Ball Bearing This part replaces 420932825.
26 711445070 RETAINING RING - Call your local BRP dealership
27 420650682 Oil Seal This part replaces 711650680.
28 420250455 Oil Seal This part replaces 711250455.
29 711256550 Soleno‹d Valve
30 420440291 SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership This part replaces 711440291.
31 711265600 Potentiometer (Sub Transmission)
32 420244072 Flat Washer 4 This part replaces 420244073.
33 711256560 Pressure Valve
34 711650620 Gasket
35 711211935 Oil Duct Cover
36 414176000 Open Clamp This part replaces 711853412.
37 711241941 Hex. Flange Screw M6 x 30
38 420230415 Seal Washer This part replaces 711230415.
39 711232710 NEEDLE PIN - Call your local BRP dealership
40 711627370 Oil Filter Washer
41 420265727 Camshft Position Sensor Ass'y This part replaces 711265622.
42 711241941 Hex. Flange Screw M6 x 30
43 711640361 Hex. Flange Screw M6 x 100
44 711232370 Ball
45 711238050 Spring
46 420230150 Oil Seal This part replaces 711230150.
47 710000313 OIL PRESSURE SWITCH - Call your local BRP dealership This part replaces 711256640.
48 Not Available As Spare Part - Male Housing Deutch
49 278000631 Male Terminal
50 409207600 Male Lock, 3 Circuits
51 409010300 Female Terminal
52 409014800 MALE TERMINAL - Call your local BRP dealership
53 710000046 MALE LOCK, 4 CIRCUITS - Call your local BRP dealership
54 710000045 MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership
55 278000997 Male Housing, 3 Circuits
56 278000999 Wire Seal
57 278000998 Female Terminal
58 293800060 Loctite 243, 10 ml
59 420930392 Oil Seal This part replaces 290930390.
60 413707000 Dow Corning 111, 150 g
61 Not Available As Spare Part - Engine Oil
