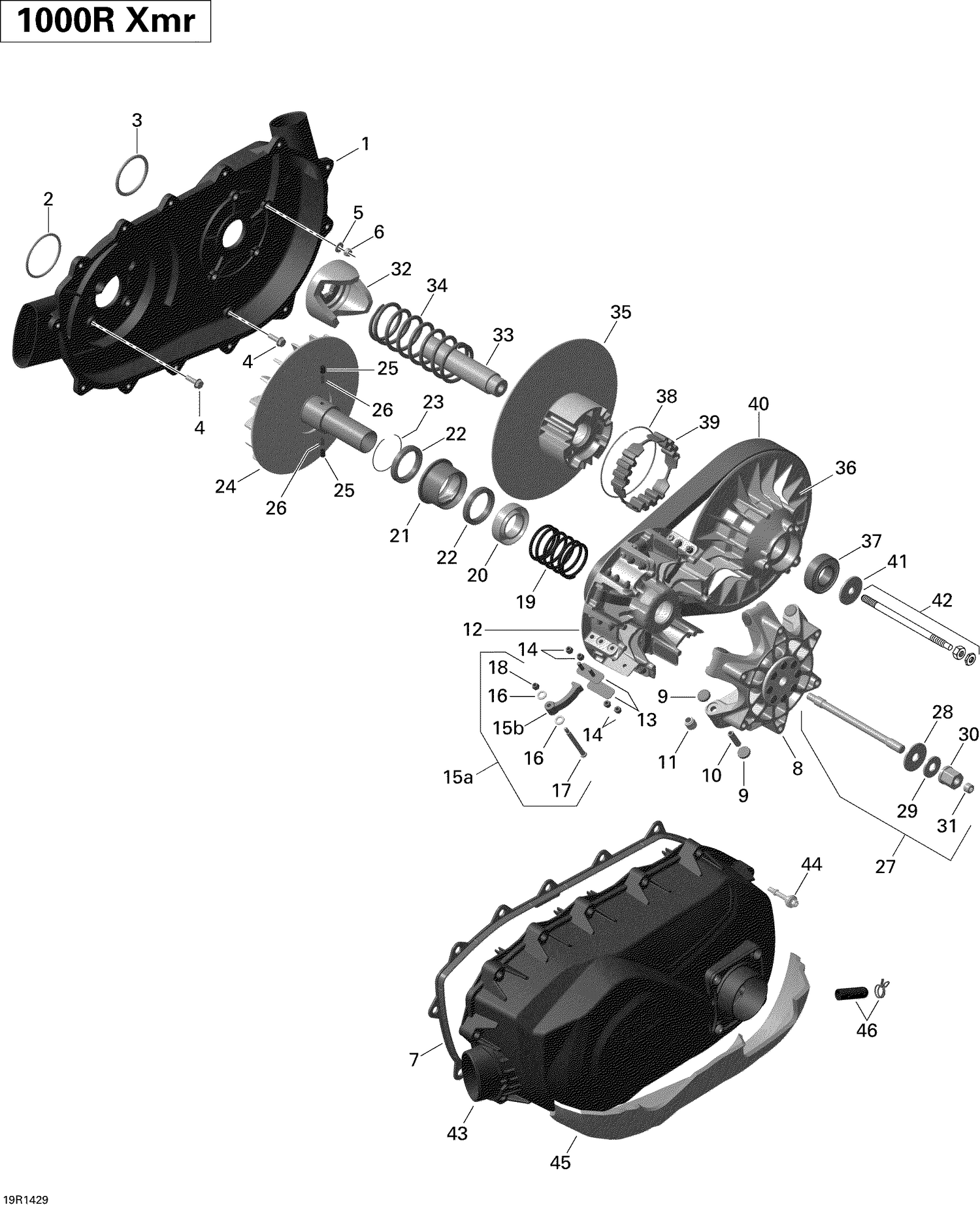

05- Transmission _19R1429
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420612304 | CVT Air Guide This part replaces 420611408. |
| 2 | 420430409 | O-Ring This part replaces 420430408. |
| 3 | 420631089 | O-Ring This part replaces 420631088. |
| 4 | 420441311 | Hex.Screw M6 X 20 |
| 5 | 224061121 | Flat Washer |
| 6 | 232561434 | Elastic Stop Nut M6 |
| 7 | 420430126 | Gasket |
| 9 | 420281296 | Slider Shoe Set |
| 10 | 417223257 | Roller Axle |
| 11 | 420229999 | Roller |
| 13 | 420651763 | Slide Plate |
| 14 | 232551414 | Elastic Stop Nut M5 |
| 15b | Not | Available As Spare Part - Lever |
| 16 | Not | Available As Spare Part - Thrust Washer |
| 17 | Not | Available As Spare Part - Screw |
| 18 | Not | Available As Spare Part - Lock Nut M5 |
| 19 | 420238615 | Compression Spring, Drive Pulley |
| 20 | 420627578 | Seat Spring This part replaces 420627577. |
| 21 | 420657370 | Drive Pulley Clutch |
| 22 | 420632377 | Ball Bearing |
| 23 | 420245951 | Retaining Ring |
| 24 | 420280577 | Inner Half |
| 25 | 420229577 | Spring Sleeve |
| 26 | 420239134 | Spring |
| 28 | 420427061 | Washer 40 MM This part replaces 420282830. |
| 29 | 420427054 | Washer 30 MM This part replaces 420282820. |
| 30 | Not | Available As Spare Part - Collar Nut |
| 31 | Not | Available As Spare Part - Screw |
| 32 | 420280475 | Cam This part replaces 420280474. |
| 33 | 420220914 | Driven Pulley Shaft |
| 34 | 420238176 | Compression Spring |
| 35 | 420280188 | Inner Half Pulley |
| 37 | 420932421 | Ball Bearing |
| 38 | 420245911 | Retaining Ring This part replaces 420245910. |
| 39 | 420660124 | Torque Gear |
| 40 | 422280367 | V Belt This part replaces 715900212. |
| 41 | 420627594 | Thrust Washer This part replaces 420627590. |
| 42 | 703500865 | Driven Pulley Screw Kit |
| 43 | 420212286 | Variator Cover Ass'y This part replaces 420612319. |
| 44 | 420440568 | Hex Screw M6 X 30 This part replaces 420440567. |
| 45 | 715900313 | Heat Protection Mat This part replaces 420975053. |
