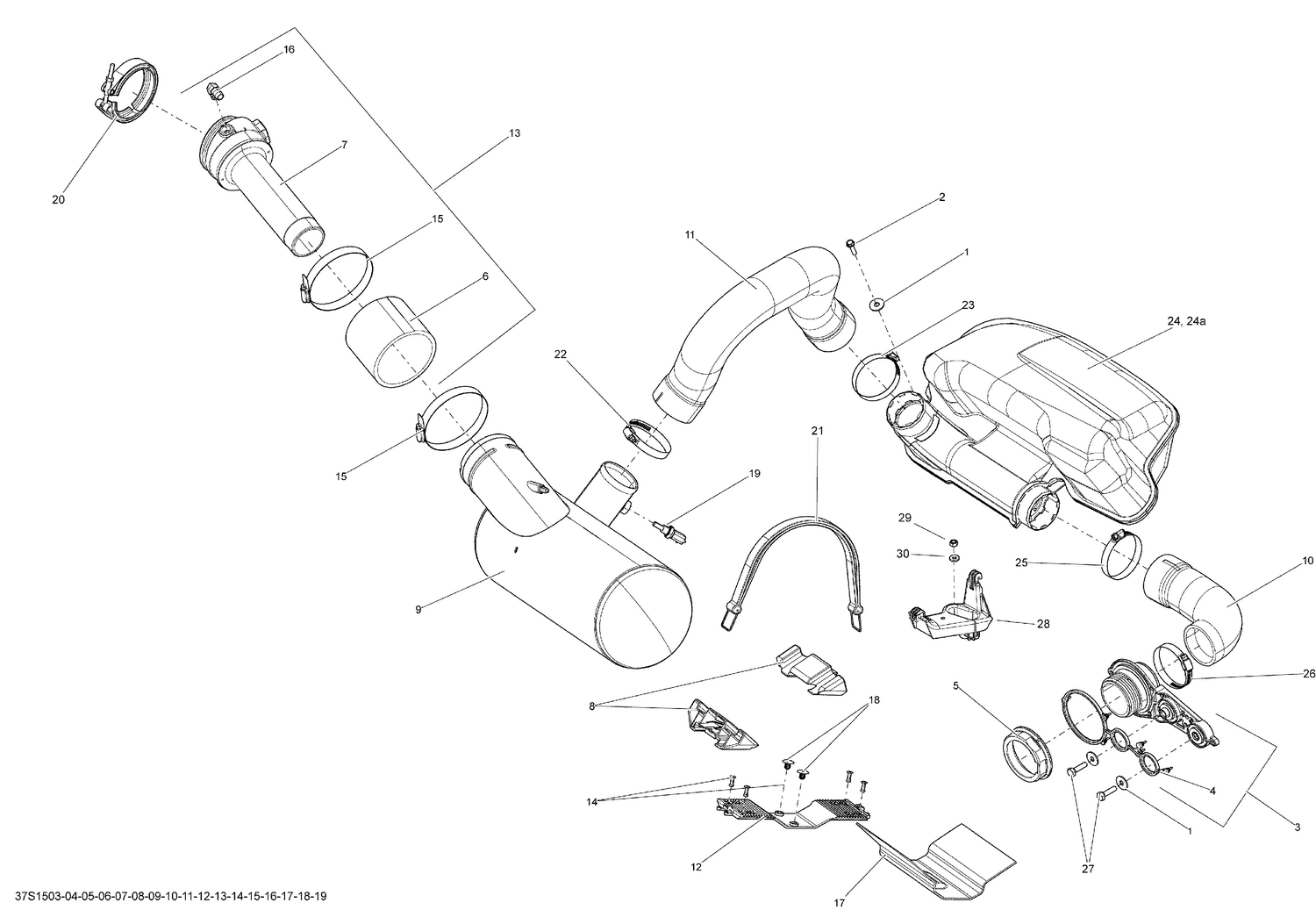

01- Exhaust System _37S1504
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 234082600 | Flat Washer 8 mm, Stainless |
| 2 | 243162560 | Hex. Flange Screw M6.81 X 25, Plastite |
| 3 | XXX | Not Available As Spare Parts |
| 4 | XXX | Not Available As Spare Parts |
| 5 | XXX | Not Available As Spare Parts |
| 6 | 274001348 | Hose |
| 7 | 423462834 | NEEDS DESCRIPTION This part replaces 274001354. |
| 8 | 274001721 | Stopper This part replaces 274001358. |
| 9 | 274001648 | Muffler This part replaces 274001384. |
| 10 | 274001711 | Exhaust Hose This part replaces 274001423. |
| 11 | 274001714 | Front Formed Exhaust Pipe This part replaces 274001458. |
| 12 | 274001479 | Exhaust Muffler Support |
| 13 | 274001489 | Head Pipe Ass'y |
| 14 | 293150043 | Pop Rivet 3/16" |
| 15 | 293650202 | Gear Clamp |
| 16 | 293700023 | Elbow Fitting 90° |
| 17 | 293830153 | Pad Rubber |
| 18 | 414939500 | Dart |
| 19 | 278002895 | Temperature Sensor |
| 20 | 274001417 | Exhaust Clamp |
| 21 | 293850093 | Fuel Tank Strap This part replaces 293850111. |
| 22 | 293650179 | Tridon Clamp |
| 23 | 293650179 | Tridon Clamp |
| 24a | 219704364 | Neoprene Seal (1PAC=3M) |
| 25 | 293650179 | Tridon Clamp |
| 26 | 293650179 | Tridon Clamp |
| 27 | XXX | Not Available As Spare Parts |
