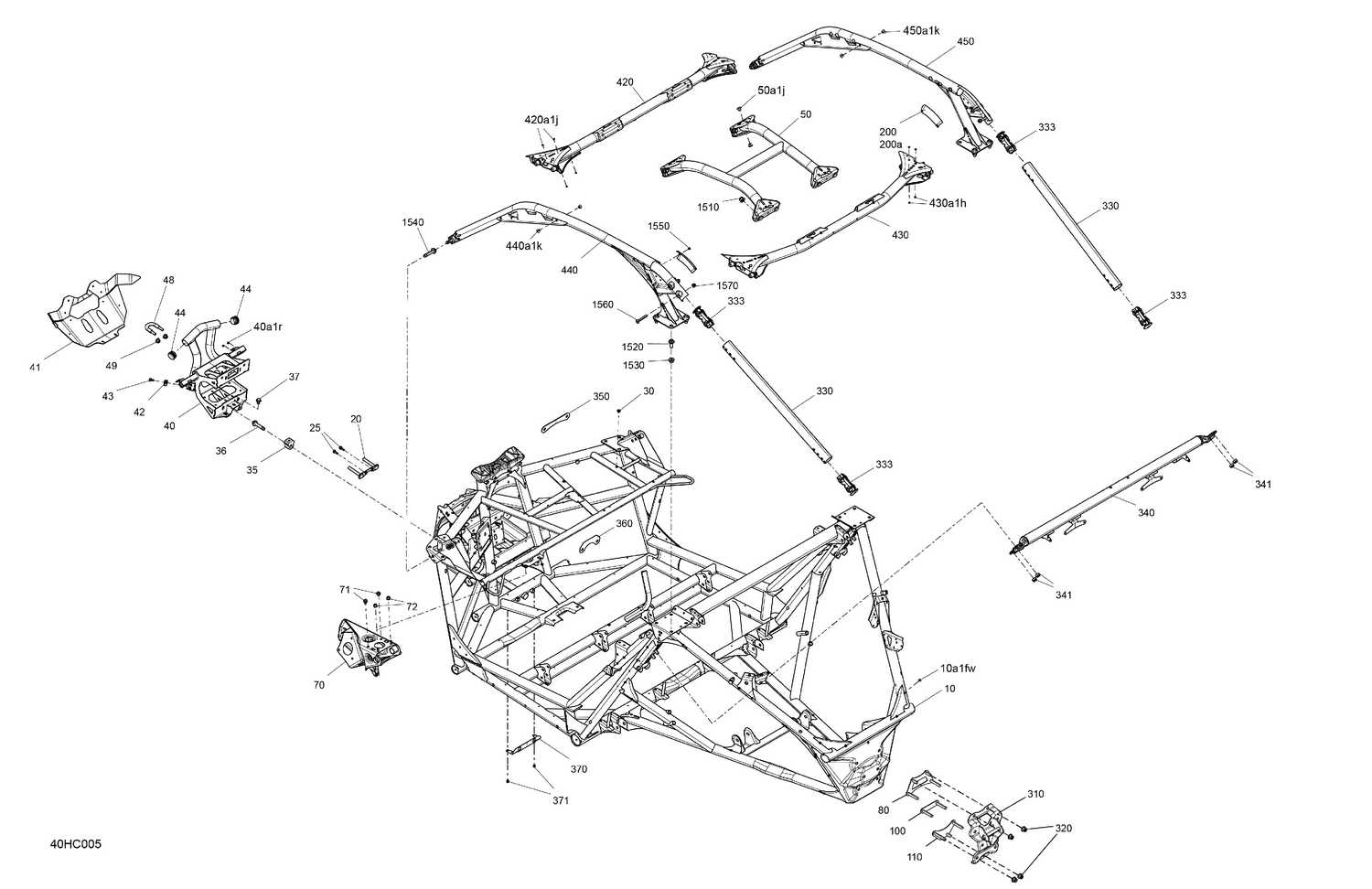

06- Frame - System
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 10a1fw | 390402200 | Pop Rivet 3/16" |
| 20 | 705211561 | Front Plate This part replaces 705207424. |
| 25 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 30 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 35 | 705206992 | Bumper Link |
| 36 | 250000857 | Flange Screw M12 X 60 |
| 37 | 250000060 | Flange Screw M10 X 16, Scotch Grip |
| 41 | 715006996 | Front Master Plate |
| 42 | 250100198 | Panel Nut M6 X 1.0 |
| 43 | 250000722 | Torx Screw M6 X 20 |
| 44 | 705202455 | Cap |
| 48 | 705206983 | U-Clamp |
| 49 | 233201436 | Hex. Flange Elastic Nut M10 |
| 50a1j | 390402200 | Pop Rivet 3/16" |
| 70 | 705206924 | DPS Support |
| 71 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 72 | 233281416 | Hex. Elastic Flange Nut M8 |
| 80 | 705211557 | Rear Upper Plate This part replaces 705210278. |
| 100 | 705211558 | Rear Central Plate This part replaces 705210281. |
| 110 | 705211556 | Rear Lower Plate This part replaces 705210275. |
| 310 | 715008492 | Junction Plate Kit |
| 320 | 250001195 | Elastic Flange Nut M12 |
| 333 | 705210648 | Sleeve |
| 340 | 705210001 | Safety Belt Anchorage |
| 341 | 232521416 | Elastic Stop Nut M12 |
| 350 | 705211552 | Connecting Plate This part replaces 705207425. |
| 360 | 705210249 | Retaining Plate |
| 370 | 706203122 | Support |
| 371 | 390402200 | Pop Rivet 3/16" |
| 420a1j | 390402200 | Pop Rivet 3/16" |
| 430a1h | 390402200 | Pop Rivet 3/16" |
| 440a1k | 390402200 | Pop Rivet 3/16" |
| 450a1k | 390402200 | Pop Rivet 3/16" |
| 1510 | 250001195 | Elastic Flange Nut M12 |
| 1520 | 207523056 | Hex. Flange Screw M12 X 30, Scotch Grip |
| 1530 | 250001195 | Elastic Flange Nut M12 |
| 1540 | 250000857 | Flange Screw M12 X 60 |
| 1550 | 293150102 | Rivet 3/16" |
| 1560 | 250000901 | Torx Truss M8 X 65 |
