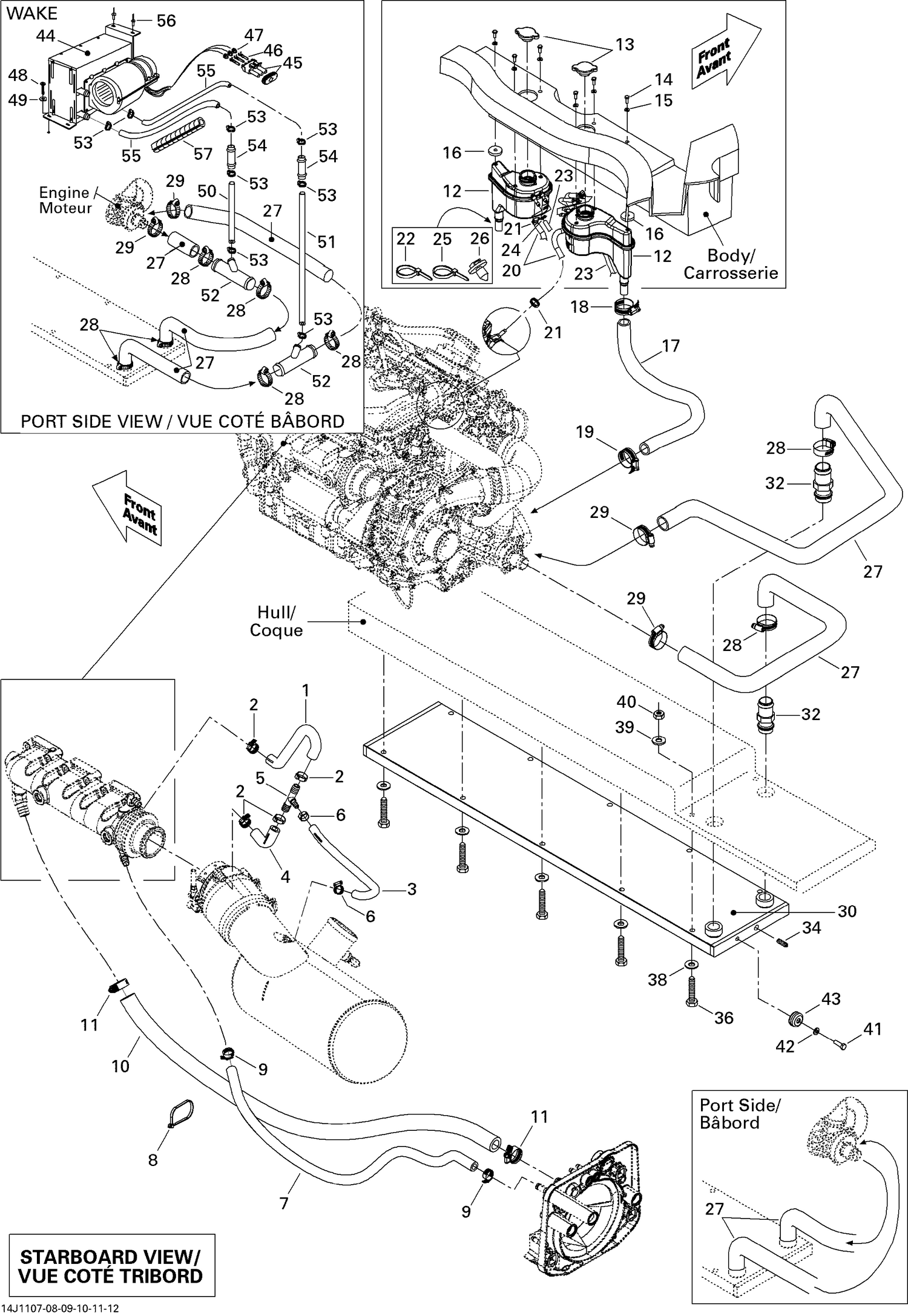

01- Cooling System
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 276000484 | Hose, Bypass Upper This part replaces 276000244. |
| 2 | 293650172 | Tridon Gear Clamp |
| 3 | 276000246 | Formed Hose |
| 4 | 276000455 | Hose, Bypass Lower This part replaces 276000245. |
| 5 | 293710116 | T-Fitting |
| 6 | 293650171 | Tridon Gear Clamp |
| 7 | 219704394 | Was 276000001 Hose 12.5 mm |
| 8 | 293750008 | Tie Wrap 368 mm |
| 9 | 293650172 | Tridon Gear Clamp |
| 10 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 11 | 293650051 | Tridon Gear Clamp |
| 12 | 276000265 | Coolant Tank |
| 13 | 276000100 | Pressure Cap |
| 14 | 205062560 | Socket Head Screw M6 X 25 |
| 15 | 234062600 | Flat Washer M6, Stainless |
| 16 | 705202084 | SPACER - Call your local BRP dealership |
| 17 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 18 | 293650051 | Tridon Gear Clamp |
| 19 | 293650019 | Tridon Gear Clamp |
| 20 | 219704357 | Was 275500549 Hose 1/4" |
| 21 | 293650025 | Oetiker Gear Clamp |
| 22 | 293750002 | Tie Wrap 142 mm |
| 23 | 219704410 | Polyurethane Hose 10000Mm Long |
| 24 | 293750001 | Tie Wrap 94 mm |
| 25 | 293750002 | Tie Wrap 142 mm |
| 26 | 293730040 | Mount Dart |
| 27 | 204061380 | RUBBER HOSE, PORT - Call your local BRP dealership |
| 28 | 293650045 | Tridon Gear Clamp |
| 29 | 293650045 | Tridon Gear Clamp |
| 30 | 204300255 | HEAT EXCHANGER - Call your local BRP dealership |
| 32 | 204300133 | Hose Fitting - Call your local BRP dealership |
| 34 | 211500001 | Pipe Plug Socket Head 1/8-27 Npt |
| 36 | 205405060 | SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership |
| 38 | 234000600 | Flat Washer 10 mm, Stainless |
| 39 | 234002600 | Flat Washer 10 mm, Stainless |
| 40 | 232001600 | HEX. NUT M10 - Call your local BRP dealership |
| 41 | 207362060 | Hex. Screw M6 X 20, Scotch Grip |
| 42 | 234061600 | Stainless Flat Washer M6 |
| 43 | 271001813 | Anode Zinc This part replaces 271001487. |
