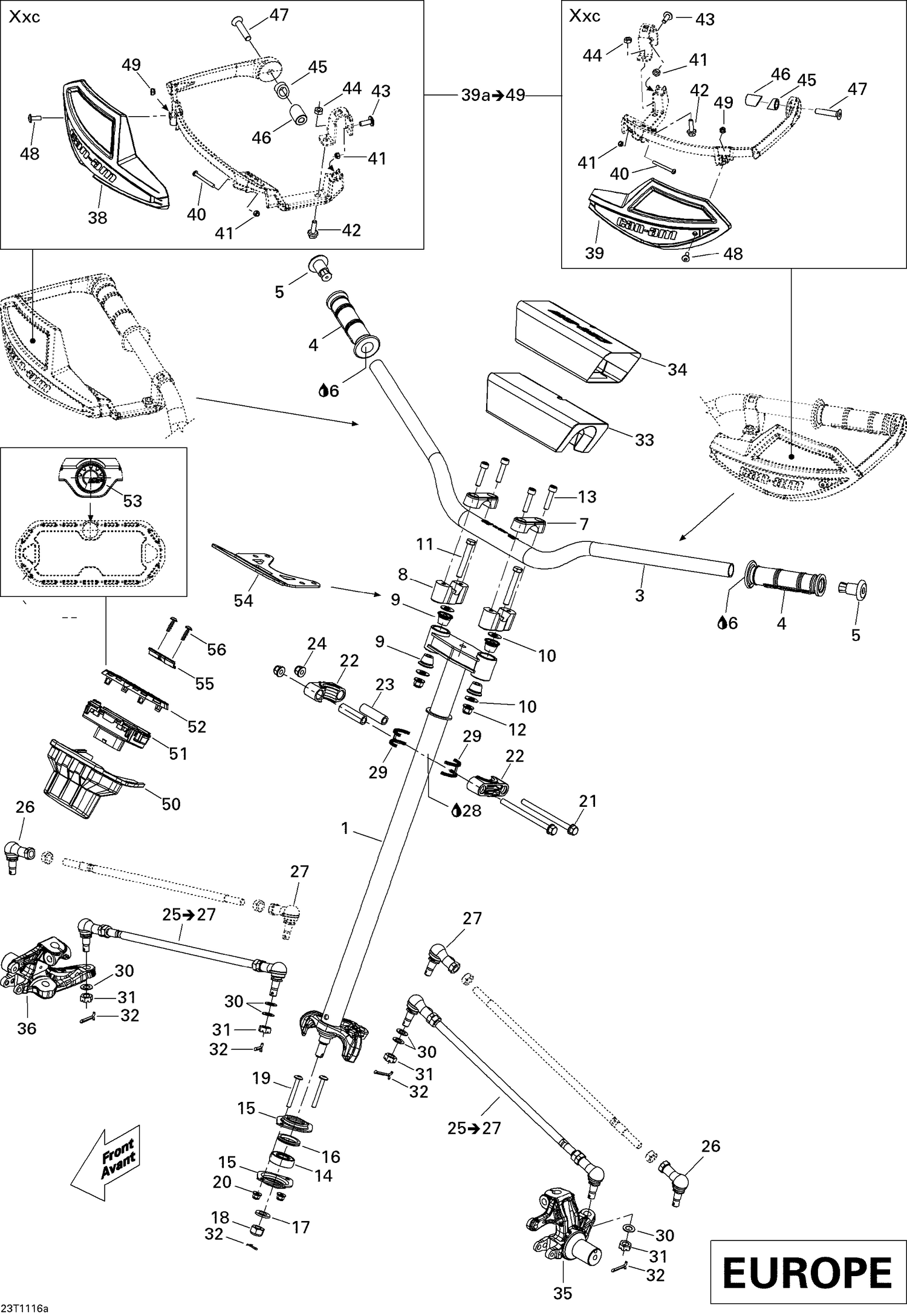

| Ref | Part Number | Description |
|---|
| 1 |
709400805 |
STEERING COLUMN - Call your local BRP dealership This part replaces 709400604. |
| 3 |
709400668 |
HANDLE BAR ALUMINUM - Call your local BRP dealership |
| 4 |
709400493 |
Handle Grip |
| 5 |
709400627 |
END PIECE - Call your local BRP dealership |
| 6 |
293800100 |
Loctite 406, 7 Oz |
| 7 |
709400496 |
Support |
| 8 |
709400592 |
ALUMINUM SUPPORT - Call your local BRP dealership |
| 9 |
293830131 |
DAMPER BUSHING - Call your local BRP dealership |
| 10 |
506152194 |
Washer |
| 11 |
250001024 |
Screw Hex. M10 X 70 This part replaces 250000291. |
| 12 |
232501416 |
Elastic Flange Nut M10 |
| 13 |
205083534 |
Socket Head Screw |
| 14 |
709400439 |
Ball Bearing |
| 15 |
709400468 |
THRUST WASHER - Call your local BRP dealership |
| 16 |
293250177 |
Seal |
| 17 |
234021430 |
Flat Washer |
| 18 |
250100090 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 19 |
250000317 |
Torx Screw M6 X 50 |
| 20 |
233261434 |
Flange Elastic Nut M6 |
| 21 |
230681034 |
Hex. Flange Screw M8 X 110 |
| 22 |
709400471 |
Half Bushing |
| 23 |
709400072 |
BUSHING - Call your local BRP dealership |
| 24 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 26 |
715900053 |
BALL JOINT - Call your local BRP dealership |
| 27 |
715900052 |
BALL JOINT - Call your local BRP dealership |
| 28 |
293550010 |
Synthetic Grease, 400 G |
| 29 |
293300120 |
HALF-SEAL - Call your local BRP dealership |
| 30 |
250200084 |
Flat Washer |
| 31 |
250100094 |
CASTLE NUT - Call your local BRP dealership |
| 32 |
250400034 |
Cotter Pin |
| 33 |
709400422 |
Foam |
| 34 |
709400423 |
Cover |
| 35 |
709400346 |
LH KNUCKLE - Call your local BRP dealership |
| 36 |
709400348 |
RH KNUCKLE - Call your local BRP dealership |
| 38 |
XXX |
Not Available As Spare Parts |
| 39 |
XXX |
Not Available As Spare Parts |
| 40 |
XXX |
Not Available As Spare Parts |
| 41 |
XXX |
Not Available As Spare Parts |
| 42 |
XXX |
Not Available As Spare Parts |
| 43 |
XXX |
Not Available As Spare Parts |
| 44 |
XXX |
Not Available As Spare Parts |
| 45 |
XXX |
Not Available As Spare Parts |
| 46 |
XXX |
Not Available As Spare Parts |
| 47 |
XXX |
Not Available As Spare Parts |
| 48 |
XXX |
Not Available As Spare Parts |
| 49 |
XXX |
Not Available As Spare Parts |
| 50 |
709400514 |
Speedometer Cover |
| 51 |
710003288 |
Calibrated Speedometer This part replaces 710001526. |
| 52 |
710001183 |
Trim Ring Ass'y |
| 53 |
704904615 |
BRP Logo13 mm This part replaces 704901270. |
| 54 |
709400671 |
INDICATOR SUPPORT - Call your local BRP dealership |
| 55 |
709400573 |
Latch Indicator Cover |
