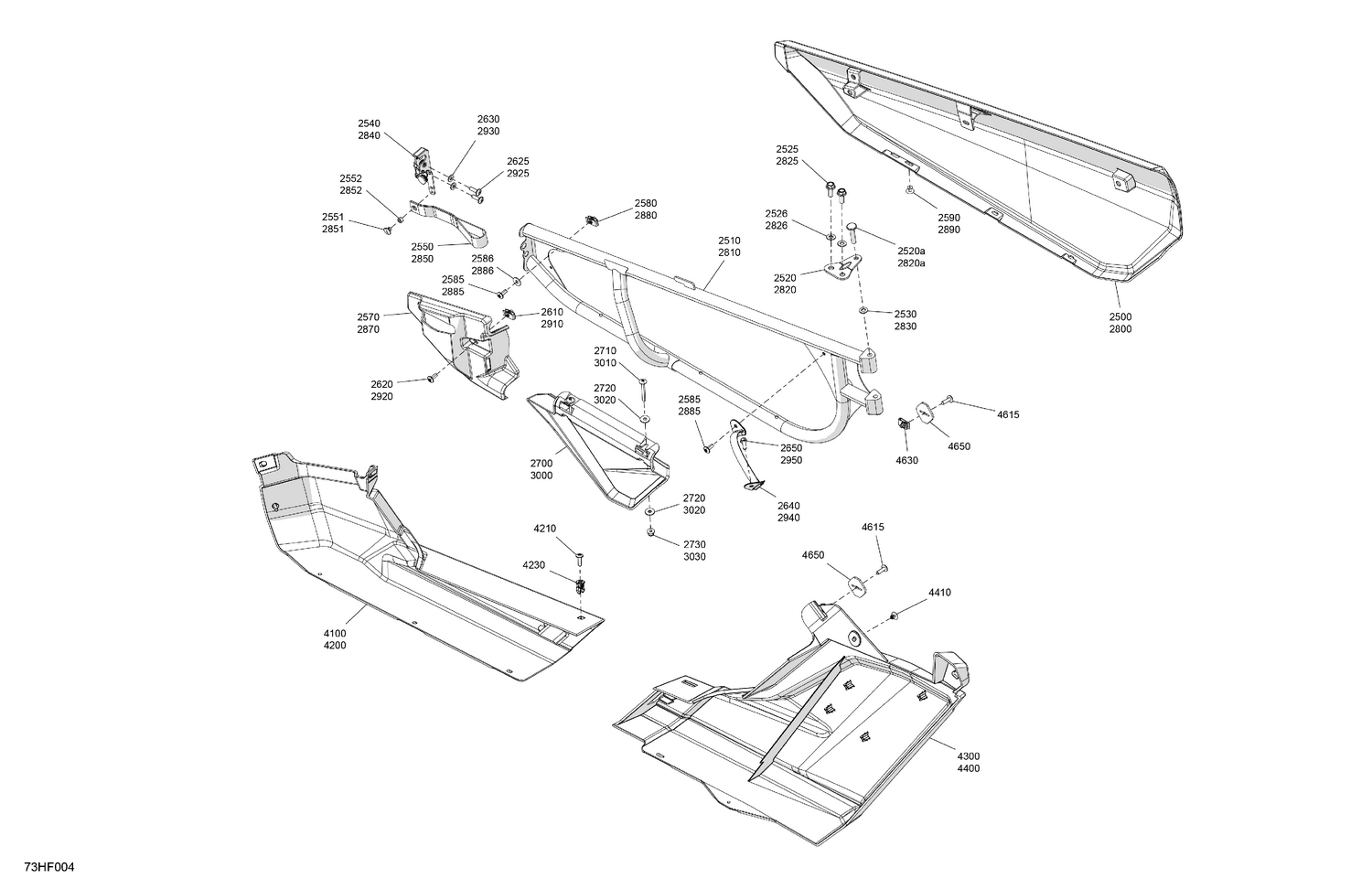

| Ref | Part Number | Description |
|---|
| 2500 |
705012862 |
Black, LH Door Panel |
| 2510 |
705018468 |
Deep Black, LH Front Door |
| 2520a |
XXX |
Not Available As Spare Parts |
| 2525 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 2526 |
234081430 |
Flat Washer M8 |
| 2530 |
234081100 |
Flat Washer 8 mm, Nylon |
| 2540 |
705013095 |
LH Latch |
| 2550 |
293850135 |
Belt |
| 2551 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 2552 |
293900104 |
Bushing |
| 2570 |
705013535 |
LH Latch Cover |
| 2580 |
250100198 |
Panel Nut M6 X 1.0 |
| 2585 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2586 |
234062670 |
Stainless Steel Flat Washer |
| 2590 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 2610 |
250100198 |
Panel Nut M6 X 1.0 |
| 2620 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2625 |
250000786 |
Torx Screw M6 X 20, Scotch Grip |
| 2630 |
224061121 |
Flat Washer |
| 2640 |
705801727 |
Retaining Strap |
| 2650 |
210261050 |
Hex. Forming Screw M6 X 10 |
| 2700 |
705010732 |
LH Lower Door Panel |
| 2710 |
250000749 |
Torx Truss Screw M6 X 50 |
| 2720 |
234062670 |
Stainless Steel Flat Washer |
| 2730 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 2800 |
705012863 |
Black, RH Door Panel |
| 2810 |
705018470 |
Deep Black, RH Front Door |
| 2820a |
XXX |
Not Available As Spare Parts |
| 2825 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 2826 |
234081430 |
Flat Washer M8 |
| 2830 |
234081100 |
Flat Washer 8 mm, Nylon |
| 2840 |
705013096 |
RH Latch |
| 2850 |
293850135 |
Belt |
| 2851 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 2852 |
293900104 |
Bushing |
| 2870 |
705013536 |
RH Latch Cover |
| 2880 |
250100198 |
Panel Nut M6 X 1.0 |
| 2885 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2886 |
234062670 |
Stainless Steel Flat Washer |
| 2890 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 2910 |
250100198 |
Panel Nut M6 X 1.0 |
| 2920 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2925 |
250000786 |
Torx Screw M6 X 20, Scotch Grip |
| 2930 |
224061121 |
Flat Washer |
| 2940 |
705801727 |
Retaining Strap |
| 2950 |
210261050 |
Hex. Forming Screw M6 X 10 |
| 3000 |
705010733 |
RH Lower Door Panel |
| 3010 |
250000749 |
Torx Truss Screw M6 X 50 |
| 3020 |
234062670 |
Stainless Steel Flat Washer |
| 3030 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 4100 |
705009513 |
LH Central Lateral Panel |
| 4200 |
705009514 |
RH Central Lateral Panel This part replaces 705009514. |
| 4210 |
250000722 |
Torx Screw M6 X 20 |
| 4230 |
705016606 |
Insert |
| 4300 |
705010676 |
LH Rear Lateral Panel |
| 4400 |
705010677 |
Deep Black, RH Rear Lateral Panel |
| 4410 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 4615 |
250000722 |
Torx Screw M6 X 20 |
| 4630 |
250100198 |
Panel Nut M6 X 1.0 |
