Home / BRP / JOHNSON / 1971 / 40 / 40E71B 1971 / EXHAUST HOUSING

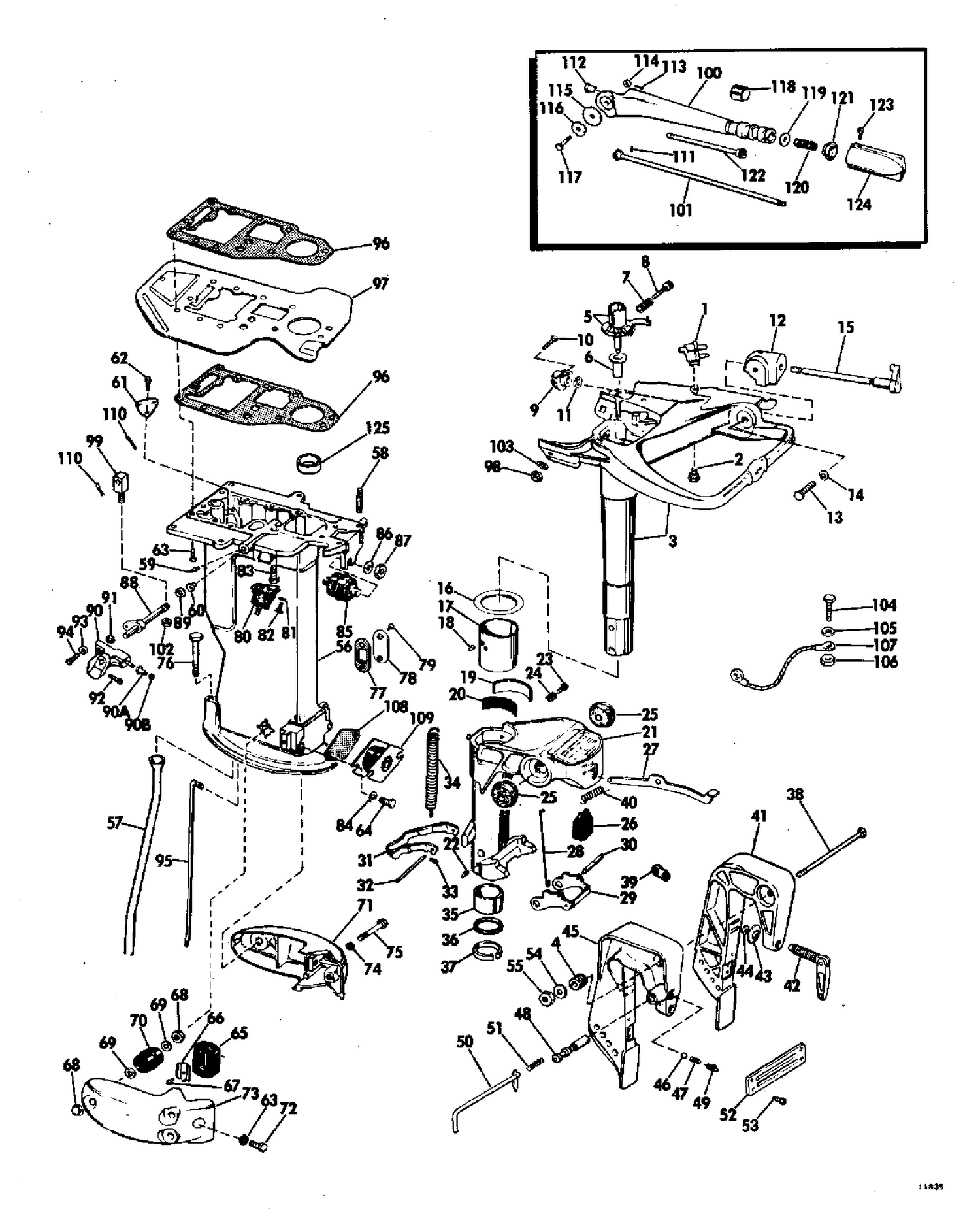

EXHAUST HOUSING

EXHAUST HOUSING

Parts (106)

RefPart NumberDescription
1 0393334 CONNECTEUR, carburant - mâle This part replaces 0376154.
2 0309526 SCREW
3 0378806 STEERING BRACKET
4 0302051 SPRING Tilting bolt
5 0309188 GEAR, Throttle control
6 0303854 BUSHI:NG, Throttle control
7 0309247 RESSORT
8 0304573 SCR., Idle adj.
9 0303142 PINION, Control throttle
10 0303951 SCREW, PIN TO SHAFT
11 0303107 RONDELLE NYLON, barre
12 0305612 COVER, Throttle control
13 0130538 SCREW, Bracket to end
14 0303807 LOCKWASHER
15 0377211 KNOB & SHAFT , Throttle
16 0303867 THRUST WASHER, Pilot shaft
17 0303936 LINER, Swivel bracket, supper
18 0303696 PIN
19 0303928 PLATE, Co-pilot
20 0303929 SPACER, Co-pilot plate
21 0378935 SWIVEL BRACEKT ASSY.
23 0306468 SCREW, Armature plate
25 0302637 WASHER, Conical tilt bolt
26 0305365 BUMBER, Tilting, swivel bracket
27 0303863 ARM, Manual locking elver
28 0303957 LINK, Reverse lock arm
29 0303953 LINK, Reverse lock
30 0303956 CLAMP, Hose, small
31 0303954 LEVER, Locking reverse
32 0303955 ROD, Reverse lock
34 0303971 SPRING, Reverse lock
35 0309075 LINER, Swivel bracket, lower
37 0329170 SPACER, Swivel bracket, lower This part replaces 0309074.
38 0305495 BOLT, Tilting
39 0300364 LINK, Conical, tilt shaft
40 0306265 SPRING, Bolt to arm
41 0395431 STERN BRACKET ASSY., Port This part replaces 0383455.
45 0383460 STERN BRACKET ASSY, Stbd. (includes items 80, 81 & 82)
47 0307455 SPRING
48 0307456 PIN
49 0307457 FITTING, Lube
50 0379485 ROD, Thrust
51 0310377 SPRING, Thrust rid
52 0310378 PLATE, Stern bracket
53 0310379 SCREW
54 0306433 WASHER
55 0305496 LOCKNUT, Alternator to bracket
56 0387535 EXHAUST HOUSING ASSY. This part replaces 0384554.
57 0377060 TUBE WATER
58 0304517 STUD, Cylinder
60 0304791 BUSHING, Front control shaft
61 0328570 COVER, Exhaust hsg. This part replaces 0311614.
62 0311615 SCREW, Cover
63 0316491 SCREW, Anchor block to manifold
65 0554334 BUMPER, Exhaust tube
66 0303961 RETAINER, Bumber
67 0304012 SCREW, Retainer
68 0303890 ACORN NUT, Lower side mount
69 0304168 GASKET, Mount, lower side
70 0303880 MOUNT, Rubber lower side
71 0304446 HOUSING, Lower mount, port
72 0309942 SCREW, Anchor bracket
73 0304447 HOUSING, Lower mount, starboard
74 0307708 RONDELLE GROWER This part replaces 0302865.
75 0304452 SCREW, Mount housing
77 0304023 GASKET, Cover plate
78 0303862 COVER PLATE, Extension LONG SHAFT MODELS
79 0303587 SCRES,Cover plate
80 0380653 MOUNT, Rubber, upper side
81 0303887 WASHEER, Pin to swivel bracket
83 0130167 SCREW, Exh, tube to cylinder
84 0303886 LOCKWASHER
85 0303882 MOUNT, Rubber, upper front
86 0127386 RONDELLE This part replaces 0303913.
87 0363254 NUT, Stern bracket screw This part replaces 0303912.
88 0380501 BRACKET & SHAFT, Shift
90 0380330 HANDLE, Gearshift
90A 0311489 BUSHING
90B 0308776 O-RING
92 0300258 SCREW, Bracket
93 0306407 LOCCKWASHER,Cover latch
94 0300646 VIS, ancrage
95 0316714 SHIFT ROD, Upper
96 0319348 GASKET, Plate This part replaces 0309170.
97 0322988 PLATE, Powerhead This part replaces 0309169.
99 0316715 CONNECTOR
100 0318216 HANDLE This part replaces 0305409.
101 0077944 GEAR & SHAFT, Long
103 0303884 RONDELLE
106 0306342 NUT, Lead screw
107 0376349 FIL, masse
108 0304169 GASKET, Lower front mount
109 0321469 MOUNT, Rubber, lower front This part replaces 0303881.
111 0302709 GROOVE PIN
112 0325074 BUSHING This part replaces 0305100.
113 0302804 COTTER IN
114 0302803 NUT
115 0302703 THRUST WASHER, Handle
116 0302631 SPRING WASHER
117 0302721 SCREW
118 0305712 PLATE
119 0303252 WAHSER, Grip spring
120 0301656 SPRING
121 0303282 BLOCK
122 0377273 GEAR & SHAFT, Short
124 0386266 GRIP & PLATE This part replaces 0381489.
