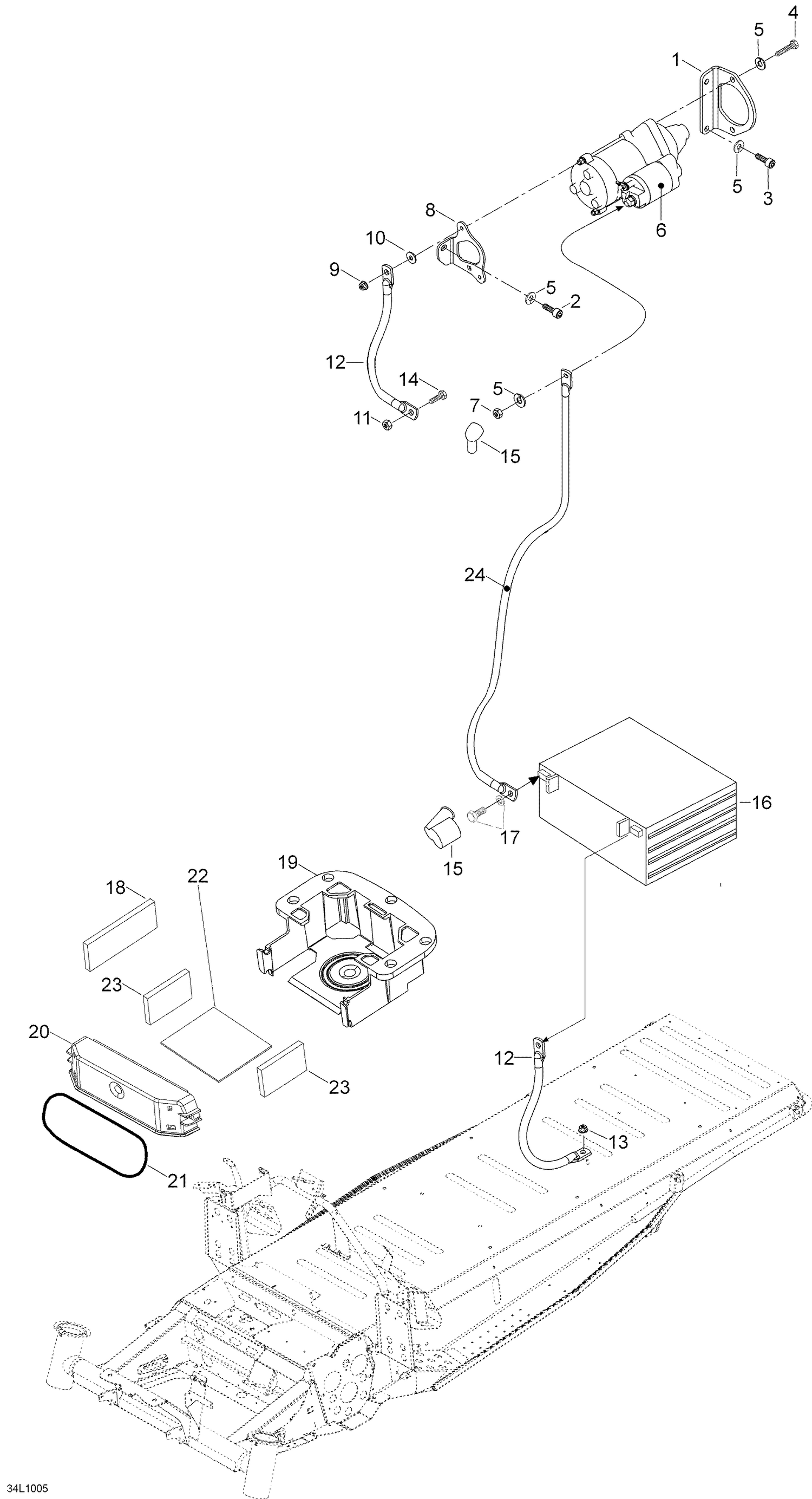

| Ref | Part Number | Description |
|---|
| 1 |
420951415 |
STARTER BRACKET, P.T.O. - Call your local BRP dealership |
| 2 |
40066 |
Allen sc. M8 x 16 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 3 |
40305 |
Socket head screw M8 x 20 |
| 4 |
40036 |
Hex. screw M8 x 20 |
| 5 |
20014 |
Lock washer |
| 6 |
410212400 |
ELECTRIC STARTER ASSY - Call your local BRP dealership |
| 7 |
33003 |
Nut M8 |
| 8 |
420951426 |
STARTER BRACKET, M.A.G. - Call your local BRP dealership |
| 9 |
33009 |
Elastic stop nut M5 |
| 10 |
20008 |
Washer 5,3 mm |
| 11 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 12 |
515175483 |
GROUND WIRE - Call your local BRP dealership |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 14 |
40327 |
Hex. Screw M6 x 12 |
| 15 |
570151000 |
Protection Cap |
| 17 |
250000282 |
Battery Bolt Kit This part replaces 295500849. |
| 18 |
605355636 |
Adapter |
| 19 |
605255588 |
Battery Holder - Call your local BRP dealership |
| 20 |
605255586 |
BATTERY COVER - Call your local BRP dealership |
| 21 |
605676001 |
O'RING 130 X6,0 - Call your local BRP dealership |
| 22 |
605355846 |
FOAM - Call your local BRP dealership |
| 23 |
605355847 |
FOAM - Call your local BRP dealership |
