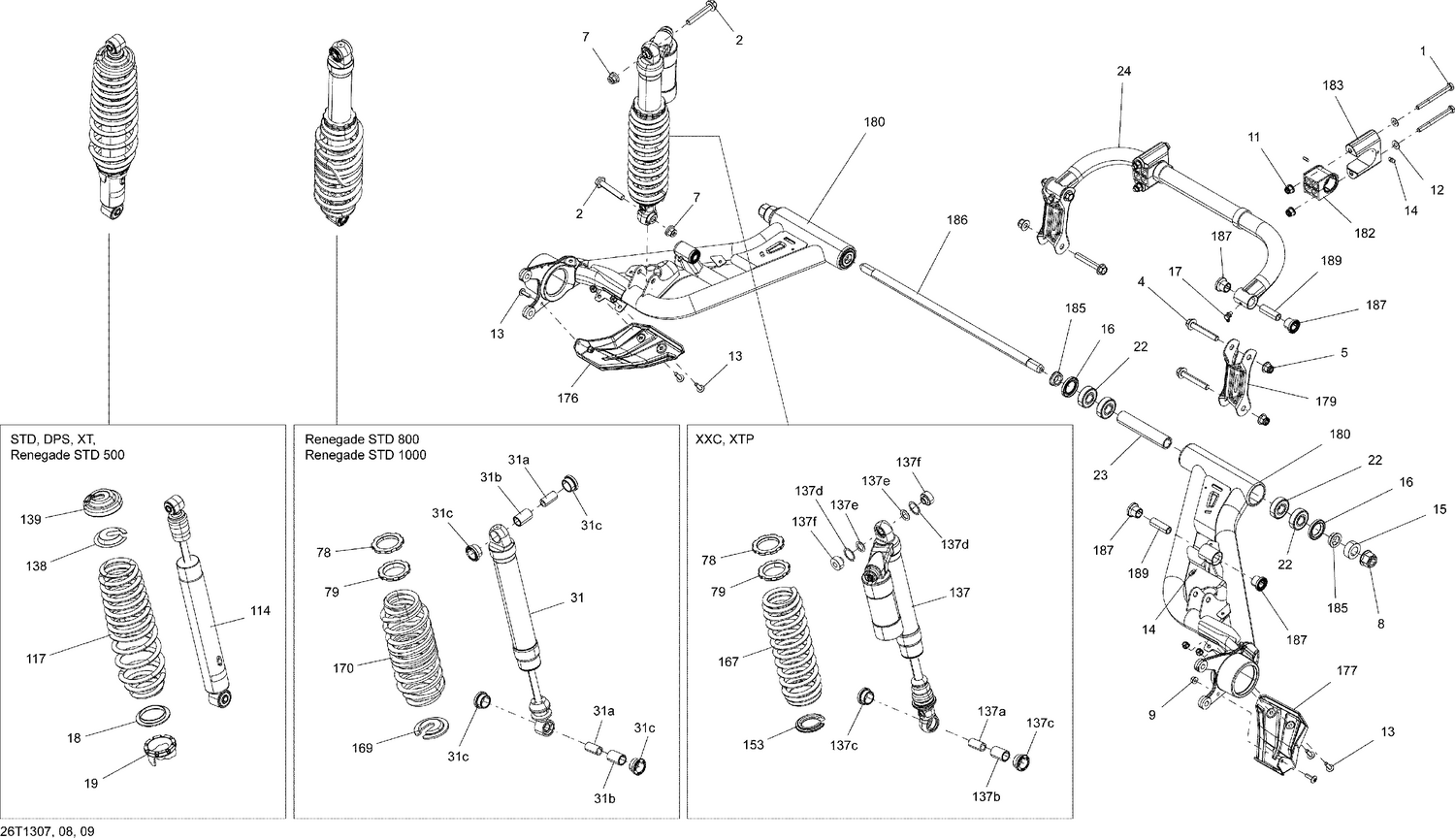

| Ref | Part Number | Description |
|---|
| 1 |
250001035 |
Hex. Screw M8 X 85 This part replaces 207088587. |
| 2 |
207606046 |
Hex. Flange Screw M10 X 6 |
| 4 |
207606536 |
Hex. Flange Screw M10 X 65 |
| 5 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 7 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 8 |
233211466 |
Hex. Flange Elastic Nut M16 |
| 9 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 11 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 12 |
234081430 |
Flat Washer M8 |
| 13 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 14 |
250000315 |
Grease Fitting |
| 15 |
250200112 |
Flat Washer M17 |
| 16 |
293200144 |
Seal This part replaces 293200132. |
| 17 |
293550056 |
Grease Fitting 90° |
| 22 |
293350145 |
Ball Bearing This part replaces 706000826. |
| 23 |
706002259 |
Spacer This part replaces 706000828. |
| 24 |
706000988 |
Swaybar |
| 31 |
XXX |
Not Available As Spare Parts |
| 31a |
XXX |
Not Available As Spare Parts |
| 31b |
XXX |
Not Available As Spare Parts |
| 31c |
XXX |
Not Available As Spare Parts |
| 78 |
Not |
Available As Spare Part - Shock Adjusment Ring |
| 79 |
Not |
Available As Spare Part - Shock Adjusment Ring |
| 137 |
XXX |
Not Available As Spare Parts |
| 137a |
XXX |
Not Available As Spare Parts |
| 137b |
XXX |
Not Available As Spare Parts |
| 137c |
XXX |
Not Available As Spare Parts |
| 137d |
XXX |
Not Available As Spare Parts |
| 137e |
XXX |
Not Available As Spare Parts |
| 137f |
XXX |
Not Available As Spare Parts |
| 153 |
Not |
Available As Spare Part - Spring Stopper |
| 167 |
XXX |
Not Available As Spare Parts |
| 169 |
Not |
Available As Spare Part - Spring Stopper |
| 170 |
XXX |
Not Available As Spare Parts |
| 176 |
706001009 |
LH PROTECTOR - Call your local BRP dealership |
| 177 |
706001010 |
RH PROTECTOR - Call your local BRP dealership |
| 179 |
706001020 |
Sway Bar Linkage |
| 182 |
706004640 |
Stabilizer Bar Bushing This part replaces 706001098. |
| 183 |
706001099 |
Bushing Holder |
| 185 |
706001282 |
Spacer |
| 186 |
706001664 |
Axial Pivot M16 This part replaces 706001364. |
