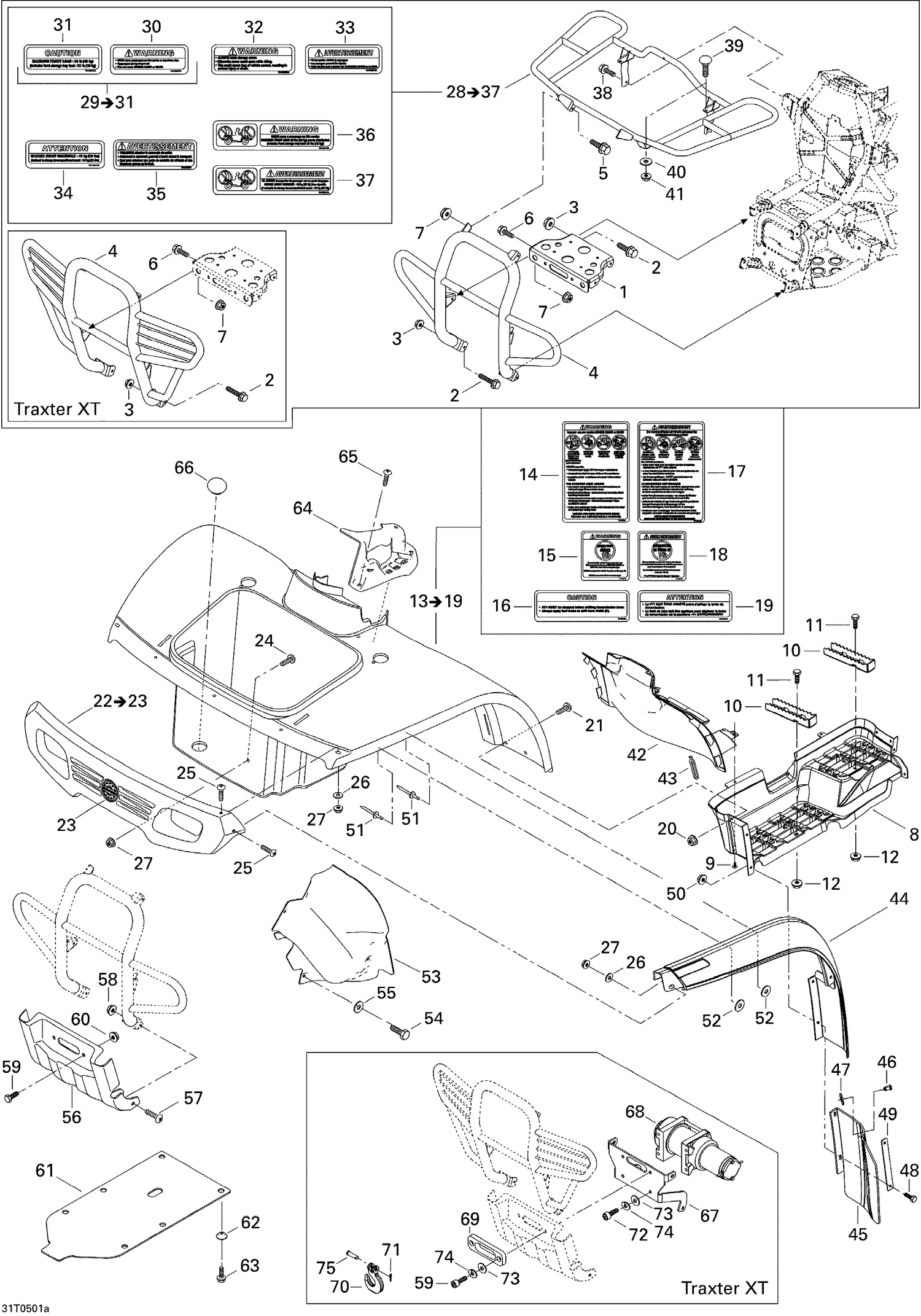

| Ref | Part Number | Description |
|---|
| 1 |
705200196 |
WINCH LATCH, BLACK - Call your local BRP dealership |
| 2 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 3 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 5 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 6 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 7 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 8 |
705001628 |
RH Footboard |
| 8 |
705001629 |
LH Footboard |
| 9 |
293730011 |
Black, Dart |
| 10 |
705001083 |
Footrest, Black |
| 11 |
207662554 |
Hex. Flange Screw M6 X 25 This part replaces 207662584. |
| 12 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 20 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 21 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 23 |
516008739 |
BRP Logo 68mm This part replaces 704900130. |
| 24 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 25 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 26 |
224060201 |
Flat Washer |
| 27 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 38 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 39 |
250000035 |
TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership |
| 40 |
224061121 |
Flat Washer |
| 41 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 42 |
705000010 |
Tank Cover |
| 43 |
570023800 |
Windshield Latch |
| 44 |
705001587 |
RH Front Mudguard |
| 44 |
705001588 |
LH Front Mudguard |
| 45 |
705000755 |
Mudguard Extension |
| 46 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 47 |
234082410 |
Flat Washer 8 mm |
| 48 |
207162544 |
Hex. Screw M6 X 25 |
| 49 |
705000754 |
PLATE - Call your local BRP dealership |
| 50 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 51 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 52 |
234082410 |
Flat Washer 8 mm |
| 53 |
705000133 |
LH TANK PROTECTOR - Call your local BRP dealership |
| 53 |
705000134 |
RH TANK PROTECTOR - Call your local BRP dealership |
| 54 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 55 |
224061201 |
Flat Washer |
| 56 |
705000135 |
Front Protection Plate, black |
| 57 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 58 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 61 |
705000675 |
Skid Plate |
| 62 |
705200533 |
CUP - Call your local BRP dealership |
| 63 |
207581646 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 64 |
705000081 |
Lever Indicator |
| 65 |
414745900 |
Tuflock Phillips Plastic Screw |
| 66 |
570041600 |
Rubber Cover |
