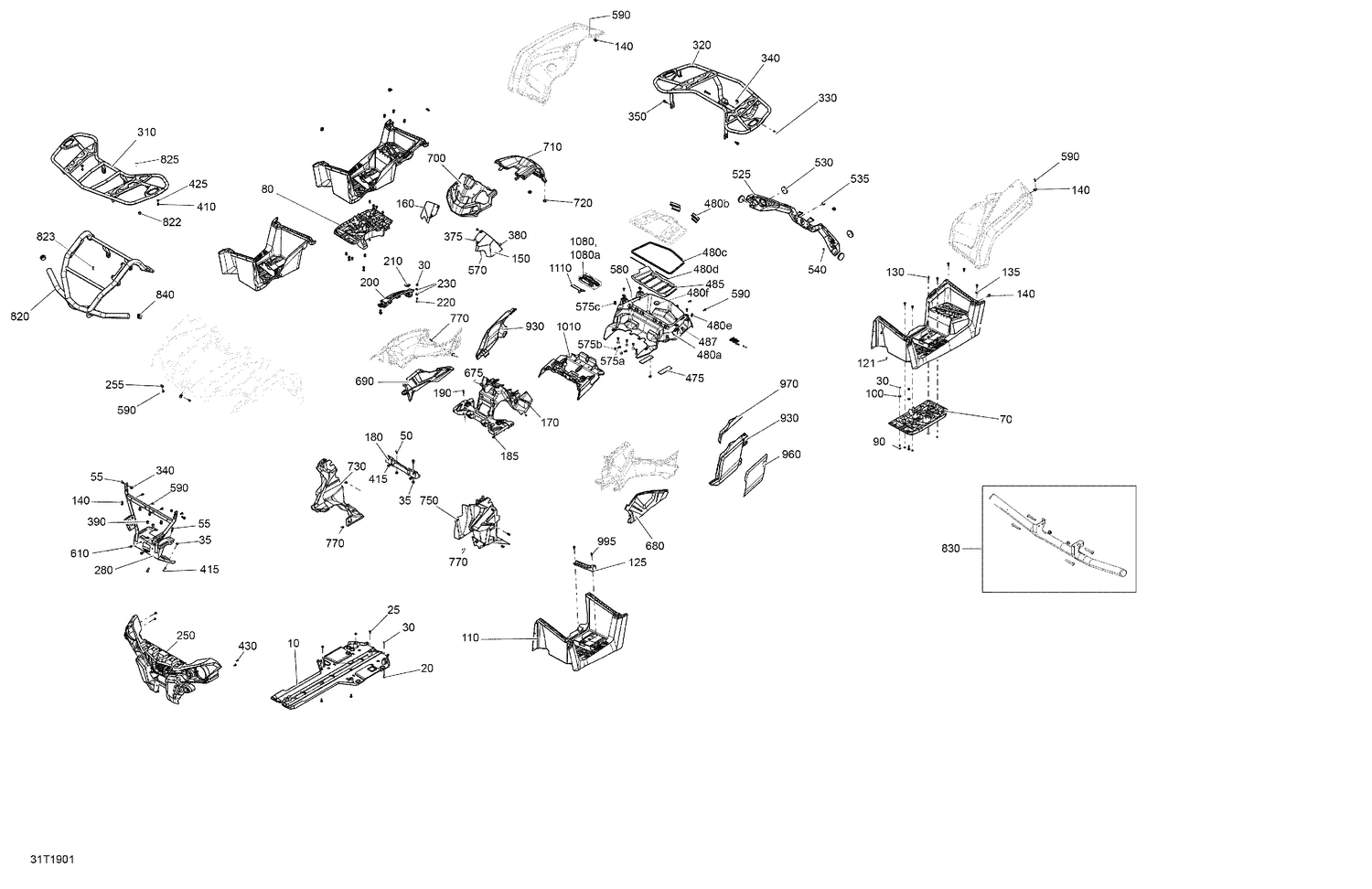

09- Body And Accessories - 450 EFI
Parts (72)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 35 | 233201434 | Hex. Flange Elastic Nut M10 |
| 50 | 207682044 | Hex. Flange Screw M8 X 20 |
| 55 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 70a | 232862412 | Square Nut M6 |
| 80a | 232862412 | Square Nut M6 |
| 90 | 207763554 | Carriage Bolt M6 X 35 |
| 100 | 234062410 | Flat Washer 6 mm |
| 110 | 705003525 | LH Footrest Max |
| 120 | 705007724 | RH Footrest Max |
| 130 | 207661654 | Hex. Flange Screw M6 X 16 |
| 135 | 224061201 | Flat Washer |
| 140 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 170 | 715006101 | Console Support Ass'y This part replaces 715003984. |
| 180 | 705010406 | Console Support Insert |
| 185 | 234062600 | Flat Washer M6, Stainless |
| 190 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 200 | 715003973 | Shifter Gate Kit |
| 220 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 230 | 224061201 | Flat Washer |
| 250 | 705009334 | Front Facia |
| 255 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 280 | 705017337 | Front Frame This part replaces 705009256. |
| 310 | 705006887 | Black, Front Luggage Rack |
| 320 | 715005986 | Black, Rear Luggage Rack |
| 330 | 250000761 | Torx Truss Screw M8 X 50 |
| 340 | 233281464 | Elastic Flange Nut M8 |
| 350 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 390 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 410 | 210261250 | Hex. Flange Screw M6 X 12 |
| 415 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 420 | 250000886 | Torx Screw M8 X 30 |
| 425 | 234062670 | Stainless Steel Flat Washer |
| 430 | 250000725 | Screw M4 X 16 |
| 475 | 293830163 | Rubber Pad |
| 480a | 705007448 | LH Box Rear Latch |
| 480c | 219704452 | Was 715900411 Neoprene Seal |
| 480d | 705007531 | Retaining Rod |
| 480e | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 480f | 414859400 | CAP - Call your local BRP dealership |
| 480g | 715004412 | Storage Cover This part replaces 705007136. |
| 480h | 715004412 | Storage Cover |
| 485 | 705007487 | Heat Deflector Sheet |
| 487 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 525 | 705005576 | Rear Facia |
| 530 | 705011221 | Red Reflector |
| 535 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 575a | 250000841 | Hex Flange Screw M6 X 25 |
| 575b | 234062670 | Stainless Steel Flat Washer |
| 575c | 293150230 | Tuflok Plastic Rivet |
| 580 | 250000807 | Torx Truss Screw M6 X 25 |
| 590 | 250000722 | Torx Screw M6 X 20 |
| 675 | 250000723 | Phillips Screw K40 X 16 |
| 680 | 715007008 | Deflector_Body Panel Kit This part replaces 705004147. |
| 690 | 705003444 | Engine Cover |
| 700 | 705007066 | Gage Support |
| 710 | 715005837 | Dash Kit |
| 720 | 705003264 | Grommet |
| 770 | 293150230 | Tuflok Plastic Rivet |
| 822 | 233281464 | Elastic Flange Nut M8 |
| 825 | 250000898 | Pan Torx Screw M8 X 25 |
| 930 | 715001897 | LH Extension Panel |
| 940 | 705004348 | RH Extension Panel |
| 960 | 705006870 | Heat Shield |
| 970 | 705006871 | Heat Shield |
| 1010 | 705007948 | Seat Holder |
| 1040 | 219001968 | GUIDE DU CONDUCTEUR 2019 |
| 1080a | 529000085 | Socket Wrench 14/16MM |
| 1110 | 529000035 | Adjustment Wrench |
| 1130 | 219400038 | Waranty Registration Form |
