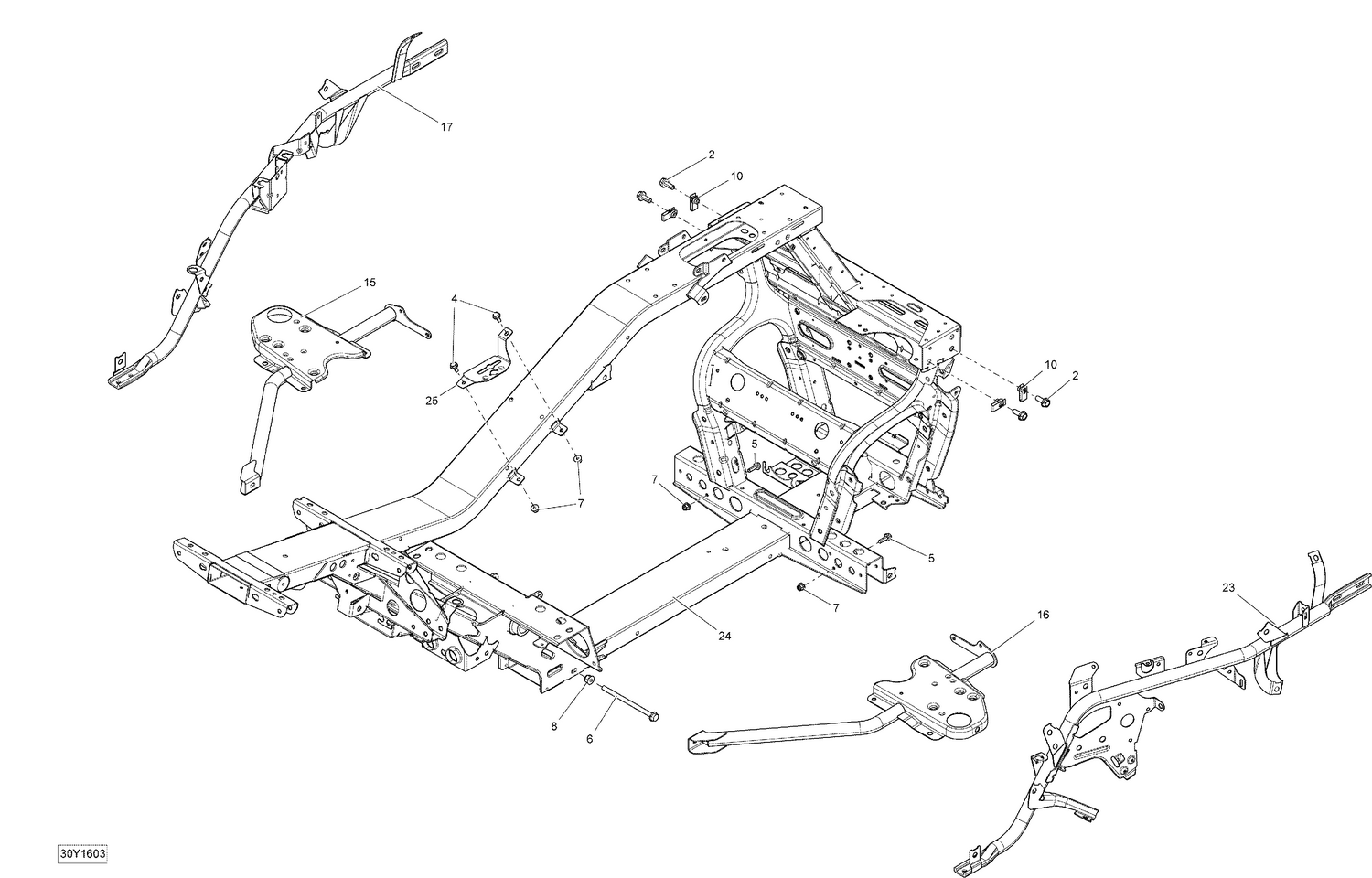

| Ref | Part Number | Description |
|---|
| 2 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 4 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 5 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 6 |
230683034 |
Hex. Flange Screw M8 X 130 |
| 7 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 7 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 8 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 10 |
250100118 |
Panel Nut M8 X 1.25 |
| 15 |
705202626 |
LH Painted Lower Lateral Support |
| 16 |
705202680 |
RH LOWER SIDE SUPPORT - Call your local BRP dealership |
| 17 |
705202681 |
LH UPPER SIDE SUPPORT - Call your local BRP dealership |
| 23 |
705204510 |
RH Painted Lateral Support Ass'y |
| 24 |
705204866 |
Frame |
