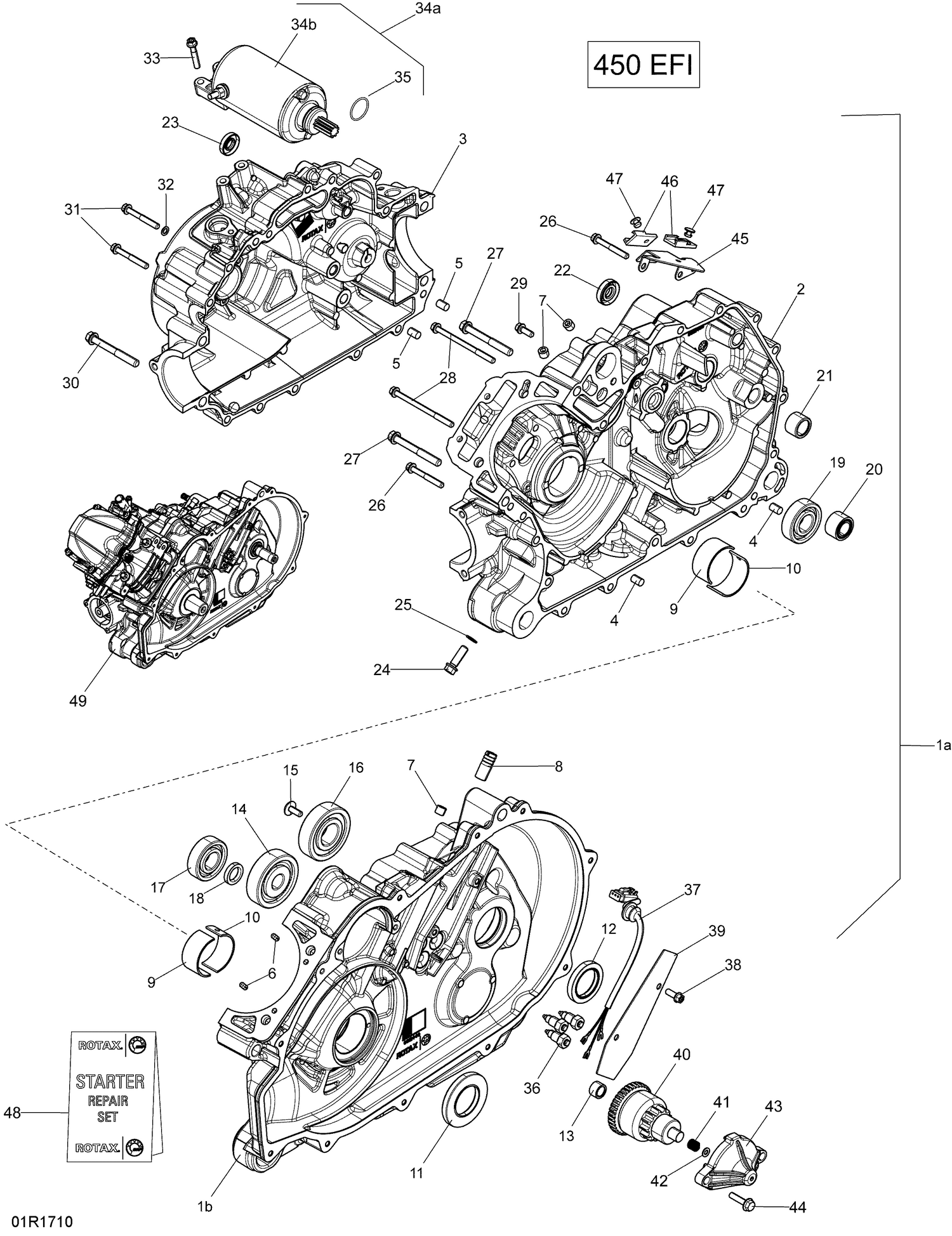

01- Crankcase - 450 EFI
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1b | Not | Available As Spare Part - Crankcase, CVT Side |
| 2 | Not | Available As Spare Part - Crankcase, MAG Side |
| 3 | Not | Available As Spare Part - Magneto Cover |
| 4 | 420632010 | Center Pin 8 X 12 |
| 5 | 420632010 | Center Pin 8 X 12 |
| 6 | 420929650 | Drive Pin 5 X 10 |
| 7 | 420641323 | Plug Screw M10 X 1 |
| 8 | 420256332 | Hose Nipple |
| 9 | 420233960 | Plain Bearing |
| 10 | 420233965 | Plain Bearing |
| 11 | 420630152 | Oil Seal |
| 12 | 420950089 | Oil Seal |
| 13 | 420232482 | Needle Bushing |
| 14 | 420632295 | Ball Bearing This part replaces 420632290. |
| 15 | 420241522 | Torx Screw M6 X 16 This part replaces 420241529. |
| 16 | 420932822 | Ball Bearing This part replaces 420932825. |
| 17 | 420932433 | Ball Bearing 6204 |
| 18 | 420250130 | Oil Seal |
| 19 | 420932433 | Ball Bearing 6204 |
| 20 | 420232085 | Needle Bushing |
| 21 | 420832240 | Needle Bushing |
| 22 | 420250450 | Oil Seal |
| 23 | 420650315 | Oil Seal |
| 24 | 420440372 | Torx Flange Screw M8 X 25 |
| 25 | 420950141 | Sealing Ring |
| 26 | 420440324 | Torx Flange Screw M6 X 45 |
| 27 | 420440207 | Torx Flange Screw M6 X 20 |
| 27 | 420440402 | Torx Flange Screw M8 X 65 |
| 28 | 420641228 | Torx Flange Screw M6 X 85 This part replaces 420440347. |
| 29 | 420440162 | Torx Flange Screw M6 X 16 |
| 30 | 420440402 | Torx Flange Screw M8 X 65 |
| 31 | 420440324 | Torx Flange Screw M6 X 45 |
| 32 | 420230415 | Seal Washer |
| 33 | 420440274 | Torx Flange Screw M6 X 35 |
| 34b | Not | Available As Spare Part - Electrical Starter |
| 35 | Not | Available As Spare Part - O-Ring |
| 36 | 420241856 | Position Switch |
| 37 | 420265831 | Wiring Harness |
| 38 | 420440162 | Torx Flange Screw M6 X 16 |
| 39 | 420251290 | Cover Sheet |
| 40 | 420294811 | Starter Drive Ass'y This part replaces 420684056. |
| 41 | 420938204 | Spring |
| 42 | 420927574 | Washer 5.3 This part replaces 420927571. |
| 43 | 420610891 | Reduction Cover Gear |
| 44 | 420240034 | Hex. Screw M6 X 25 |
| 45 | 420251491 | Retaining Plate |
| 46 | 420260590 | Connector Bracket |
| 47 | 420243010 | Blind Rivet |
| 48 | 420685125 | Gasket Set ( Engine) |
