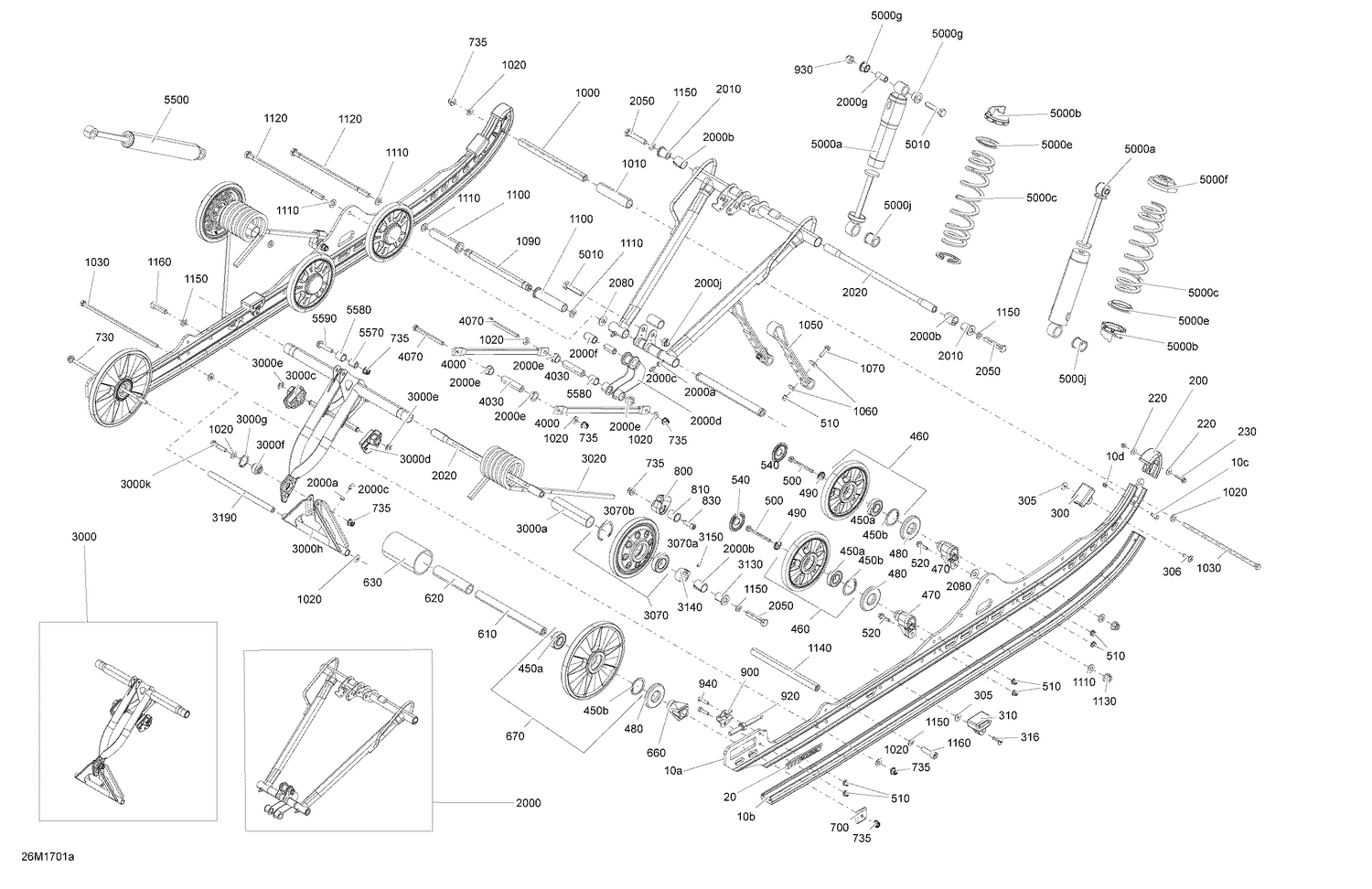

08- Rear Suspension
Parts (90)
| Ref | Part Number | Description |
|---|---|---|
| 10c | 208562531 | Phillips Screw M6 X 25 |
| 10d | 232561414 | Elastic Stop Nut M6 |
| 20 | 516006381 | Runner Decal |
| 200 | 503192299 | Runner Protector |
| 220 | 250200140 | Washer |
| 230 | 207652544 | Hex. Flange Screw M5 X 25 |
| 300 | 503190576 | Rubber Stopper |
| 305 | 503191273 | Washer |
| 306 | 293150224 | Pop Rivet 3/16 |
| 310 | 503193504 | Rubber Stopper |
| 316 | 293150224 | Pop Rivet 3/16 |
| 450a | 503190396 | Ball Bearing |
| 450b | 415129371 | Retaining Ring |
| 470 | 503193894 | Casted Support |
| 480 | 503190434 | Labyrinth Seal |
| 490 | 503191820 | Wheel Cup M6 |
| 500 | 207667056 | Hex. Flange Screw M6 X 70 |
| 510 | 233261466 | Hex. Flange Elastic Nut M6 |
| 520 | 207662556 | Hex. Flange Screw M6 X 25 |
| 540 | 503192771 | Black, Wheel Cap |
| 610 | 503194200 | Rear Axle |
| 620 | 503191263 | Rear Spacer |
| 630 | 503193097 | Bushing |
| 660 | 503190428 | Rear Wheel Spacer |
| 700 | 503194412 | Axle Slider |
| 730 | 503194265 | Bolt |
| 735 | 233281466 | Elastic Flange Nut M8 |
| 800 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 810 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 830 | 205082554 | Socket Screw M8 X 25 |
| 900 | 503192583 | Tensioner |
| 920 | 230100054 | Hex Screw M10 x 100 |
| 930 | 233601466 | Elastic Locking Nut M10 |
| 940 | 250000619 | Hex Screw M6 X 25 |
| 1000 | 503193332 | STRAP AXLE - Call your local BRP dealership |
| 1010 | 503189265 | Spacer |
| 1020 | 503192494 | Washer |
| 1030 | 503192440 | Bolt M8 X 248mm |
| 1050 | 503194679 | Stopper Strap This part replaces 503193991. |
| 1060 | 503193995 | Washer |
| 1070 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 1090 | 503193435 | Pivot Axle |
| 1100 | 503191259 | Center Bushing |
| 1110 | 250200143 | Flat Washer |
| 1120 | 503193227 | Bolt M10 X 251MM |
| 1130 | 233201466 | Flange Elastic Nut M10 |
| 1140 | 503194522 | Black Strap Axle |
| 1150 | 503192496 | Washer |
| 1160 | 205503554 | Socket Head Screw M10 X 35 |
| 2000a | 232061404 | Hexagonal Nut M6 |
| 2000b | 503191556 | Extended Bushing |
| 2000c | 408200700 | Grease Fitting |
| 2000d | 503193464 | Rocker |
| 2000e | 503191555 | Swivel Bushing |
| 2000f | 503193037 | Bushing |
| 2000g | 503189282 | Bushing |
| 2000j | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 2010 | 503194000 | Bushing |
| 2020 | 503193441 | Upper Shaft |
| 2050 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 2080 | 250200032 | Washer |
| 3000a | 503193218 | Bushing |
| 3000c | 503191565 | LH Cam Adjuster |
| 3000d | 503191566 | RH Cam Adjuster |
| 3000e | 293370013 | E-Circlip |
| 3000f | 503194035 | Radial Joint |
| 3000g | 293370114 | Inner Circlip |
| 3000h | 503193699 | Pivot Arm |
| 3000k | 207084056 | Hex. Screw M8 X 1.25 X 40 |
| 3020 | 503193002 | Black, RH Spring Square |
| 3020 | 503193003 | Black, LH Spring Square |
| 3070a | 503193548 | Ball Bearing |
| 3070b | 415129780 | Retaining Ring |
| 3130 | 503194000 | Bushing |
| 3140 | 503193439 | Retaining Ring |
| 3150 | 206260844 | Socket Set Screw M6 X 8 |
| 3190 | 503189156 | Pivot Arm Axle |
| 4030 | 503190643 | Axle Bar (Long) |
| 4070 | 503193372 | Screw M8 X 90 |
| 5000a | 503193207 | Central Shock |
| 5000b | 505073625 | Adjustment Cam |
| 5000c | 503191882 | Black, Spring |
| 5000e | 503191872 | Spring Guide |
| 5000f | 706200881 | Spring Stopper |
| 5000g | 503189117 | Urethane Bushing |
| 5000j | 503189271 | Bushing |
| 5010 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 5500 | 503193189 | Rear Shock |
| 5570 | 503196509 | Axle Shock Absorber This part replaces 503192606. |
| 5580 | 505072663 | Leg Cushion |
