Home / BRP / 2015 / GSX / GSX LE 1200 XR137, 2015 000DKFA00 / 09- Utilities _LE_46M1521

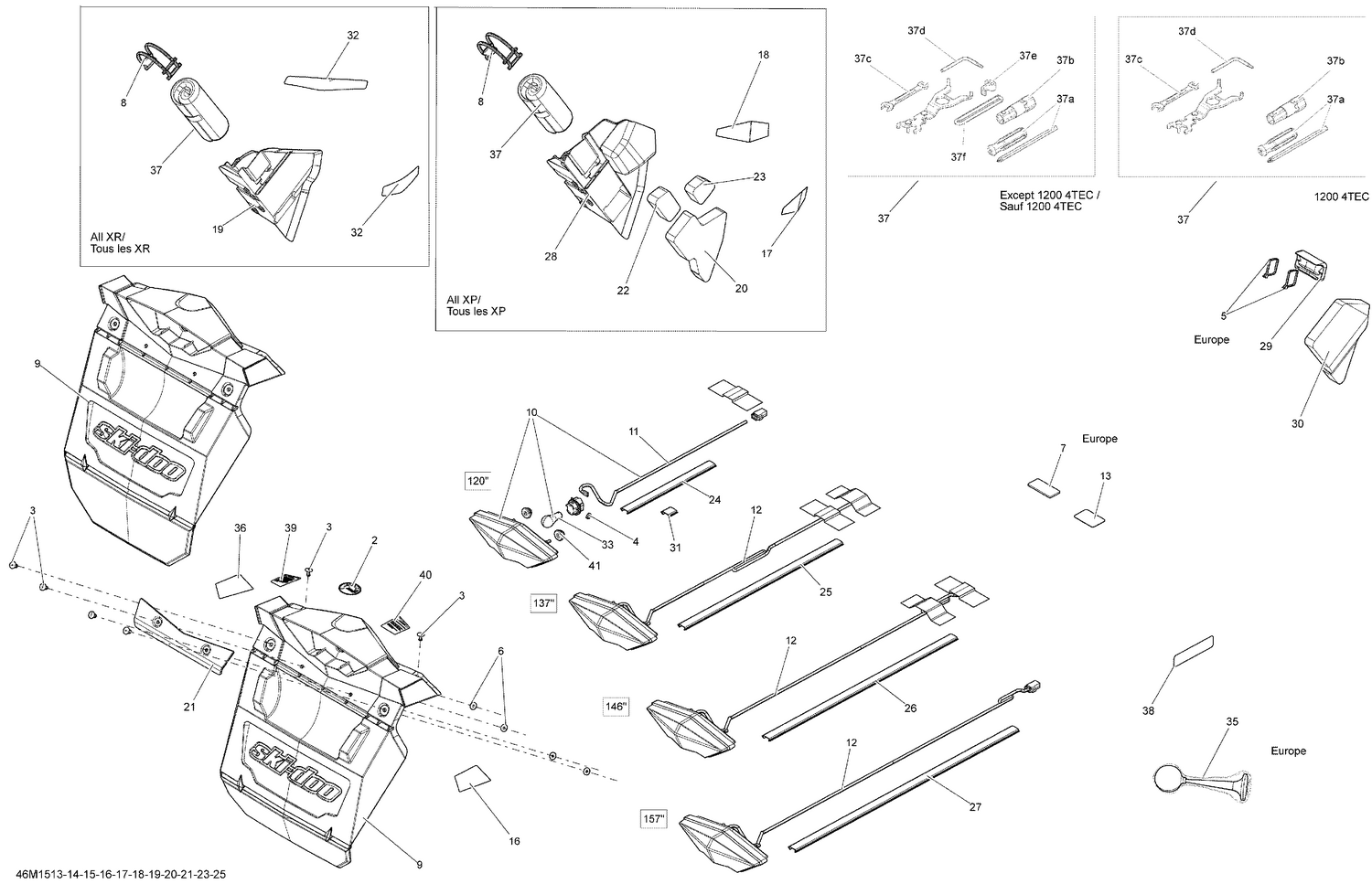

09- Utilities _LE_46M1521

09- Utilities _LE_46M1521

Parts (43)

RefPart NumberDescription
2 219903947 BRP Logo 48 mm
3 293150108 Pop Rivet 3/16” This part replaces 293150108.
4 293750002 Tie Wrap 142 mm
5 XXX Not Available As Spare Parts
6 XXX Not Available As Spare Parts
7 XXX Not Available As Spare Parts
8 520000528 Latch
9 520000704 Snow Guard
10 XXX Not Available As Spare Parts
11 520000680 WIRING HARNESS ASS'Y - Call your local BRP dealership
12 520000679 Rear Light Ass'y
13 XXX Not Available As Spare Parts
16 520001162 Red, RH Rear Reflector
17 XXX Not Available As Spare Parts
18 XXX Not Available As Spare Parts
19 520000720 TOOL KIT RACK - Call your local BRP dealership
20 XXX Not Available As Spare Parts
21 520000751 Reinforcement
22 XXX Not Available As Spare Parts
23 XXX Not Available As Spare Parts
24 XXX Not Available As Spare Parts
25 XXX Not Available As Spare Parts
26 XXX Not Available As Spare Parts
27 XXX Not Available As Spare Parts
28 XXX Not Available As Spare Parts
29 XXX Not Available As Spare Parts
30 XXX Not Available As Spare Parts
31 520000829 Radiator Trim
32 520001234 YELLOW FRONT REFLECTOR XR - Call your local BRP dealership
33 520000758 Bulb
34 520001317 PLATE RIVET - Call your local BRP dealership
35 XXX Not Available As Spare Parts
36 520001161 Red, LH Rear Reflector
37 520001593 Tools Kit This part replaces 529000078.
37a 529000004 SCREWDRIVER - Call your local BRP dealership
37b 529000046 Set Key, 16/21 mm
37c 529000002 FORK WRENCH, 10/13 MM - Call your local BRP dealership
37d 520001142 Spacing Tool
37e XXX Not Available As Spare Parts
37f XXX Not Available As Spare Parts
38 XXX Not Available As Spare Parts
39 516005590 WARNING DECAL, TRACK - Call your local BRP dealership
40 516005591 Warning Decal, Cargo
