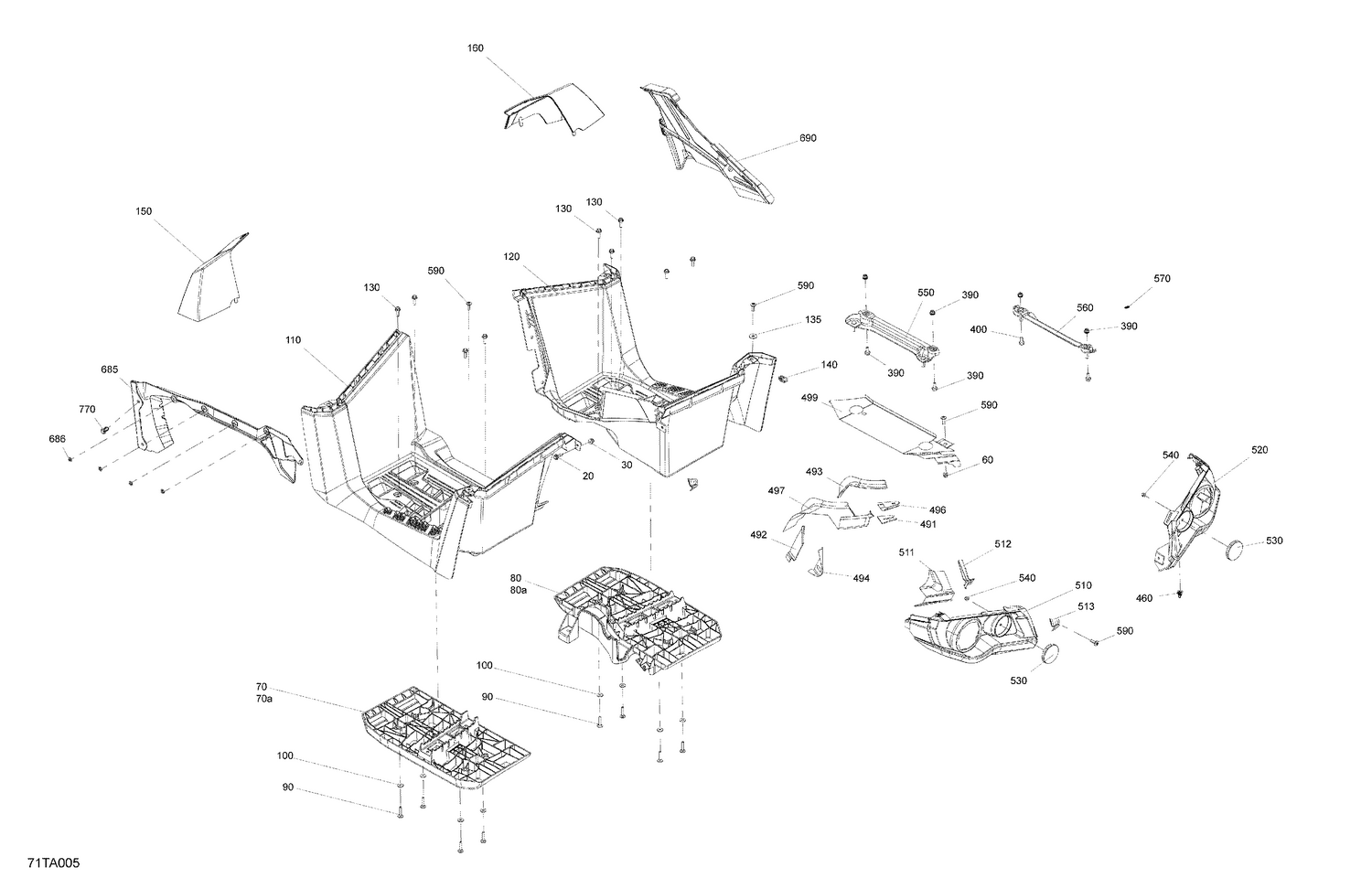

07- Body - Rear Section
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 70a | 232862412 | Square Nut M6 |
| 80a | 232862412 | Square Nut M6 |
| 90 | 207763554 | Carriage Bolt M6 X 35 |
| 100 | 234062410 | Flat Washer 6 mm |
| 110 | 705007040 | LH Step |
| 120 | 705007039 | RH Step |
| 130 | 207662054 | Hex. Flange Screw M6 X 20 |
| 135 | 224061201 | Flat Washer |
| 140 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 150 | 705006134 | LH Air Deflector |
| 160 | 705006135 | RH Air Deflector |
| 390 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 400 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 460 | 517302785 | Edge Clip |
| 491 | 707002456 | Heat Shield |
| 492 | 707002457 | Heat Shield |
| 493 | 707002458 | Heat Shield |
| 494 | 707002459 | Heat Shield |
| 496 | 707002461 | Heat Shield |
| 497 | 707002462 | Heat Shield |
| 499 | 707002464 | Heat Shield |
| 510 | 705006643 | LH Rear Facia |
| 511 | 707002103 | Heat Shield |
| 512 | 707002107 | Heat Shield |
| 513 | 707002594 | Heat Shield |
| 520 | 705006650 | RH Rear Facia |
| 530 | 705011221 | Red Reflector |
| 540 | 233251434 | Flange Elastic Nut M5 |
| 550 | 705007277 | LH Support |
| 560 | 705007278 | RH Support |
| 570 | 732610072 | Push Nut |
| 590 | 250000722 | Torx Screw M6 X 20 |
| 685 | 705014061 | Deflector Body Panel |
| 686 | 732610072 | Push Nut |
| 690 | 705003444 | Engine Cover |
