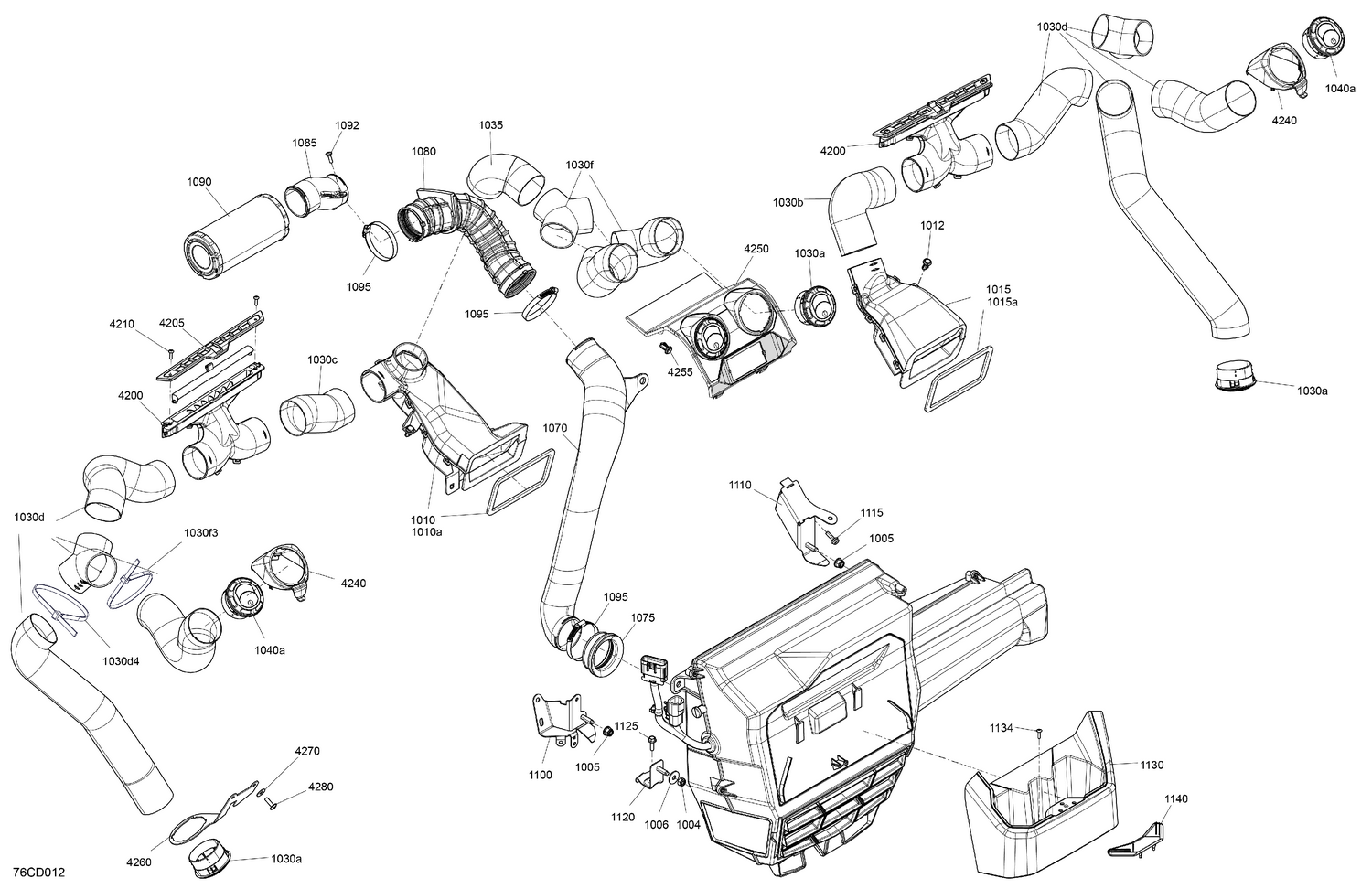

07- Enclosure Cab - Air Conditioning System
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1004 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1005 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1006 | 234082410 | Flat Washer 8 mm |
| 1010a | 705800649 | LH Manifold Ass'y |
| 1012 | 293150230 | Tuflok Plastic Rivet |
| 1015a | 705800650 | RH Manifold Ass'y |
| 1030a | 705800436 | Grille Scoop |
| 1030b | 705800706 | Duct Ventilation Kit |
| 1030c | 705800706 | Duct Ventilation Kit |
| 1030d4 | 293750094 | Anchorage Tie Wrap |
| 1030f3 | 293750094 | Anchorage Tie Wrap |
| 1035 | 705800690 | Adaptor |
| 1040a | 705800436 | Grille Scoop |
| 1070 | 705800377 | Intake Duct |
| 1075 | 705800437 | Lower Intake Fitting |
| 1080 | 705800438 | Upper Intake Fitting |
| 1085 | 705800439 | Upper Intake Duct |
| 1090 | 705800395 | Air Filter |
| 1092 | 250000720 | Torx Screw K50 X 16 |
| 1095 | 293650118 | Norma Gear Clamp |
| 1100 | 705801110 | LH Upper Console Support |
| 1110 | 705801112 | RH Upper Console Support |
| 1115 | 207662044 | Hex. Flange Screw M6 X 20 |
| 1120 | 705801148 | Lower Console Support |
| 1125 | 207662044 | Hex. Flange Screw M6 X 20 |
| 1130 | 705800452 | Cup Holder |
| 1134 | 250001131 | Torx Truss PT K40 x 12 |
| 1140 | 707900036 | Cup Retainer |
| 4200 | 705800501 | Central Adapter |
| 4205 | 705800425 | Front Ventilation Grille |
| 4210 | 250000759 | Torx Truss Pt K40 X 16 |
| 4240 | 705800426 | Side Grille Support |
| 4250 | 705800427 | Central Grille Support |
| 4255 | 293150230 | Tuflok Plastic Rivet |
| 4260 | 705801099 | LH Lower Grille Support |
| 4270 | 234062670 | Stainless Steel Flat Washer |
