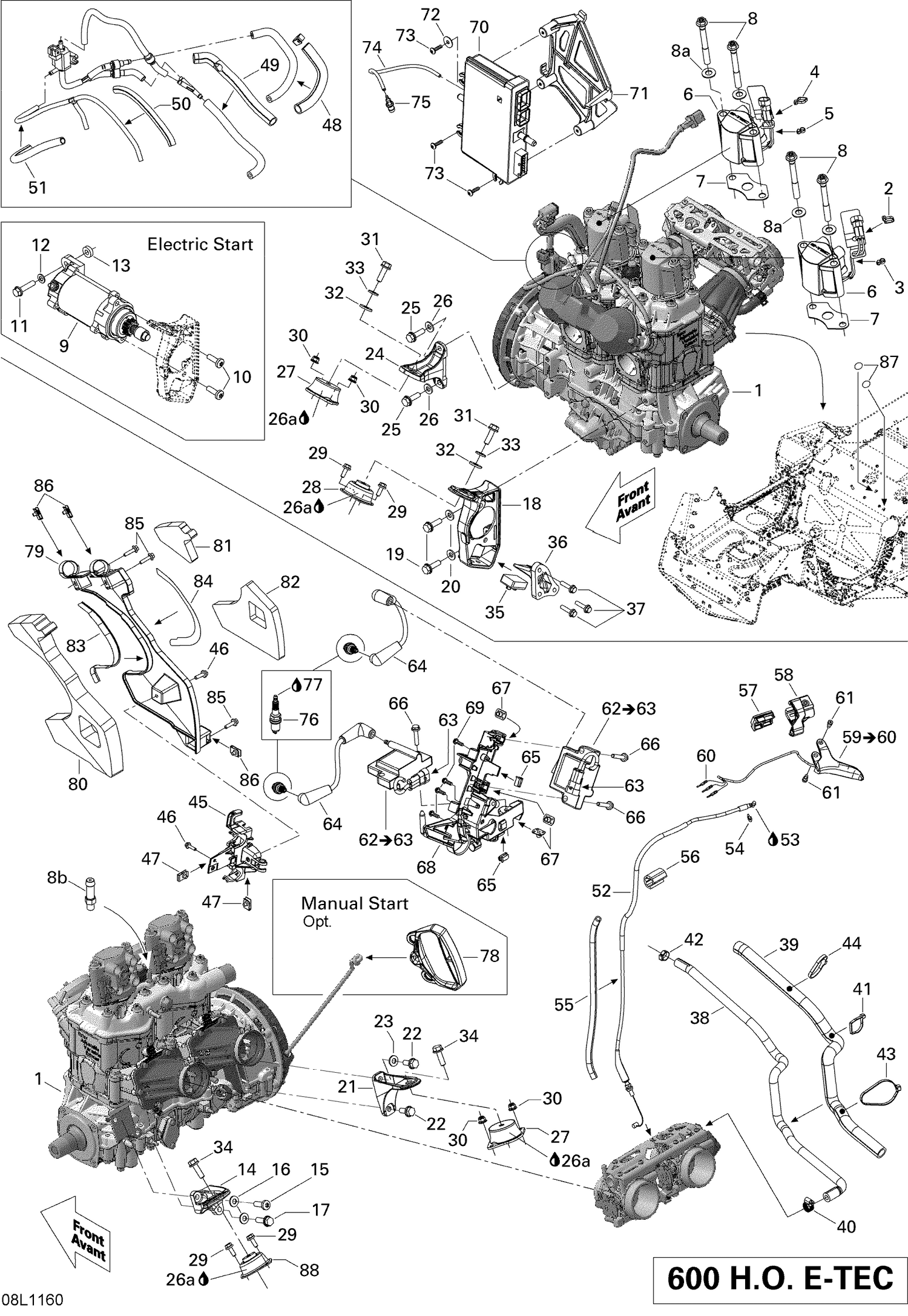

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Engine 600HOE With Rewind Starter |
| 2 |
293750001 |
Tie-Rap 94 mm |
| 3 |
293750002 |
Tie-Rap 142 mm |
| 4 |
293750001 |
Tie-Rap 94 mm |
| 5 |
293750002 |
Tie-Rap 142 mm |
| 6 |
512061233 |
Fuel Injector This part replaces 512060649. |
| 7 |
420430930 |
Gasket |
| 8 |
420441187 |
Flanged Torx Screw M10 X 90 -SW 13/T50 |
| 8a |
234001410 |
Flat Washer 10 mm |
| 8b |
420924724 |
Hose Nipple This part replaces 420924720. |
| 13 |
515176500 |
Washer |
| 14 |
512060478 |
Rear Support, PTO |
| 15 |
250000752 |
Pan HD Torx Screw M8 x 25 This part replaces 250000248. |
| 16 |
234281474 |
Conical Spring Washer M8 |
| 17 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 18 |
512060712 |
FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060560. |
| 19 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 20 |
234281474 |
Conical Spring Washer M8 |
| 21 |
512060559 |
Rear Support, MAG |
| 22 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 23 |
234281474 |
Conical Spring Washer M8 |
| 24 |
512060469 |
Front Support, MAG |
| 25 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 26 |
234281474 |
Conical Spring Washer M8 |
| 26a |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 27 |
512060729 |
Rubber Mount This part replaces 512060457. |
| 28 |
512061507 |
Damper_Vibration This part replaces 512060387. |
| 29 |
88 |
Hex. Flanged Screw M6 X 16, Scotch Grip |
| 30 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 31 |
207583086 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 32 |
503183200 |
Yellow, Washer |
| 33 |
234281474 |
Conical Spring Washer M8 |
| 34 |
250000796 |
Hex. Flanged Screw M8 X 25 This part replaces 250000361. |
| 35 |
512060627 |
Stopper This part replaces 512060577. |
| 36 |
512060576 |
Stopper Support |
| 37 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 38 |
512060740 |
Formed Hose This part replaces 512060349. |
| 39 |
415080000 |
Tubing 16 mm |
| 40 |
293650084 |
Norma Clamp |
| 41 |
414115200 |
Tie-Rap 180 mm |
| 42 |
293650046 |
Oetiker Clamp |
| 43 |
414115200 |
Tie-Rap 180 mm |
| 44 |
414115200 |
Tie-Rap 180 mm |
| 45 |
512060298 |
Solenoid Support |
| 46 |
207652044 |
Hex. Flange Screw M5 X 20 |
| 47 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 48 |
409901800 |
Tubing 13 mm |
| 49 |
409901800 |
Tubing 13 mm |
| 50 |
415079900 |
Tubing 10 mm |
| 51 |
415079900 |
Tubing 10 mm |
| 52 |
512060624 |
Throttle Cable |
| 53 |
293550004 |
Dielectric Grease, 150 g |
| 54 |
414274500 |
Circlip |
| 55 |
409901700 |
Tubing 9 mm |
| 56 |
512060313 |
Protector |
| 57 |
512060198 |
Upper Housing Ass'y |
| 58 |
512060860 |
Lower Housing This part replaces 512060430. |
| 60 |
515175232 |
Male Terminal |
| 61 |
732601143 |
Flanged Screw |
| 63 |
710000568 |
Male terminal housing |
| 64 |
512061126 |
Ignition Cable This part replaces 512060094. |
| 65 |
710000992 |
Clip |
| 66 |
250000253 |
Flanged Hex. Screw M6 X 30 |
| 67 |
293100003 |
Nut M6 |
| 68 |
512060888 |
Support This part replaces 512060287. |
| 69 |
241151640 |
Hex. Flanged Screw K50 X 16 |
| 70 |
512060780 |
Calibrated Module 600 E-TEC This part replaces 512060612. |
| 71 |
512060858 |
Calibrated Module Support This part replaces 512060297. |
| 72 |
250200040 |
Flat Washer |
| 73 |
250000297 |
Truss Head Torx Screw K50 X 20 |
| 74 |
415080100 |
Line |
| 75 |
414814100 |
Male Connector |
| 76 |
415130430 |
Spark Plug NGK PZFR6F This part replaces 415129432. |
| 77 |
293550004 |
Dielectric Grease, 150 g |
| 79 |
512060339 |
NOISE SHIELD - Call your local BRP dealership |
| 80 |
512060343 |
Interior Noise Foam |
| 81 |
512060344 |
Upper Exterior Noise Foam |
| 82 |
512060362 |
LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership |
| 83 |
512060574 |
Heat Shield |
| 84 |
512060575 |
Heat Shield |
| 85 |
207652044 |
Hex. Flange Screw M5 X 20 |
| 86 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 87 |
518325560 |
Adhesive Patch |
