| Ref | Part Number | Description |
|---|
| BN1 |
710000913 |
Terminal |
| BN2 |
278001392 |
Open Barrel Terminal |
| BP1 |
278001392 |
Open Barrel Terminal |
| CI |
515175801 |
Female Housing, 24 Circuits |
| CI |
515175802 |
Retainer Block |
| CI |
515175803 |
Wire Seal |
| CI |
515175812 |
Plug |
| CI |
710000399 |
Female Housing |
| CI |
710001131 |
Female Terminal |
| D2 |
409012700 |
Diode |
| DB |
710002705 |
Lock |
| DB |
710002706 |
Female Housing 6 Circuits |
| DB |
710005438 |
Female Terminal |
| DB |
710005439 |
Female Terminal |
| DC1 |
710002398 |
Female Terminal |
| DC1 |
710002399 |
Female Terminal |
| DC3 |
515175231 |
Female Terminal |
| DC3 |
515175658 |
Female Housing, 2 Circuits |
| DC3_C |
710000667 |
Male Housing, 2 Circuits |
| DC5 |
278000220 |
Male Connector, 2 Circuits |
| DC5 |
278000223 |
Female Terminal |
| DC5 |
278001065 |
Wire Seal |
| DC5_C |
278000216 |
Wire Seal |
| DC5_C |
278000217 |
Female Housing, 2 Circuits |
| DC5_C |
710000992 |
Clip |
| DC6 |
278000220 |
Male Connector, 2 Circuits |
| DC6 |
278000223 |
Female Terminal |
| DC6 |
278001065 |
Wire Seal |
| DC6_C |
278000216 |
Wire Seal |
| DC6_C |
278000217 |
Female Housing, 2 Circuits |
| DC6_C |
710000992 |
Clip |
| DPS |
278002186 |
Wire Seal |
| DPS |
278002187 |
Female Terminal |
| DPS |
710001222 |
Lock |
| DPS |
710001860 |
Seal |
| DPS |
710001873 |
Terminal |
| DPS |
710002075 |
Plug |
| DPS |
710004989 |
Female Housing |
| DPS |
710005098 |
Lock |
| F11 |
710000747 |
Little Fuse, 30 Amperes |
| F12 |
710000745 |
Little Fuse, 15 Ampere |
| F14 |
710000745 |
Little Fuse, 15 Ampere |
| F15 |
710000742 |
Little Fuse, 5 Amperes |
| F4 |
710000742 |
Little Fuse, 5 Amperes |
| F5 |
710000742 |
Little Fuse, 5 Amperes |
| F6 |
710000742 |
Little Fuse, 5 Amperes |
| F7 |
710000742 |
Little Fuse, 5 Amperes |
| F8 |
710000742 |
Little Fuse, 5 Amperes |
| F9 |
710002590 |
Fuse, 25 Amps |
| FP |
278001013 |
Wire Seal |
| FP |
278001014 |
Female Terminal |
| FP |
409209700 |
Female Housing, 4 Circuits |
| FP |
515176621 |
Wire Seal |
| FP |
710001340 |
Female Terminal |
| FRR |
515175231 |
Female Terminal |
| FRR |
515175658 |
Female Housing, 2 Circuits |
| FT |
278000217 |
Female Housing, 2 Circuits |
| FT |
278000218 |
Wire Seal |
| FT |
409004300 |
Male Terminal |
| FT |
409210100 |
Clip Bracket Connector (edge) |
| HIC1 |
710001222 |
Lock |
| HIC1 |
710001226 |
Housing |
| HIC1 |
710001229 |
Terminal |
| HIC1 |
710001233 |
Seal |
| HIC2 |
710001222 |
Lock |
| HIC2 |
710001228 |
Terminal |
| HIC2 |
710001229 |
Terminal |
| HIC2 |
710001233 |
Seal |
| HIC2 |
710001332 |
Seal Wire |
| HIC2 |
710001928 |
Housing |
| HIC8 |
278001007 |
Insulated Sheath |
| HIC8 |
710000421 |
Female Terminal |
| HL_LH |
278002578 |
Female Terminal |
| HL_LH |
710001427 |
Wire Seal |
| HL_LH |
710002278 |
Housing |
| HL_LH |
710002279 |
Lock |
| HL_LL |
278002578 |
Female Terminal |
| HL_LL |
710001427 |
Wire Seal |
| HL_LL |
710002578 |
Housing |
| HL_LL |
710002584 |
Lock |
| HL_RH |
278002578 |
Female Terminal |
| HL_RH |
710001427 |
Wire Seal |
| HL_RH |
710002278 |
Housing |
| HL_RH |
710002279 |
Lock |
| HL_RL |
278002578 |
Female Terminal |
| HL_RL |
710001427 |
Wire Seal |
| HL_RL |
710002578 |
Housing |
| HL_RL |
710002584 |
Lock |
| MG1 |
409011300 |
Male Terminal |
| MG1 |
409012300 |
Seal |
| MG1 |
710000402 |
Wire Seal |
| MG1 |
710000835 |
Male Terminal Housing, 6 Circuits |
| MG2 |
409012100 |
Female Terminal |
| MG2 |
409012300 |
Seal |
| MG2 |
710000081 |
Female Housing, 6 Circuits |
| MG2 |
710000402 |
Wire Seal |
| PF1 |
278000999 |
Wire Seal |
| PF1 |
415128501 |
Seal |
| PF1 |
415129856 |
Fuse Box Base Ass´y |
| PF1 |
515177009 |
Female Terminal |
| PF1 |
515177012 |
Female Terminal |
| PF1 |
710000840 |
Cap |
| PF1_C |
278002172 |
Foam |
| PF1_C |
710000742 |
Little Fuse, 5 Amperes |
| PF1_C |
710000745 |
Little Fuse, 15 Ampere |
| PF1_C |
710000747 |
Little Fuse, 30 Amperes |
| PF1_C |
710001026 |
Fuse Cover |
| PF1_C |
710005288 |
Fuse Decal |
| PF2 |
278001325 |
Fuse Holder |
| PF2 |
278001326 |
Fuse Holder Cap |
| PF2 |
710000113 |
Female Terminal |
| PF2 |
710000992 |
Clip |
| PF2 |
710001613 |
Fuse |
| PL |
515175658 |
Female Housing, 2 Circuits |
| PL |
710003896 |
Female Terminal |
| REG |
710000879 |
Female Housing, 3 Circuits |
| REG |
710001932 |
Seal |
| REG |
710001934 |
Terminal |
| REG |
710005830 |
Lock |
| RFID |
710001161 |
Housing |
| RFID |
710001162 |
Lock |
| RFID |
710001163 |
Wire Seal |
| RFID |
710001164 |
Female Terminal |
| RSS |
409012100 |
Female Terminal |
| RSS |
710000080 |
Cap |
| RSS |
710000081 |
Female Housing, 6 Circuits |
| RSS |
710000402 |
Wire Seal |
| RY1 |
515176774 |
Relay, 30 AMP |
| RY2 |
715900824 |
Relay This part replaces 710001778. |
| RY3 |
515176774 |
Relay, 30 AMP |
| RY4 |
715900824 |
Relay This part replaces 710001778. |
| RY5 |
715900824 |
Relay This part replaces 710001778. |
| RY8 |
715900824 |
Relay This part replaces 710001778. |
| SS |
409010300 |
Female Terminal |
| SW1 |
278001007 |
Insulated Sheath |
| SW1 |
710000421 |
Female Terminal |
| SW2 |
278001008 |
Insulated Sheath |
| SW2 |
278002261 |
Female Terminal |
| SW4 |
278000992 |
Open Barrel |
| SWW |
278000223 |
Female Terminal |
| SWW |
278000273 |
Male Housing, 3 Circuits |
| SWW |
278001065 |
Wire Seal |
| TL_L |
415128501 |
Seal |
| TL_L |
710002443 |
Terminal |
| TL_L |
710003167 |
Connector, 3 Positions |
| TL_R |
415128501 |
Seal |
| TL_R |
710002443 |
Terminal |
| TL_R |
710003167 |
Connector, 3 Positions |
| WAKE_F |
278001007 |
Insulated Sheath |
| WAKE_F |
710000421 |
Female Terminal |
| WAKE_M |
278001008 |
Insulated Sheath |

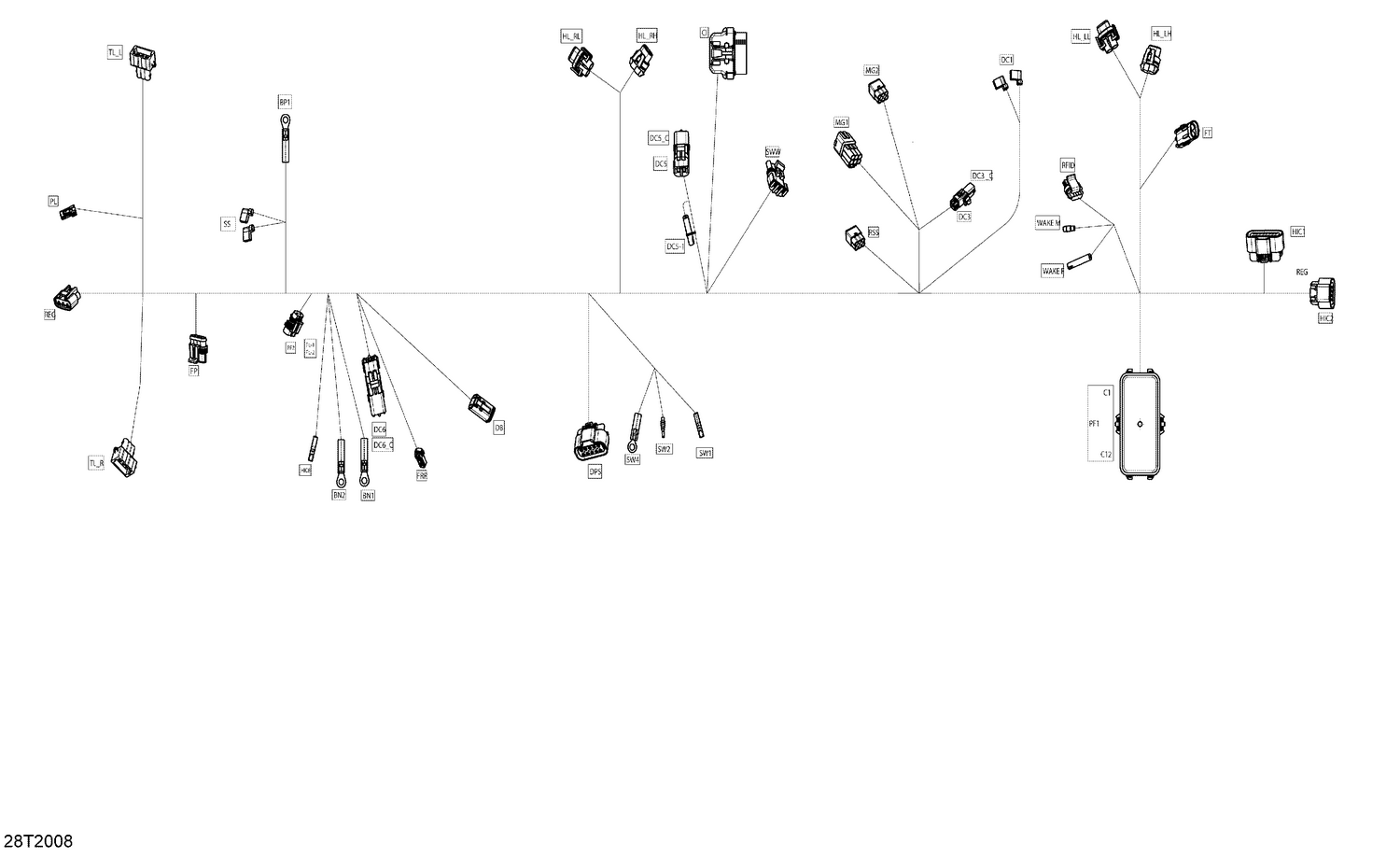

| 3000 |
710006587 |
Harness |
