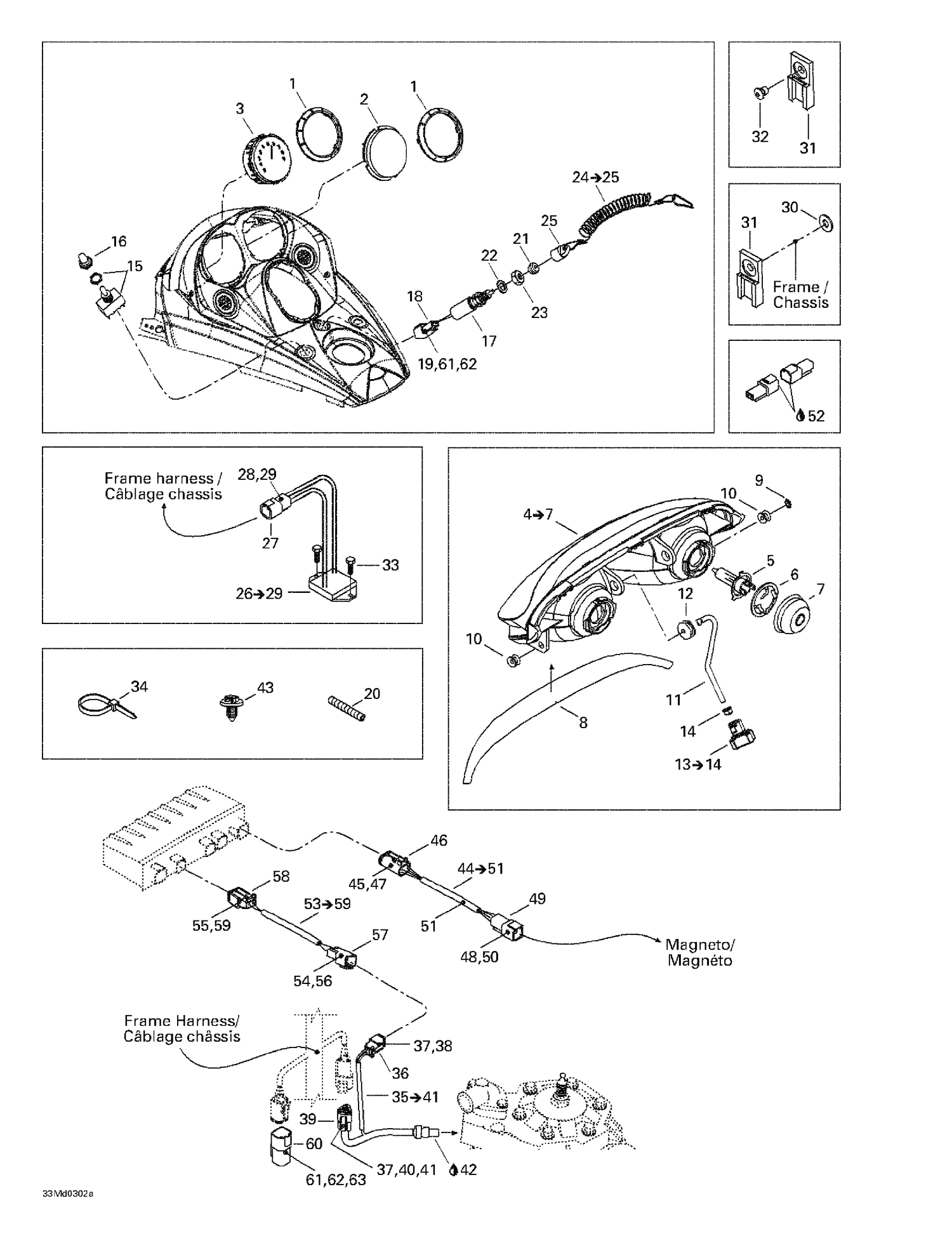

Parts Catalog

10- Electrical System

Parts (57)

Ref	Part Number	Description
1	515179005	Gauge Ring This part replaces 515175651.
2	515175901	GAUGE HOLE COVER - Call your local BRP dealership
3	515175900	Tachometer
5	515176274	Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410504401.
6	515176385	BULB HOLDER - Call your local BRP dealership This part replaces 515175910.
7	515175911	COVER - Call your local BRP dealership
8	516001328	HEADLAMP DECAL - Call your local BRP dealership
9	732610072	Push Nut
10	515175760	HEADLAMP BUSHING - Call your local BRP dealership
11	515175521	ADJUSTER ROD - Call your local BRP dealership
12	415100800	Grommet - Call your local BRP dealership
14	233261414	Hex. Flange Elastic Nut M6 x 1.0
15	410107300	Switch (Heating Grip)
16	515175281	Switch Cover
17	515175653	Brake Switch
18	515175665	Male Terminal Housing, 2 Circuits
19	409207600	Male Lock, 3 Circuits
20	219704424	Vinyl Tubing, Low Temp 3000Mm Long
21	570151100	Plunger Cap
22	234001410	Flat Washer 10 mm
23	515145900	Switch Nut
25	572012200	Switch Cap
27	278001477	FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
28	515175568	Male Terminal
29	278001478	MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
30	517225900	Flat Washer
31	270000141	Clip This part replaces 515175917.
32	390402200	Pop Rivet 3/16"
33	210261650	Hex. Flange Screw M6 X 16 This part replaces 210261680.
34	293750001	Tie Wrap 94 mm
36	515175670	Female Terminal Housing, 2 Circuits
37	278000632	Female Terminal
38	515175675	Female Lock, 2 Circuits
39	515175671	FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
40	515175676	Female Lock, 3 Circuits
41	293000052	Sealing Cap
42	219704455	Was 293800018 Loctite 592, 50 ml
43	293730040	Mount Dart This part replaces 293730018.
45	278000632	Female Terminal
46	278001739	Mode/Set Switch
47	278000738	Male Lock, 4 Circuits
48	409014800	MALE TERMINAL - Call your local BRP dealership
49	710000045	MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership
50	710000046	MALE LOCK, 4 CIRCUITS - Call your local BRP dealership
51	219704425	Tubing 6 Mm 3000Mm Long
52	219704453	Was 293550004 Dielectric Grease, 150 g
54	278000631	Male Terminal
55	278000632	Female Terminal
56	409207500	Male Lock, 2 Circuits
57	515175665	Male Terminal Housing, 2 Circuits
58	515175670	Female Terminal Housing, 2 Circuits
59	515175706	Female Lock, 2 Circuits
60	515175668	Male Terminal Housing, 6 Circuits
61	278000631	Male Terminal
62	515175823	Male Terminal
219704424	Vinyl	Tubing, Low Temp 3000Mm Long 219704424
293750008	Tie	Wrap 368 mm 293750008
