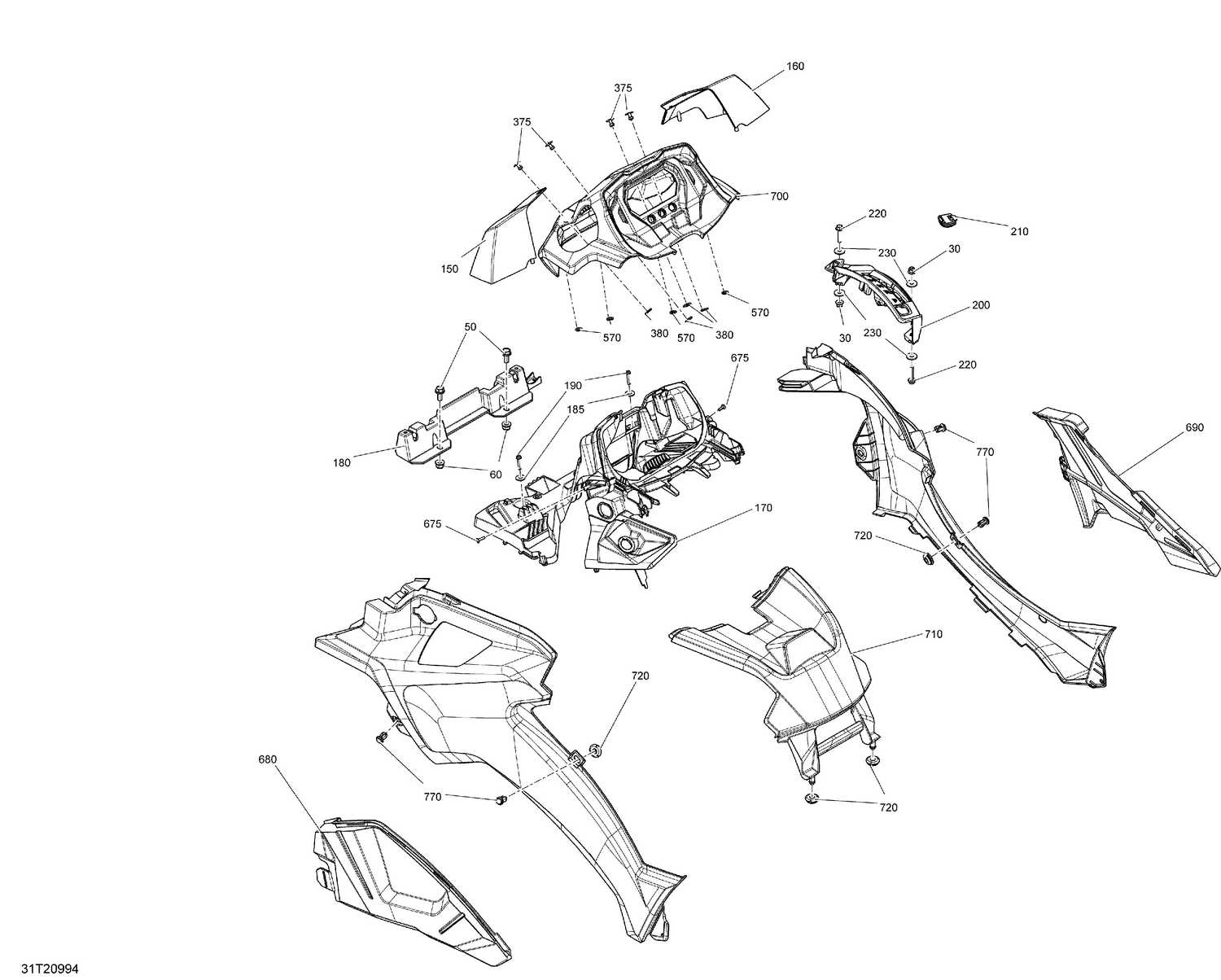

09- Body - Middle Section - Squadron Green - PRO+
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 233261434 | Flange Elastic Nut M6 |
| 50 | 207682044 | Hex. Flange Screw M8 X 20 |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 150 | 705006134 | LH Air Deflector |
| 160 | 705006135 | RH Air Deflector |
| 170 | 715006101 | Console Support Ass'y This part replaces 715003984. |
| 180 | 705010406 | Console Support Insert |
| 185 | 234062600 | Flat Washer M6, Stainless |
| 190 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 200 | 715006169 | Shifter Gate |
| 210 | 705005003 | Shiftgate Trim |
| 220 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 230 | 224061201 | Flat Washer |
| 375 | 293150104 | Pop Rivet 3/16" |
| 380 | 517124300 | Washer |
| 570 | 732610072 | Push Nut |
| 675 | 250000723 | Phillips Screw K40 X 16 |
| 680 | 715007008 | Deflector_Body Panel Kit This part replaces 705014060. |
| 690 | 705003444 | Engine Cover |
| 710 | 715005837 | Dash Kit |
| 720 | 705003264 | Grommet |
