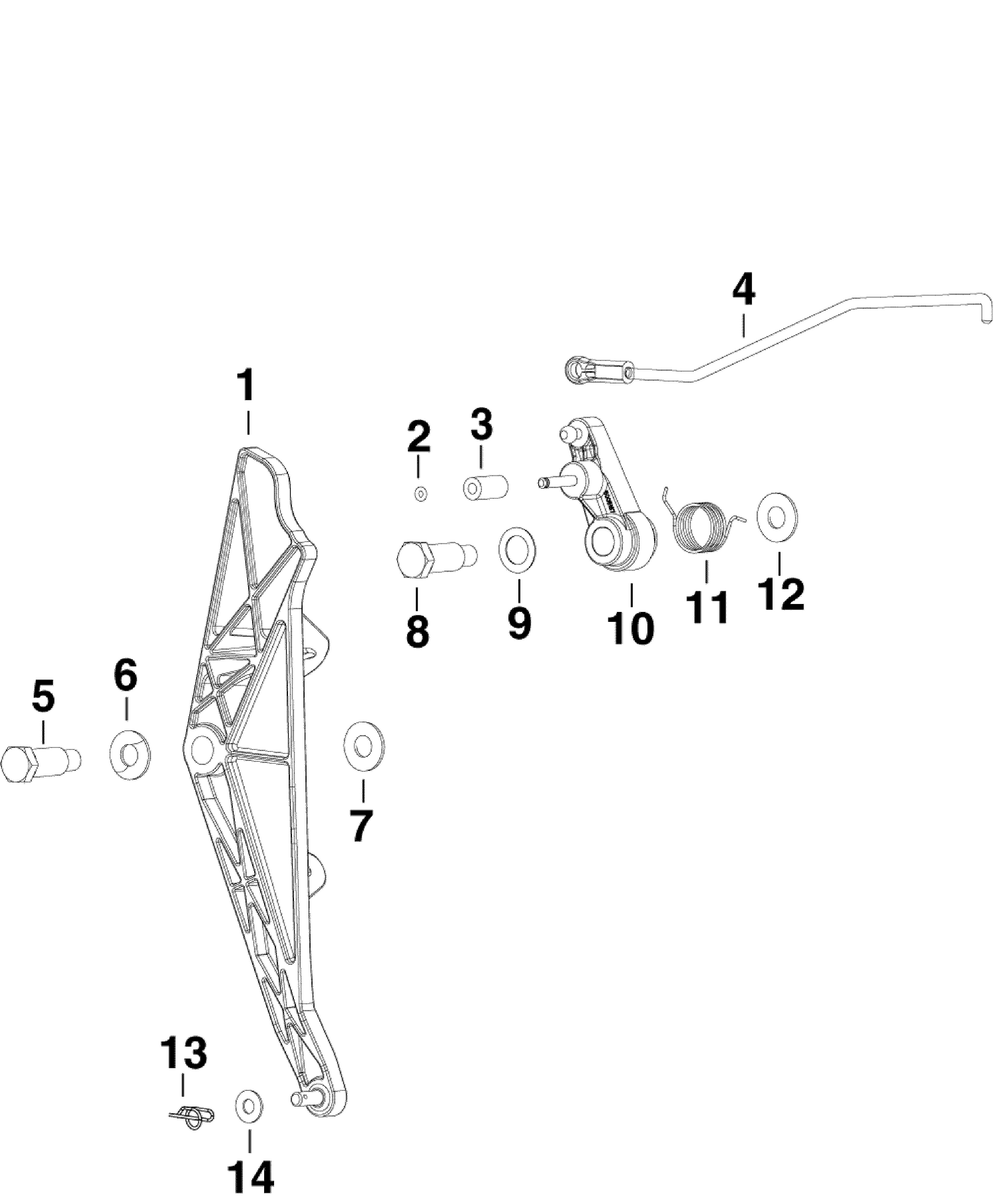

04-0_THROTTLE LINKAGE
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5005372 | CAM, Throttle |
| 2 | 0324678 | JOINT TORIQUE Galet de came de papillon |
| 3 | 0432639 | GALET, contre-came |
| 4 | 5005887 | LINK, Throttle lever to actuator |
| 5 | 0347338 | SCREW, Cam to C/C |
| 7 | 0908398 | WASHER |
| 8 | 0347338 | SCREW, Cam to C/C |
| 9 | 0127386 | RONDELLE |
| 10 | 5005187 | THROTTLE LEVER |
| 11 | 0353032 | SPRING , Throttle lever return |
| 12 | 0908398 | WASHER |
