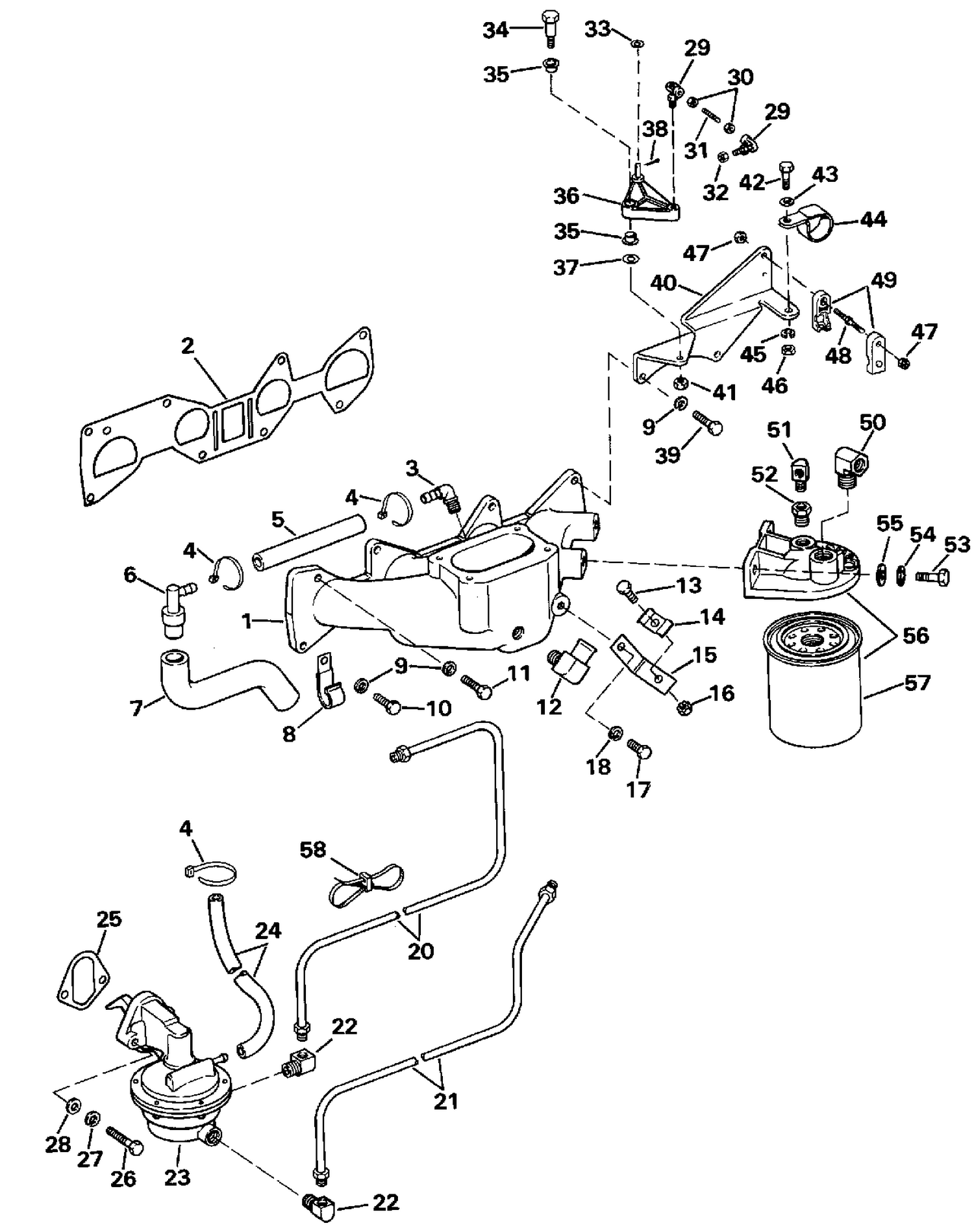

INTAKE MANIFOLD & FUEL SYSTEM

INTAKE MANIFOLD & FUEL SYSTEM

Parts (40)

RefPart NumberDescription
1 0912470 INTAKE MANIFOLD
2 0912471 GASKET, Intake manifold
3 0174177 ELBOW KIT This part replaces 0909985.
4 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
5 0912577 HOSE, PCV valve to intake manifold
6 0984710 PCV Valve
7 0912578 HOSE, Breather to PCV valve
10 0912495 SCREW, Elbow, lower
11 0912496 SCREW, Coupling
12 0914615 ELBOW, Water hose
13 0328731 VIS, câble de verrouillage This part replaces 0307055.
14 0912946 CLAMP, Fuel lines
15 0912945 BRACKET, Fuel lines
16 3852420 LOCKNUT, Throttle lever This part replaces 0900402.
20 0986477 FUEL LINE, Pump to carb.
21 0985092 FUEL LINE, Filter to pump
22 3852453 FITTING, Cover, return line This part replaces 0908644.
23 0985094 FUEL PUMP
24 HOSE, Overflow, 31" (787mm) long
25 3852600 GASKET, Fuel pump opening This part replaces 0912559.
26 0913010 SCREW, Fuel pump
28 0306453 LOCKWASHER, Fuel pump
29 0379926 BALL JOINT
31 0914586 LINK, Throttle lever
34 0911959 PIVOT PIN
35 0911957 BUSHING, Pivot
36 0984631 THROTTLE LEVER
39 0912496 SCREW, Coupling
40 0914585 BRACKET, Throttle control
42 0306834 BOLT, Throttle lever retainer
44 3852457 CLAMP, Hose to exhaust manifold This part replaces 0908749.
45 0120177 L'WASHER, Alternator to brkt
48 3850682 STUD, Anchor block This part replaces 0914682.
49 3852836 ANCHOR BLOCK This part replaces 0913795.
50 0174179 ELBOW, Filter inlet
51 0310924 CLAMP, Main cable to adapter
52 3852465 BUSHING This part replaces 0908986.
53 0306414 SCREW
54 0120177 L'WASHER, Alternator to brkt
56 0174176 FUEL FILTER & BRACKET ASSY
