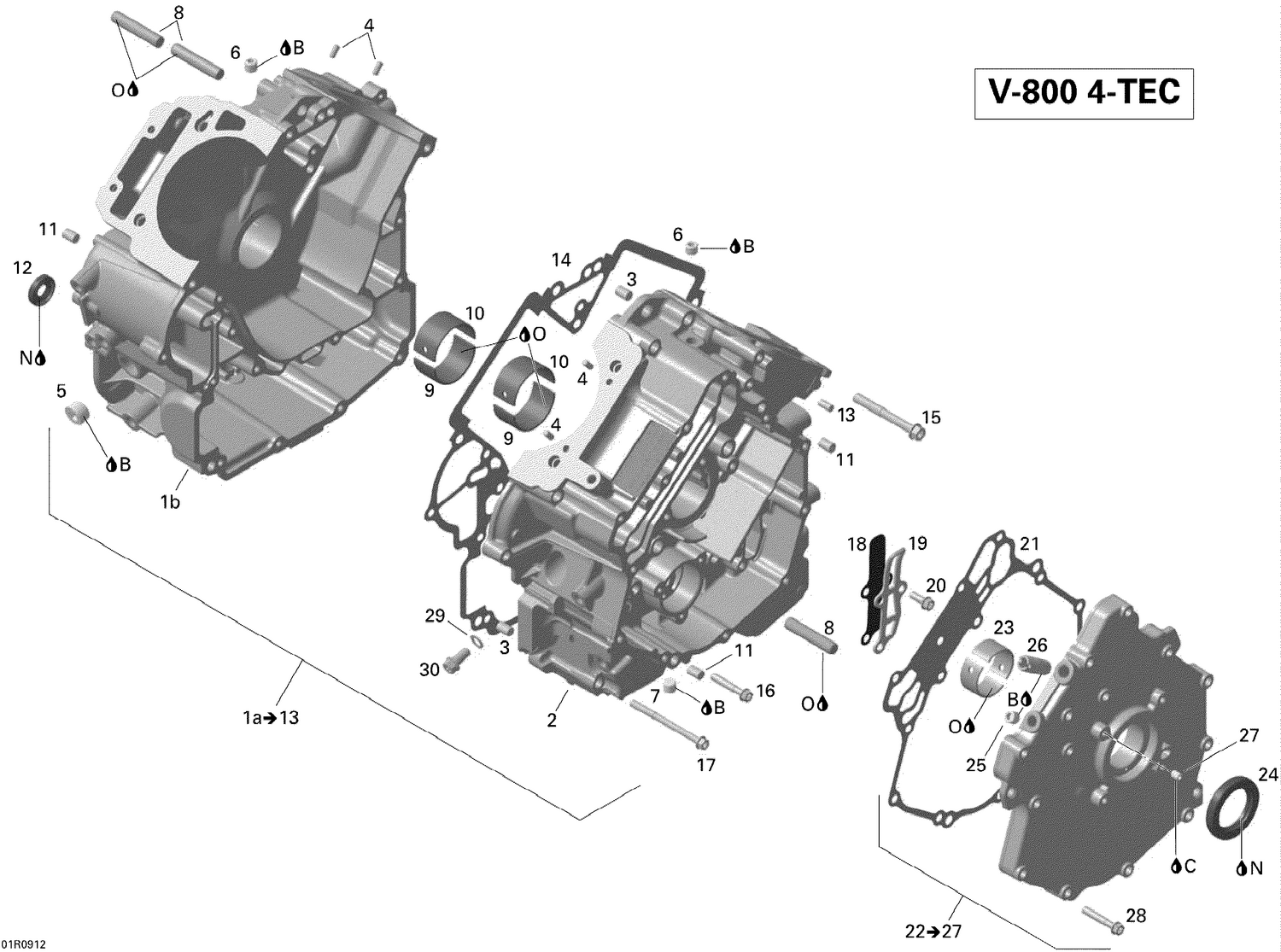

01- Crankcase
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| C | 219703000 | Sealant Loctite 648 This part replaces 413711400. |
| N | 293550030 | Grease, Super Lube |
| 1b | Not | Available As Spare Part - Crankcase, MAG Side |
| 2 | Not | Available As Spare Part - Crankcase, PTO Side |
| 3 | 420632010 | Center Pin 8 X 12 |
| 4 | 420929650 | Drive Pin 5 X 10 |
| 5 | 420240170 | Plug Screw M18 X 1.5 - Call your local BRP dealership |
| 6 | 420641323 | Plug Screw M10 X 1 |
| 7 | 420840658 | Plug Screw M12x1,5 This part replaces 420840657. |
| 8 | 420229302 | Location Pin 10 M6x50 This part replaces 420229301. |
| 9 | 420233960 | Plain Bearing |
| 10 | 420233965 | Plain Bearing |
| 11 | 420632010 | Center Pin 8 X 12 |
| 12 | 420650315 | Oil Seal This part replaces 420650310. |
| 13 | 420932780 | Needle Pin |
| 14 | 420651220 | Gasket |
| 15 | 420440402 | Torx Flange Screw M8 X 65 |
| 16 | 420641258 | Torx Flange Screw M6 X 35 |
| 17 | 420440657 | Torx Flange Screw M6 X 75 This part replaces 420440652. |
| 18 | 420224721 | Reed Valve This part replaces 420224720. |
| 19 | 420224725 | Reed Valve Stop |
| 20 | 420641048 | Torx Flange Screw M6 X 16 |
| 21 | 420651211 | Gasket |
| 23 | 420233995 | Bearing Sleeve |
| 24 | 420631933 | Oil Seal This part replaces 420631932. |
| 25 | 420641323 | Plug Screw M10 X 1 |
| 26 | 420256332 | Hose Nipple |
| 27 | 420841771 | SET SCREW M6 X 8 - Call your local BRP dealership |
| 28 | 420641258 | Torx Flange Screw M6 X 35 |
| 29 | 420950141 | Sealing Ring |
| 30 | 420440852 | Torx Flange Screw M8 X 16 |
