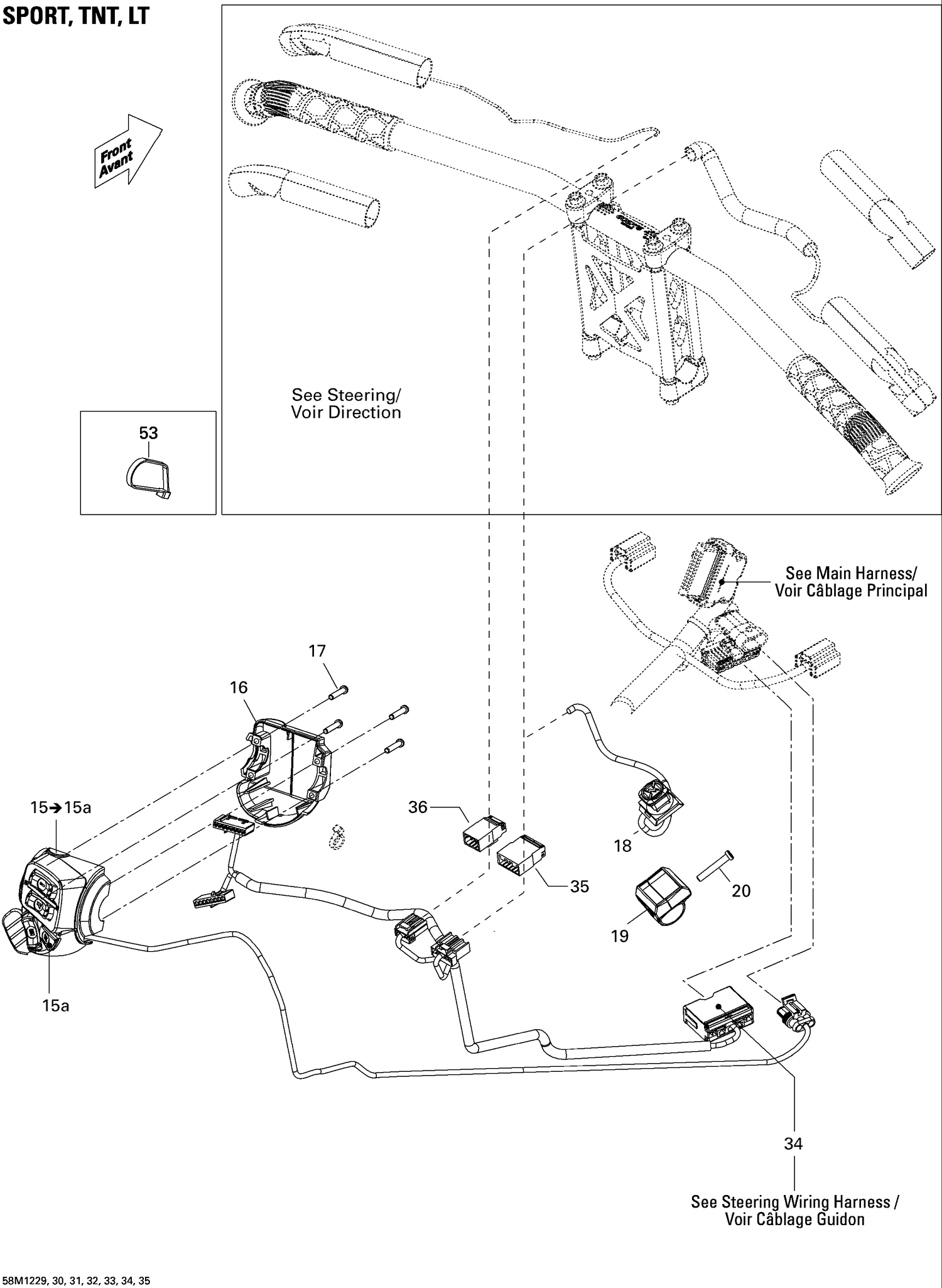

10- Electrical Accessories, Steering
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 15a | 515176088 | Start/RER Button |
| 16 | 515175926 | Switch Housing Plate |
| 17 | 250000263 | Torx Screw #8-18 |
| 18 | 515177362 | Emergency Stop Switch This part replaces 515177061. |
| 19 | 515177310 | Emergency Stop Switch Support This part replaces 515176825. |
| 20 | 250000263 | Torx Screw #8-18 |
| 34 | 515176867 | STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership |
| 35 | 515175817 | Male Terminal Housing, 8 Circuits |
| 36 | 515175662 | Male Terminal Housing, 6 Circuits |
| 53 | 293750001 | Tie Wrap 94 mm |
| 53 | 293750002 | Tie Wrap 142 mm |
| 53 | 293750008 | Tie Wrap 368 mm |
| 53 | 414115200 | Tie-Rap 180 mm |
