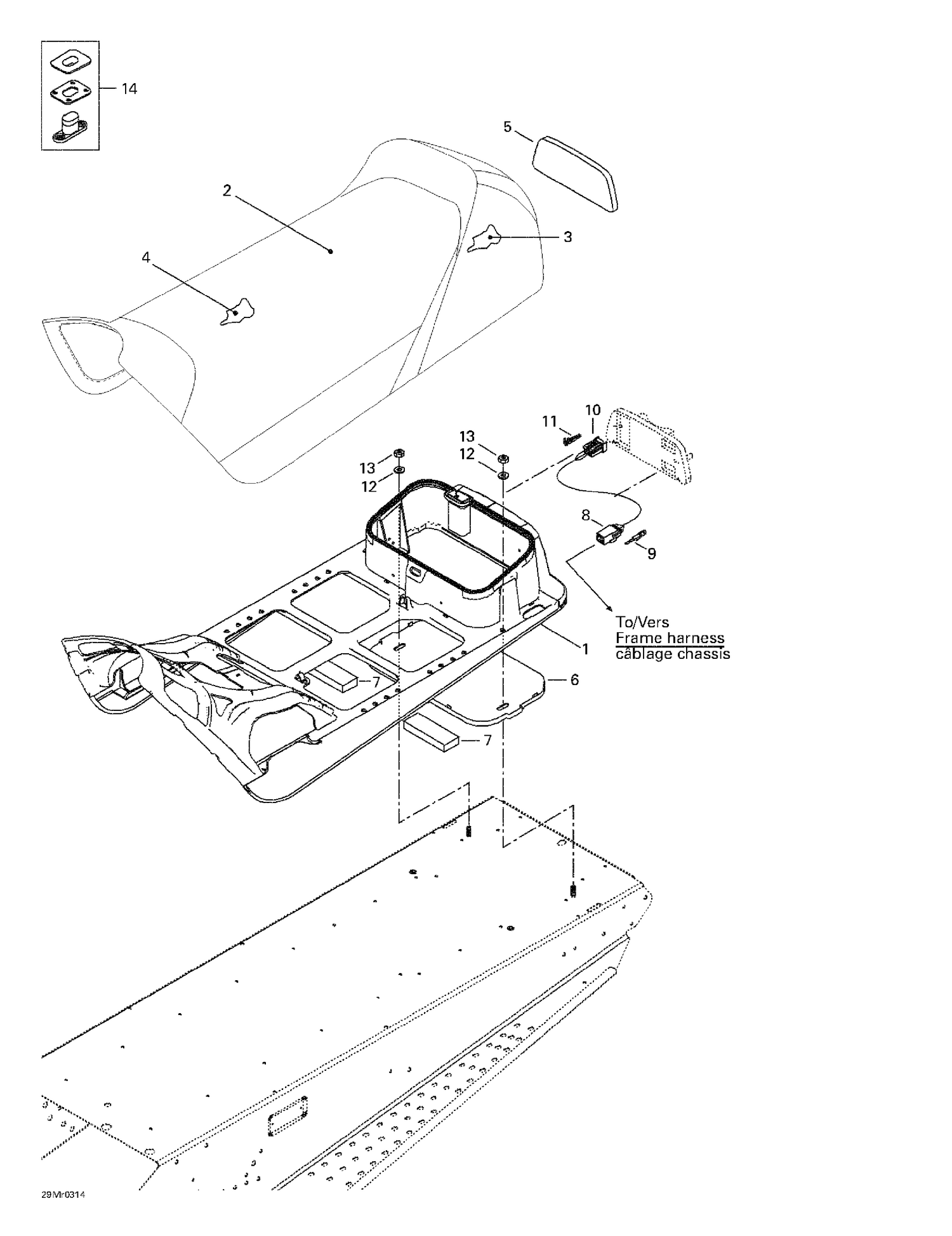

09- Seat
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510004125 | Seat Base |
| 2 | 510004067 | Seat cover |
| 3 | 510003945 | Rear Seat Foam |
| 4 | 510004115 | Seat Foam |
| 5 | 510003989 | Tail Lamp Foam |
| 7 | 510004157 | Foam |
| 7 | 572107601 | UNDER CHEST - Call your local BRP dealership |
| 8 | 515175494 | Male Housing, 3 Circuits |
| 9 | 515175232 | Male Terminal |
| 10 | 515175495 | Female Housing, 3 Circuits |
| 11 | 515175231 | Female Terminal |
| 12 | 234082410 | Flat Washer 8 mm |
| 13 | 232581414 | Hex. Elastic Stop Nut M8 |
