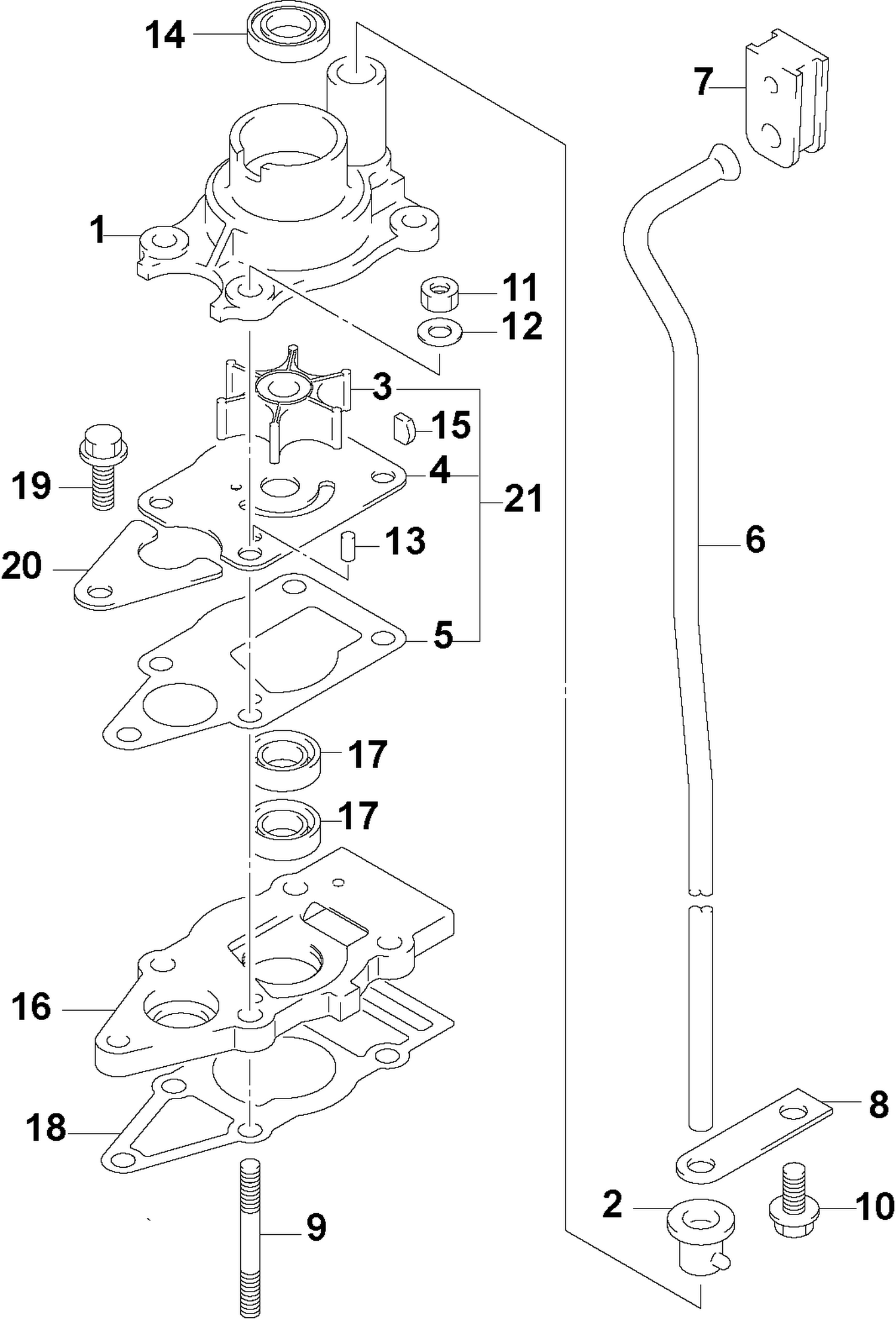

WATER PUMP
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5031195 | CASE, WATER PUMP |
| 2 | 0503017 | GROMMET, WATER PUMP |
| 3 | 5030188 | IMPELLER, Water pump |
| 4 | 5033380 | PANEL, PUMP CASE UNDER |
| 5 | 5033381 | GASKET, PUMP CASE PANEL |
| 6 | 5033382 | TUBE, WATER (15 in. Models) |
| 6 | 5033383 | TUBE, WATER (20 in. Models) |
| 8 | 5030194 | GUIDE, Water tube |
| 9 | 5030032 | BOLT, STUD |
| 13 | 5031205 | PIN, KNOCK |
| 14 | 5030112 | SEAL, OIL |
| 15 | 5030137 | KEY |
| 16 | 5033427 | HOUSING, DRIVE SHAFT |
| 18 | 5033428 | GASKET, DRIVE SHAFT BRG HSG |
| 19 | 5030391&2502 | BOLT (6X25mm) |
| 20 | 5034174 | PLATE, SHIFT ROD GUIDE |
