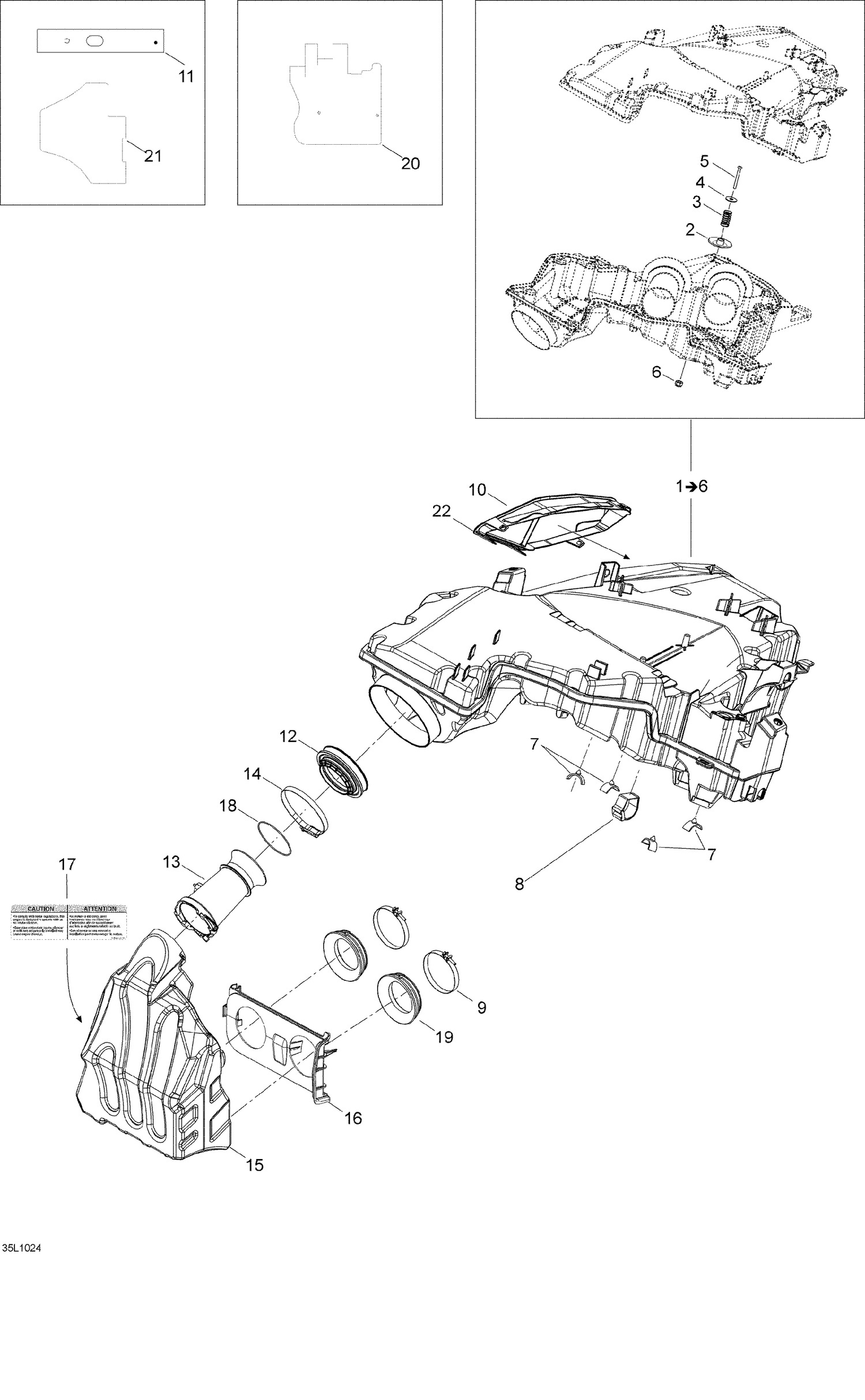

02- Air Intake System
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000575 | Check Valve |
| 3 | 508000576 | Spring |
| 4 | 224060201 | Flat Washer |
| 5 | 205444086 | Socket Head Screw M4 X 40 |
| 6 | 232541414 | Elastic Stop Nut M4 |
| 7 | 508000537 | Stopper |
| 8 | 508000820 | Velcro-Strip This part replaces 508000532. |
| 9 | 508000346 | Gemi Clamp |
| 10 | 508000609 | Air Filter |
| 11 | 508000677 | Reflective Sheet This part replaces 508000618. |
| 12 | 508000567 | Boot |
| 13 | 508000662 | Flute This part replaces 508000542. |
| 14 | 514052983 | Clamp |
| 15 | 508000610 | Primary Chamber Ass'y |
| 16 | 508000613 | Adapter plate |
| 17 | 516003371 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 18 | 293300115 | O-Ring |
| 19 | 508000614 | Intake Adapter |
| 20 | 508000675 | Reflective Sheet This part replaces 508000604. |
| 21 | 508000622 | Reflective Sheet |
