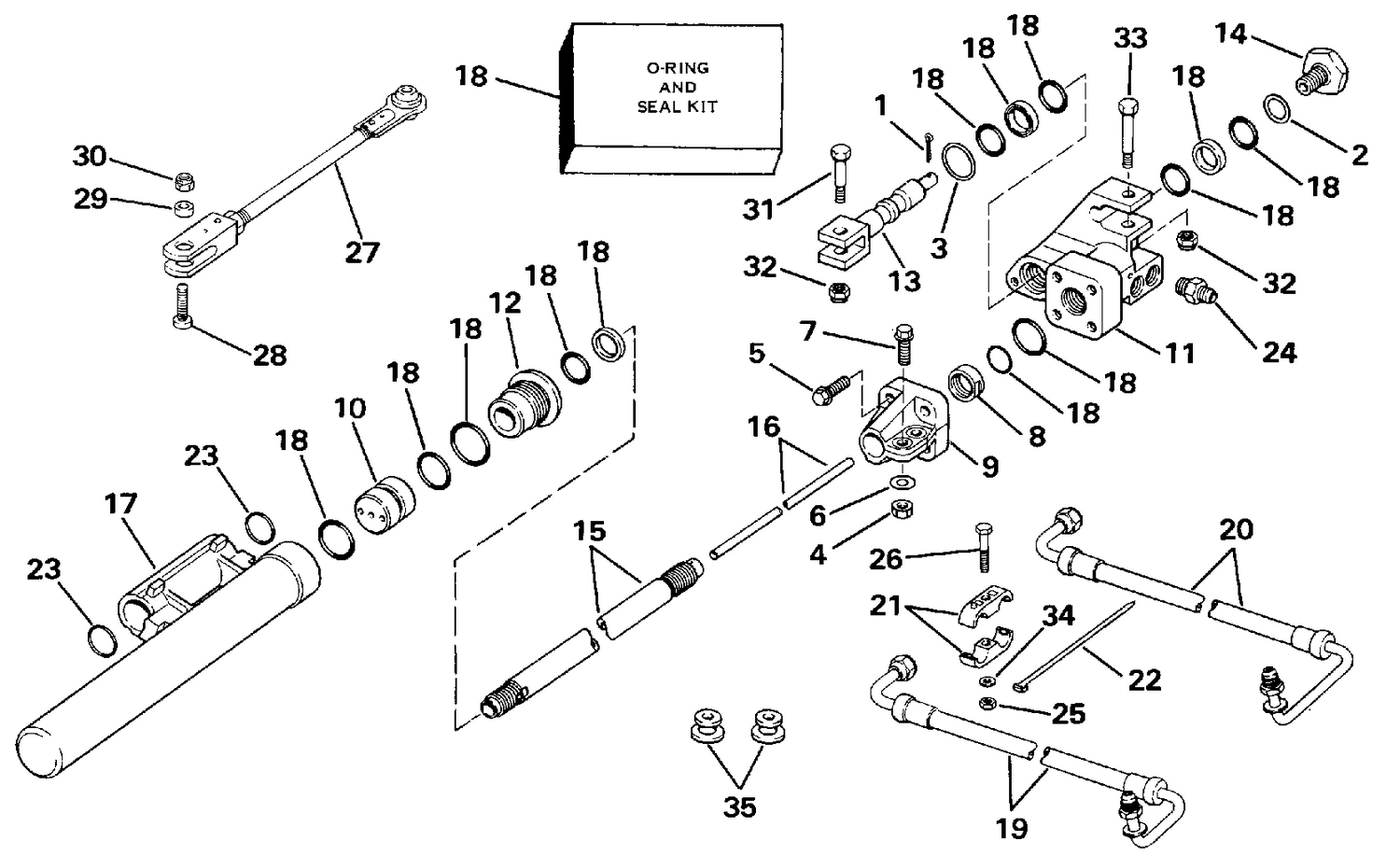

| Ref | Part Number | Description |
|---|
| 2 |
0912354 |
SHIM, Spool valve, small end |
| 3 |
0912382 |
SHIM, Spool value, large end |
| 8 |
0912090 |
LOCKNUT, Tube to spool valve housing |
| 9 |
0912089 |
SUPPORT, Tube to spool valve housing |
| 10 |
0912080 |
PISTON, Cylinder |
| 11 |
0984144 |
HOUSING & PLUG ASSY., Port |
| 11 |
0984145 |
HOUSING & PLUG ASSY., Stbd |
| 12 |
0912082 |
CYLINDER, Port |
| 13 |
0984484 |
SPOOL VALVE |
| 14 |
0912381 |
END CAP |
| 15 |
0912085 |
TUBE, Piston to spool valve housing |
| 16 |
0912086 |
TUBE, Inner |
| 17 |
0912087 |
CYLINDER, Port |
| 17 |
0912088 |
CYLINDER, Starboard |
| 19 |
0984191 |
HOSE, Pressure hose to valve hsg. |
| 19 |
0984192 |
HOSE, Pressure hose to valve hsg. |
| 20 |
0984171 |
HOSE, Return tube to valve hsg. |
| 20 |
0984172 |
HOSE, Return tube to valve hsg. |
| 23 |
0314491 |
O RING |
| 26 |
0325115 |
SCREW, Oil tank/EMM mount |
| 27 |
0984138 |
CONNECTOR ROD ASSY |
| 0397938 |
0397938 |
DRAG LINK ASSY. |
| 0984136 |
0984136 |
CYLINDER & VALVE ASSY |
| 0984137 |
0984137 |
CYLINDER & VALVE ASSY. |
| 0984214 |
0984214 |
STEERING CYLINDER KIT, Port |
| 0984215 |
0984215 |
STEERING CYLINDER KIT Starboard |
