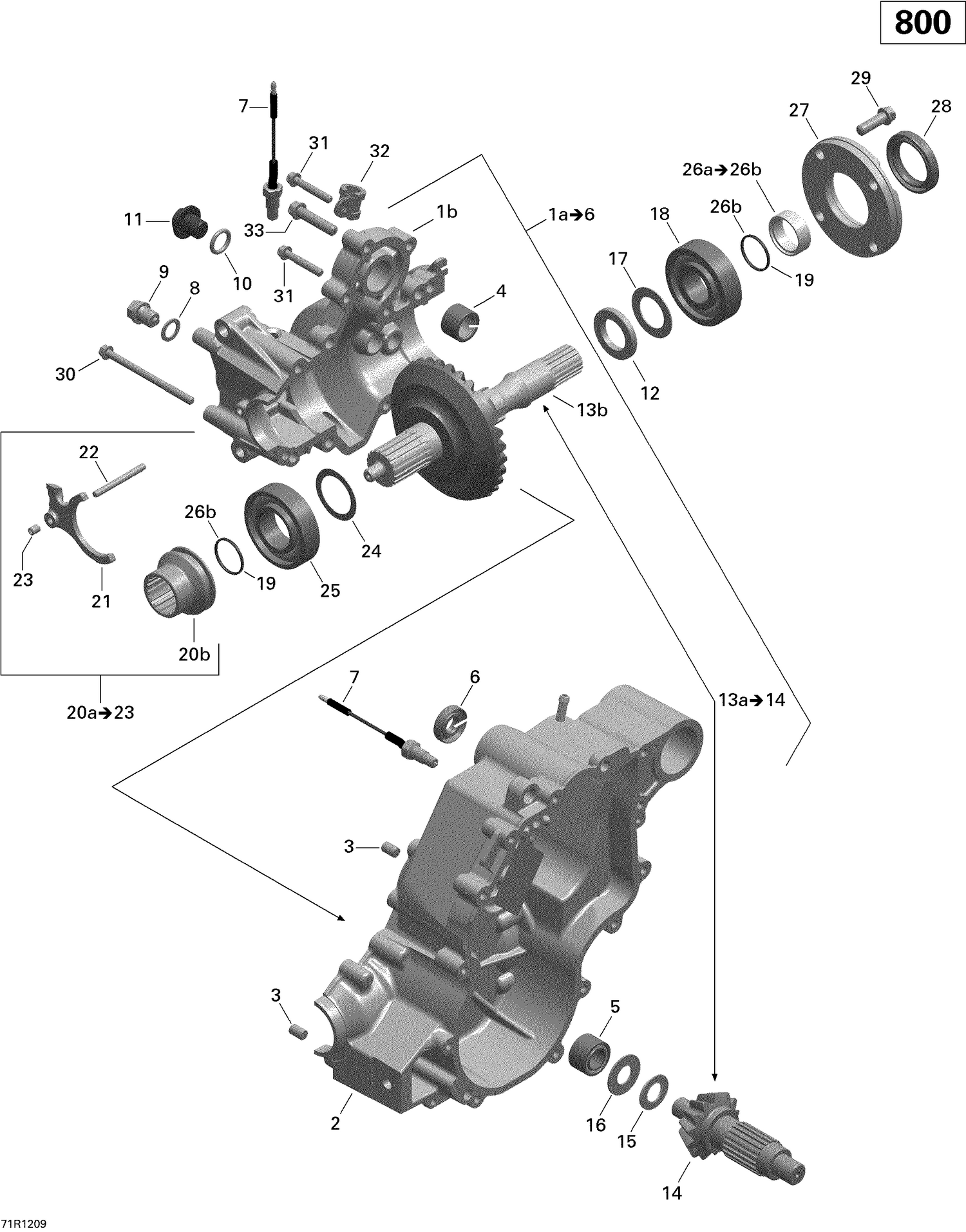

| Ref | Part Number | Description |
|---|
| 1b |
Not |
Available As Spare Part - Gear Housing, Right |
| 2 |
Not |
Available As Spare Part - Gear Housing, Center |
| 3 |
420632010 |
Center Pin 8 X 12 |
| 4 |
420832240 |
Needle Bushing |
| 5 |
420232085 |
Needle Bushing |
| 6 |
420250450 |
Oil Seal |
| 7 |
420640192 |
Contact Screw M10 Ass'y With Cable |
| 8 |
420250640 |
Copper Washer |
| 9 |
420241787 |
Magnetic Drain Plug M12 This part replaces 420241786. |
| 10 |
420650350 |
O-Ring |
| 11 |
420241662 |
Plug Screw M14 X 1.5 This part replaces 420241660. |
| 12 |
420247772 |
Distance Ring This part replaces 420247770. |
| 13b |
Not |
Available As Spare Part - Drive Shaft |
| 14 |
Not |
Available As Spare Part - Bevel Gear, 13 Teeth |
| 15 |
420632300 |
Axial Needle Bearing |
| 16 |
420281306 |
Thrust Washer Set, MAG Side |
| 17 |
420281300 |
Washer Thrust Set This part replaces 420281312. |
| 18 |
420932822 |
Ball Bearing This part replaces 420932824. |
| 19 |
420631612 |
O-Ring This part replaces 420631610. |
| 20b |
Not |
Available As Spare Part - Shifting Sleeve |
| 21 |
Not |
Available As Spare Part - Shifting Fork |
| 22 |
Not |
Available As Spare Part - Pin |
| 23 |
420841772 |
Set Screw M6 X 8 |
| 24 |
420944584 |
Shim 0.5 |
| 25 |
420932580 |
Ball Bearing This part replaces 420232785. |
| 26b |
420631612 |
O-Ring This part replaces 420631610. |
| 27 |
420611444 |
Bearing Cover This part replaces 420611440. |
| 28 |
420950089 |
Oil Seal This part replaces 420950087. |
| 29 |
420440372 |
Torx Flange Screw M8 X 25 |
| 30 |
420641228 |
Torx Flange Screw M6 X 85 |
| 31 |
420641258 |
Torx Flange Screw M6 X 35 |
| 32 |
420251690 |
CABLE CLAMP - Call your local BRP dealership |
