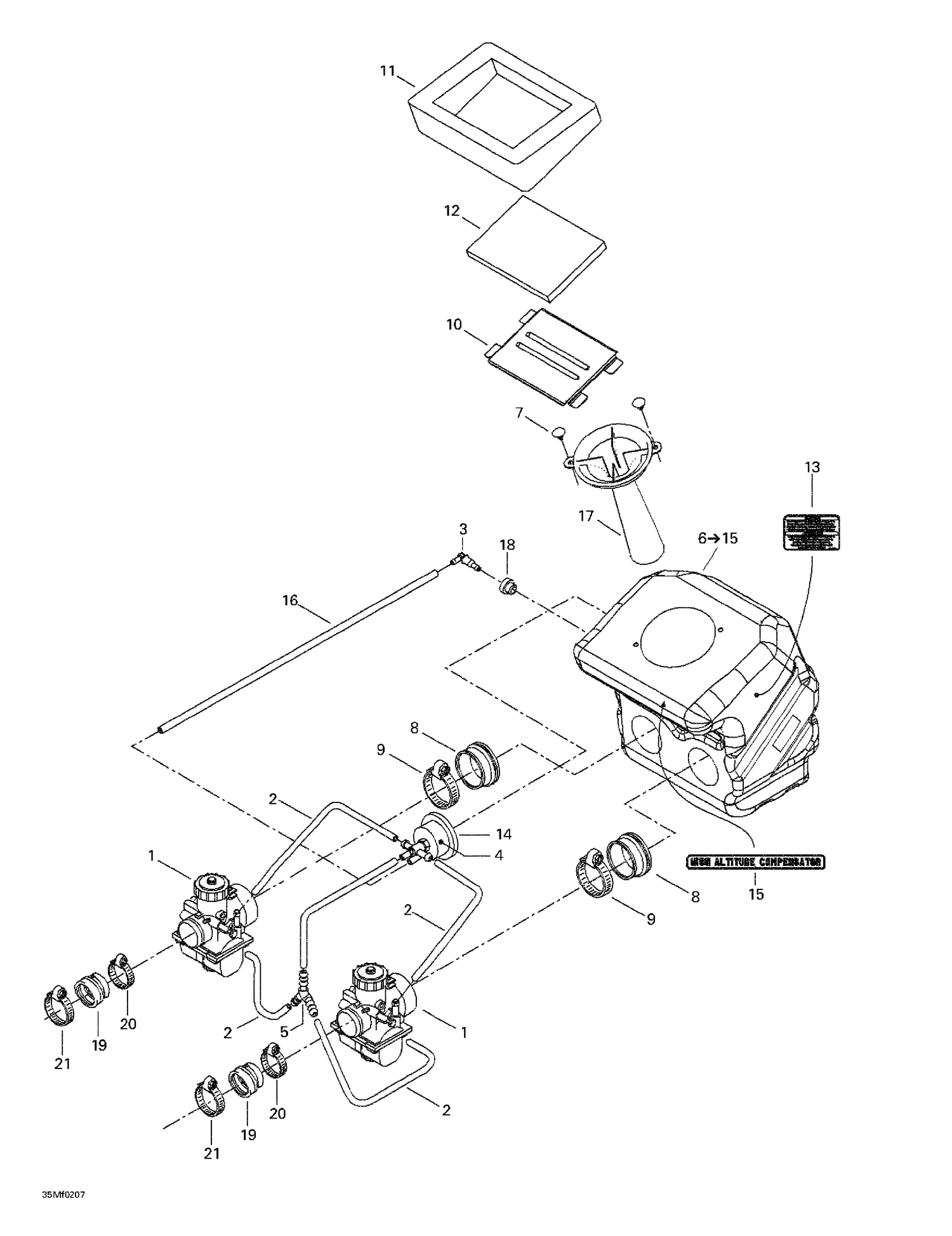

01- High Altitude Compensator (h.a.c.)
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 403138706 | Carburetor VM 34-578 |
| 2 | 219704410 | Polyurethane Hose 10000Mm Long |
| 3 | 414580600 | Elbow Male Connector |
| 4 | 420996468 | High Altitude Compensator |
| 7 | 414644300 | Black, Dart |
| 8 | 508000203 | Adaptor 34 mm |
| 9 | 508000217 | Gear Clamp |
| 10 | 508000004 | INTAKE GRILL - Call your local BRP dealership |
| 11 | 508000245 | Outer Foam |
| 12 | 508000154 | Air Filter |
| 13 | 516002715 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191. |
| 14 | 570044000 | H.A.C. Adaptor |
| 15 | 414857500 | H.A.C. Decal |
| 16 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 17 | 572054803 | Inlet Tube |
| 18 | 513032908 | Grommet |
| 19 | 512059396 | Carburetor Adaptor |
| 20 | 512059395 | Clamp |
