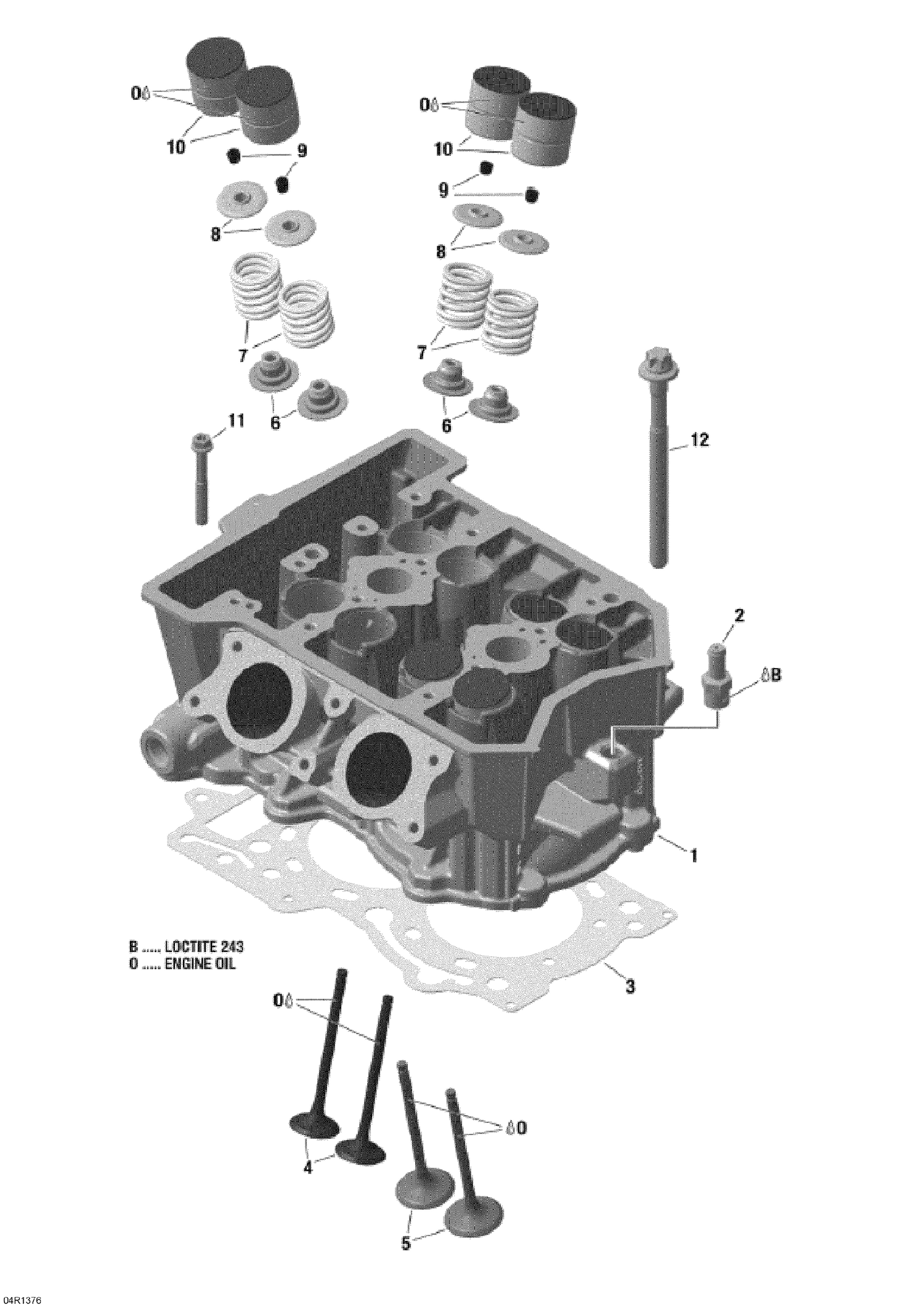

01- Cylinder Head
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| 1 | 420623807 | Cylinder head Ass'y This part replaces 420623805. |
| 2 | 420441420 | Hose Nipple |
| 4 | 420855144 | Exhaust Valve 25MM This part replaces 420855140. |
| 5 | 420855131 | Intake Valve 29MM This part replaces 420855130. |
| 7 | 420939540 | Valve Spring |
| 8 | 420855150 | Valve Spring Retainer |
| 9 | 420254630 | Cotter Valve |
| 10 | 420855165 | Valve Lifter Bucket This part replaces 420855161. |
| 11 | 420440324 | Torx Flange Screw M6 X 45 |
| 12 | 420940945 | Torx Flange Screw M9 X 113 |
