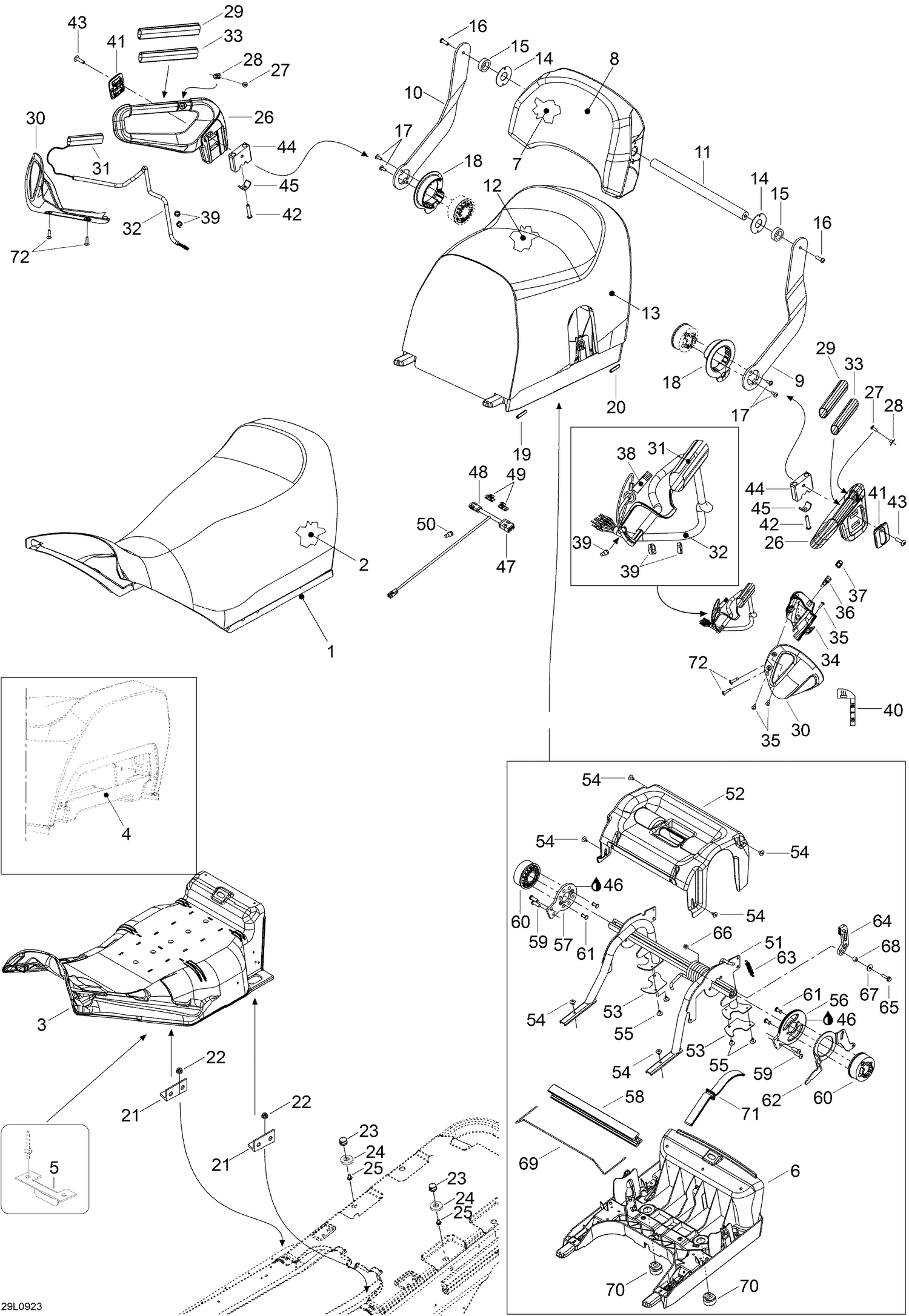

| Ref | Part Number | Description |
|---|
| 1 |
605353494 |
Cover |
| 2 |
605353493 |
Foam |
| 3 |
605353495 |
Seat base |
| 4 |
605353794 |
Base |
| 5 |
605453989 |
Bracket |
| 6 |
Not |
Available As Spare Part - Seat base, rear |
| 7 |
510004365 |
BACKREST FOAM - Call your local BRP dealership |
| 8 |
510004643 |
Cover |
| 9 |
510004375 |
LH ARM, BLACK - Call your local BRP dealership |
| 10 |
510004373 |
RH ARM, BLACK - Call your local BRP dealership |
| 11 |
510004377 |
Shaft |
| 12 |
605252444 |
Foam |
| 13 |
605252445 |
Cover |
| 14 |
510004379 |
Washer |
| 15 |
510004378 |
Rubber shim |
| 16 |
205982586 |
SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 17 |
250000746 |
Torx Truss M/S M8 X 16 This part replaces 250000198. |
| 18 |
510004384 |
SPACER - Call your local BRP dealership |
| 19 |
510004610 |
FRONT SEAT CORNER - Call your local BRP dealership |
| 20 |
510004611 |
REAR SEAT CORNER - Call your local BRP dealership |
| 21 |
605454287 |
Support plate |
| 22 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 23 |
510004417 |
SEAT STUD - Call your local BRP dealership |
| 24 |
20017 |
Serrated lock washer M6 |
| 25 |
207561044 |
Flange Screw M6 X 10, Scotch Grip |
| 26 |
510005862 |
LH Handle This part replaces 510004368. |
| 26 |
510005865 |
RH HANDLE - Call your local BRP dealership This part replaces 510004367. |
| 27 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 28 |
293100003 |
Nut |
| 29 |
510004449 |
Grip |
| 30 |
510004415 |
R.H. Deflector |
| 30 |
510004416 |
L.H. Deflector |
| 31 |
515176393 |
Heating element |
| 32 |
515175506 |
TUBING - Call your local BRP dealership |
| 33 |
510004709 |
HANDLE REINFORFORCEMENT - Call your local BRP dealership |
| 34 |
510004566 |
Housing switch |
| 35 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 36 |
510004413 |
Switch |
| 37 |
510004414 |
Prorector switch |
| 38 |
515176241 |
LH HANDLE HARNESS - Call your local BRP dealership |
| 39 |
414115200 |
Tie-Rap 180 mm |
| 40 |
516002835 |
HANDLE HEATER DECAL - Call your local BRP dealership |
| 41 |
510006602 |
Passenger Handle Trim This part replaces 510004405. |
| 42 |
250000220 |
SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership |
| 43 |
250000197 |
Torx Truss Screw M8 X 30 |
| 44 |
510004530 |
HANDLE LINK - Call your local BRP dealership |
| 45 |
510004565 |
HANDLE CLAMP - Call your local BRP dealership |
| 46 |
510004419 |
GRIP - Call your local BRP dealership |
| 47 |
515175817 |
Male connector |
| 48 |
515175494 |
Male connector housing |
| 49 |
515175283 |
Housing sup. |
| 50 |
414115200 |
Tie-Rap 180 mm This part replaces 27026. |
| 51 |
510004381 |
SUPPORT - Call your local BRP dealership |
| 52 |
510004423 |
Foam support |
| 53 |
510004500 |
WEAR PLATE - Call your local BRP dealership |
| 54 |
293150104 |
Pop Rivet 3/16 |
| 55 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 56 |
510004391 |
Sprocket |
| 57 |
510004393 |
LINK PLATE - Call your local BRP dealership |
| 58 |
510005496 |
LINK TUBE - Call your local BRP dealership This part replaces 510004394. |
| 59 |
205982586 |
SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 60 |
510005425 |
SPACER - Call your local BRP dealership This part replaces 510004390. |
| 61 |
293150129 |
STEEL RIVET - Call your local BRP dealership |
| 62 |
510004385 |
HANDLE, BLACK - Call your local BRP dealership |
| 63 |
510004395 |
HANDLE SPRING - Call your local BRP dealership |
| 64 |
510006338 |
Adjustment Pivot This part replaces 510004392. |
| 65 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 66 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 67 |
224061201 |
Flat Washer |
| 68 |
510004425 |
BUSHING - Call your local BRP dealership |
| 69 |
510004421 |
ANCHOR SPRING - Call your local BRP dealership |
| 70 |
708000760 |
NEEDS DESCRIPTION This part replaces 708000323. |
| 71 |
510004495 |
BELT - Call your local BRP dealership |
| 72 |
250000961 |
Screw 25MM This part replaces 250000199. |
