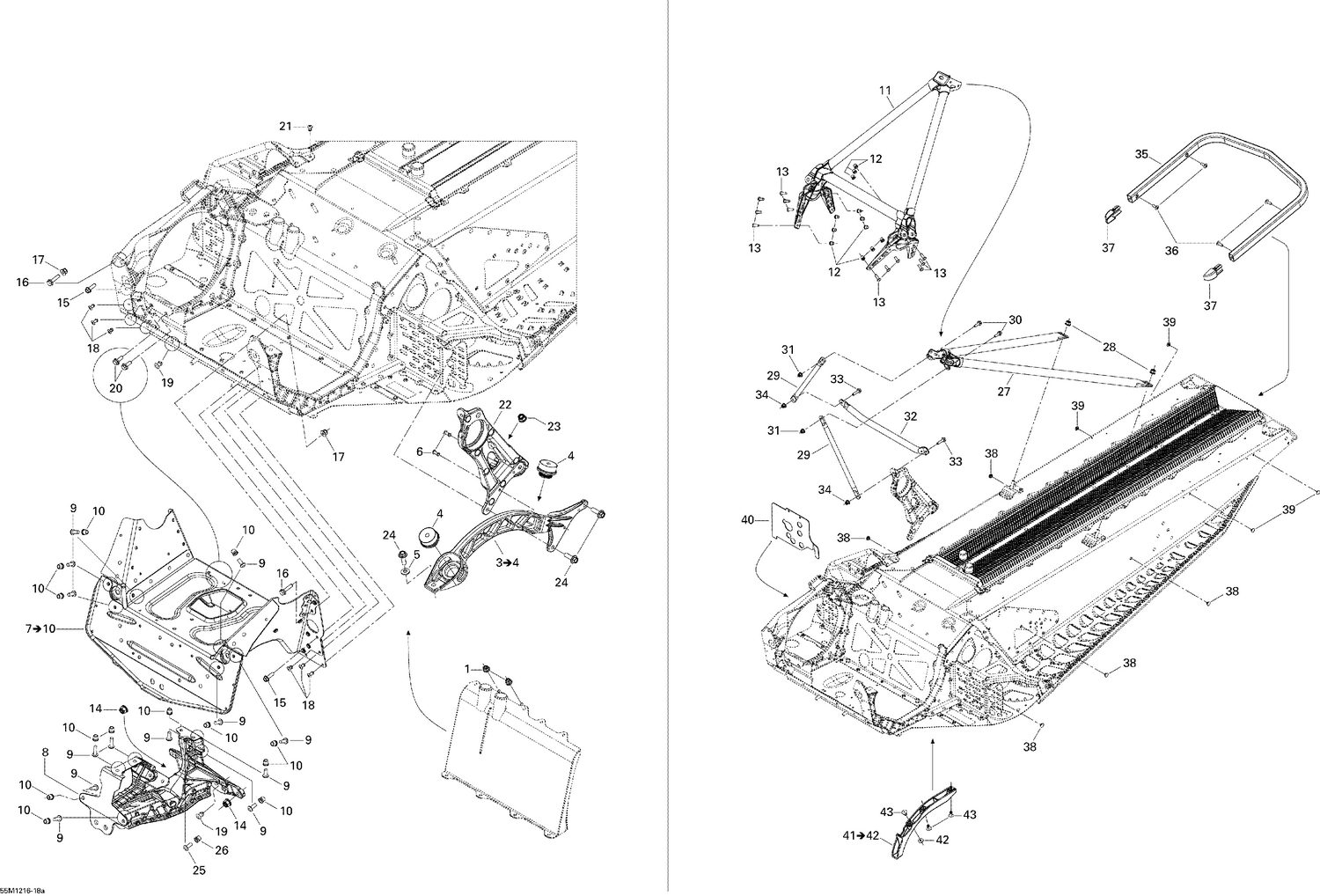

09- Frame and Components
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 4 | 512061516 | Vibration Damper This part replaces 512060295. |
| 5 | 234281474 | Conical Spring Washer M8 |
| 6 | 390407200 | Pop Rivet 3/16” |
| 8 | 518327487 | Front Suspension Support This part replaces 518325925. |
| 9 | 207662044 | Hex. Flange Screw M6 X 20 |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 518326970 | Front Member |
| 12 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 13 | 207662044 | Hex. Flange Screw M6 X 20 |
| 14 | 233281414 | Hex. Flange Elastic Nut M8 |
| 15 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 16 | 207662544 | Hex. Flange Screw M6 X 25 |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 18 | 293150191 | Monobolt Rivet, 4.8 mm |
| 19 | 293150182 | Monobolt Rivet 6.4 |
| 20 | 207661644 | Hex. Flange Screw M6 X 16 |
| 21 | 390909100 | Avex Rivet |
| 22 | 518327460 | Driven Pulley Support This part replaces 518326192. |
| 23 | 233281414 | Hex. Flange Elastic Nut M8 |
| 24 | 250000351 | Hex. Flange Screw M8 X 25, Nylon |
| 25 | 207662044 | Hex. Flange Screw M6 X 20 |
| 26 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 27 | 518326559 | Rear Member |
| 28 | 233281414 | Hex. Flange Elastic Nut M8 |
| 29 | 518325114 | Upper Lateral Column Support |
| 30 | 207662044 | Hex. Flange Screw M6 X 20 |
| 31 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 32 | 518326657 | Center Column Support |
| 33 | 207662544 | Hex. Flange Screw M6 X 25 |
| 34 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 35 | 518325481 | Black Rear Bumper 137" |
| 36 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 37 | 520000840 | BLACK CAP - Call your local BRP dealership |
| 38 | 293730047 | Black, Dart 8 mm |
| 39 | 293730053 | Black Dart 5 mm |
| 40 | 518325418 | HEAT SHIELD - Call your local BRP dealership |
| 42 | 517124300 | Washer |
