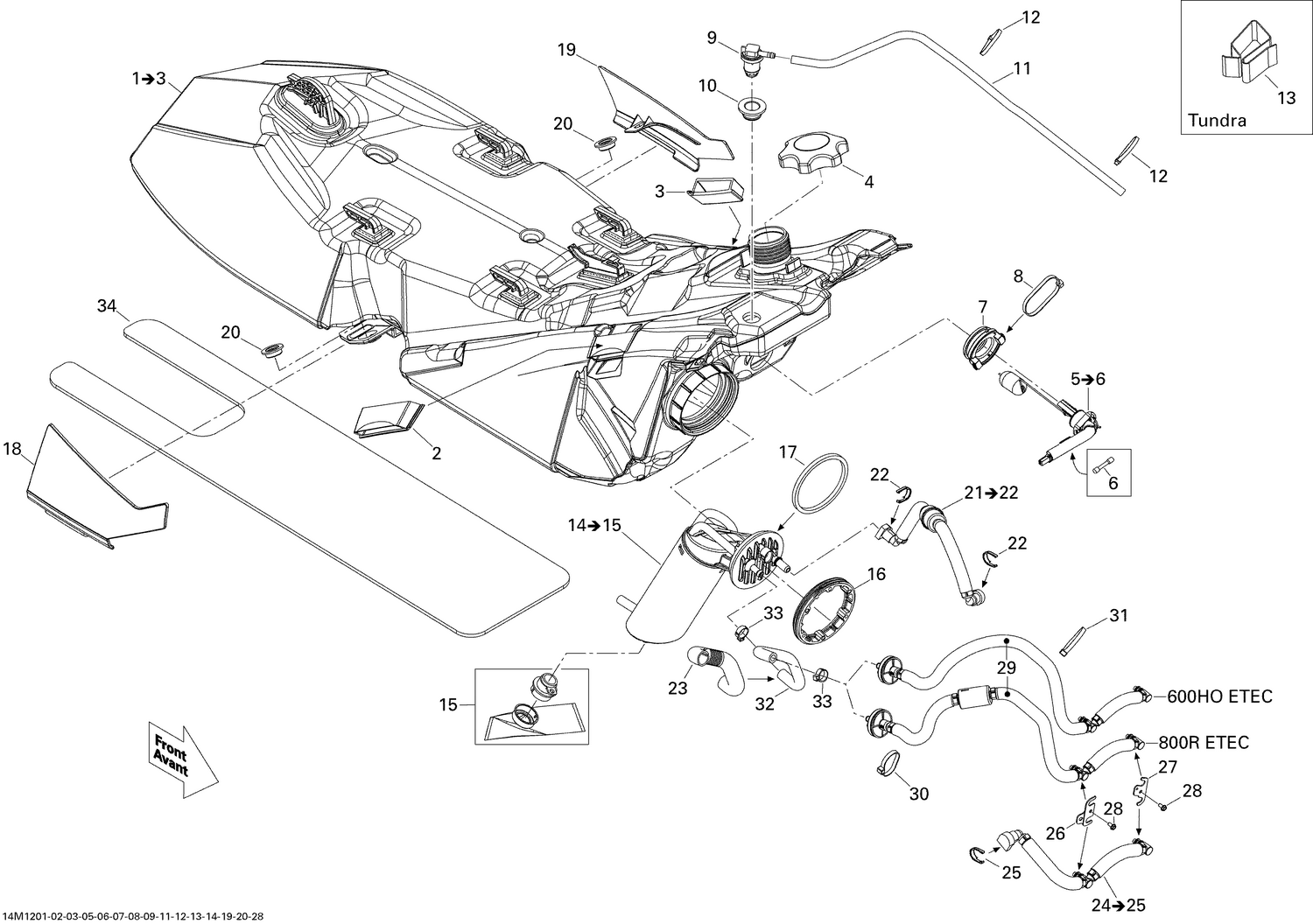

02- Fuel System
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 513033471 | RH Panel Clip |
| 3 | 513033472 | LH Panel Clip |
| 4 | 513033722 | Fuel Tank Cap 91 Octane This part replaces 513033024. |
| 6 | 710001995 | Fuse, 0.5 Ampère |
| 7 | 513033606 | Grommet |
| 8 | 293750008 | Tie Wrap 368 mm |
| 9 | 513033842 | Check Valve This part replaces 513033188. |
| 10 | 513033596 | Grommet |
| 11 | 219704410 | Polyurethane Hose 10000Mm Long |
| 12 | 414115200 | Tie-Rap 180 mm |
| 13 | XXX | Not Available As Spare Parts |
| 15 | 415129451 | Fuel Filter |
| 16 | 513033180 | Ring |
| 17 | 513033334 | Gasket |
| 18 | 513033418 | RH Cap |
| 19 | 513033419 | LH Cap |
| 20 | 513033326 | Shoulder Bushing |
| 22 | 513033135 | Locking Clip |
| 23 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 25 | 513033135 | Locking Clip |
| 26 | 513033542 | Bracket |
| 27 | 513033593 | Bracket |
| 28 | 207551044 | Hex. Flange Screw M5 X 10 |
| 30 | 414115200 | Tie-Rap 180 mm |
| 31 | 414115200 | Tie-Rap 180 mm |
| 32 | 513033544 | FORMED HOSE - Call your local BRP dealership |
| 33 | 293650047 | Crimp Clamp, 15.3-706R |
