| Ref | Part Number | Description |
|---|
| 1 |
0396394 |

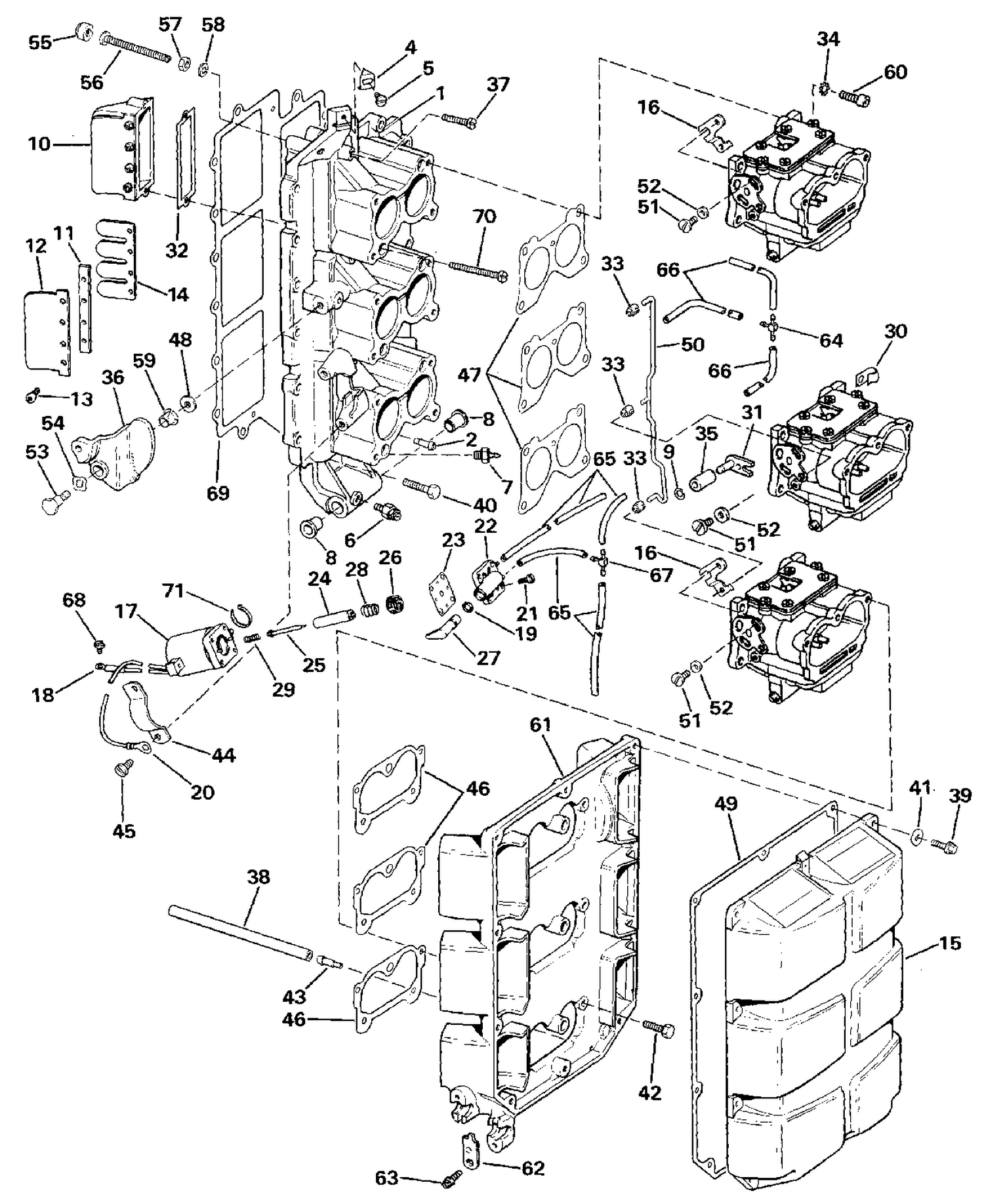

INTAKE MANIFOLD ASSEMBLY |
| 4 |
0330115 |
CLAMP, Power pack connector |
| 5 |
0329594 |
SCREW, Cam follower |
| 7 |
0392988 |
CHECK VALVE |
| 8 |
0331839 |
BUSHING |
| 9 |
0324678 |
JOINT TORIQUE Galet de came de papillon |
| 10 |
0389823 |
CLAPET |
| 15 |
0320930 |
COVER, Air silencer |
| 16 |
0320575 |
ADJ LEVER, Throttle link |
| 17 |
5007356 |
Kit Ay This part replaces 0397909. |
| 22 |
0511807 |
COVER&GASKET AY |
| 23 |
0333448 |
GASKET |
| 30 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 31 |
0432638 |
LEVER & PIN |
| 32 |
0321907 |
GASKET, Leaf plate |
| 33 |
0313329 |
LOCKWASHER, Carburetor link |
| 35 |
0432639 |
GALET, contre-came |
| 36 |
0330665 |
THROTTLE AM |
| 37 |
0133451 |
SCREW, Leaf plate manifold, short |
| 38 |
HOSE, |
Air silencer, 6 1/2 in. (165mm) |
| 40 |
0306418 |
VIS, ancrage |
| 42 |
0328695 |
CLAMP, Engine cable |
| 44 |
0330118 |
CLAMP |
| 46 |
0319771 |
GASKET SET, Air silencer |
| 47 |
0327707 |
GASKET, Air silencer |
| 49 |
0321183 |
GASKET, Cover |
| 50 |
0432272 |
LINK AND PIN, Throttle arm |
| 51 |
0329594 |
SCREW, Cam follower |
| 54 |
0328733 |
RONDELLE ÉLASTIQUE, levier de sens de marche |
| 55 |
0314416 |
BUMBER, Advance screw |
| 56 |
0328722 |
SCREW, Spark adjust |
| 60 |
0203023 |
SCREW, Bracket to upper carb. |
| 61 |
0391254 |
BASE, Air silencer |
| 62 |
0325388 |
RETAINER, Air silencer base |
| 63 |
0335200 |
VIS, capteur position de vilebrequin vers support |
| 64 |
0325569 |
T, amorçage |
| 65 |
HOSE, |
Primer solenoid system |
| 66 |
HOSE, |
Drain system |
| 67 |
0325569 |
T, amorçage |
| 68 |
0329182 |
VIS, borne |
| 69 |
0329718 |
GASKET, Manifold to c'case |
| 70 |
0313217 |
SCREW |
