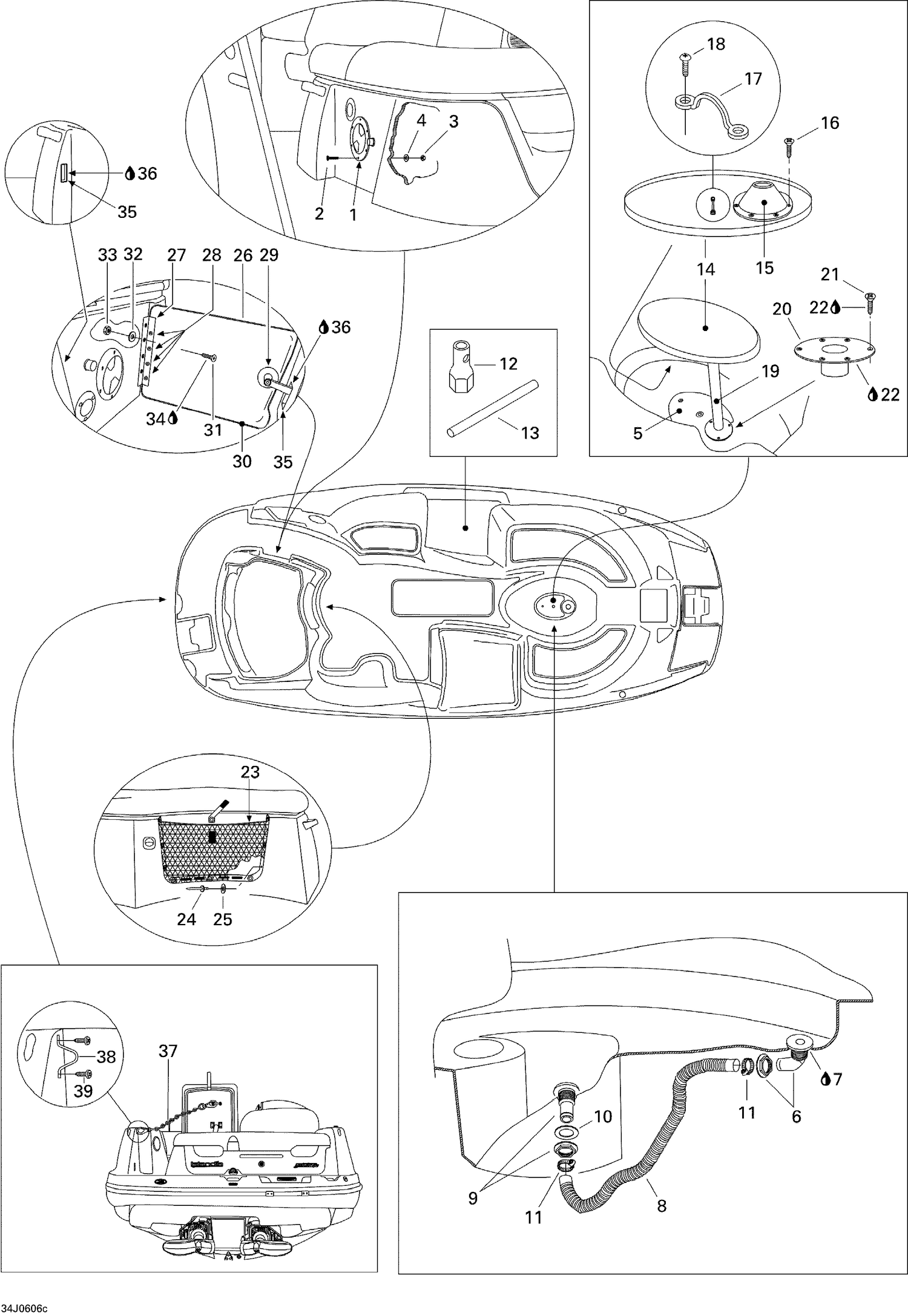

| Ref | Part Number | Description |
|---|
| 1 |
204070622 |
BOTTOM PLATE - Call your local BRP dealership |
| 2 |
208442060 |
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership |
| 3 |
232541600 |
Elastic Stop Nut M4 |
| 4 |
234042600 |
Flat Washer 4 mm, Stainless |
| 5 |
204070892 |
FOUNTAIN COVER - Call your local BRP dealership |
| 6 |
204071166 |
DRAIN FITTING 90 - Call your local BRP dealership |
| 7 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 8 |
291001206 |
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership |
| 9 |
293710162 |
Fitting This part replaces 293710015. |
| 10 |
293250006 |
GASKET - Call your local BRP dealership |
| 11 |
293650016 |
Tridon Clamp |
| 12 |
529035731 |
Socket Wrench |
| 13 |
Not |
Available As Spare Part - Steel Bar |
| 14 |
204072391 |
COCKPIT TABLE - Call your local BRP dealership |
| 15 |
204071315 |
TABLE MOUNT - Call your local BRP dealership |
| 16 |
209951960 |
TAPPING SCREW M5 X 19 - Call your local BRP dealership |
| 17 |
204070234 |
Strap Tie |
| 18 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 19 |
204070634 |
TABLE POST, LARGE - Call your local BRP dealership |
| 20 |
204071209 |
TABLE BASE - Call your local BRP dealership |
| 21 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 22 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 23 |
Not |
Available As Spare Part - Storage Net |
| 24 |
293150005 |
Pop Rivet 3/16" |
| 25 |
234052600 |
Flat Washer 5 mm, Stainless |
| 26 |
204072584 |
Stern Gate |
| 27 |
204071038 |
Stern Gate Hinge |
| 28 |
293150081 |
Pop Rivet 1/4” |
| 29 |
204070951 |
DOOR LATCH - Call your local BRP dealership |
| 30 |
293200068 |
NEOPRENE SEAL, METER - Call your local BRP dealership |
| 31 |
205462560 |
SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 32 |
234061600 |
Stainless Flat Washer M6 |
| 33 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 34 |
293800060 |
Loctite 243, 10 ml |
| 35 |
293720099 |
GROMMET - Call your local BRP dealership |
| 37 |
204072222 |
Chain Ass'y |
