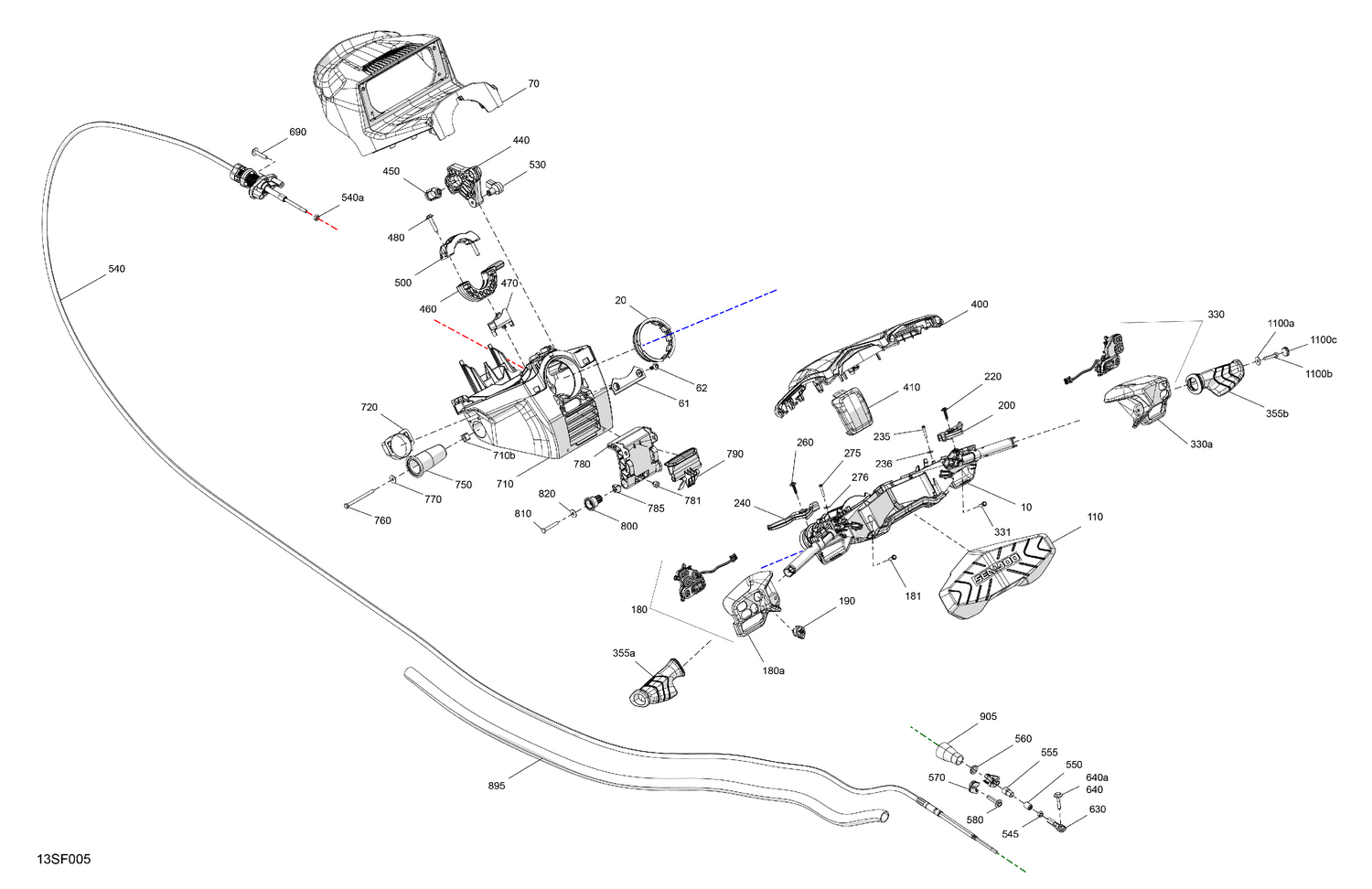

| Ref | Part Number | Description |
|---|
| 10 |
277002356 |
Steering Column |
| 20 |
277001874 |
Wear Ring |
| 61 |
277002426 |
Damper Cover Support |
| 62 |
250001171 |
Plastite Torx Screw Cone HD.M6.81X2 |
| 70 |
277002299 |
Gauge Support |
| 110 |
277002239 |
Deep Black, Handlebar Trim |
| 180a |
277002353 |
LH Front Trim Lever - Trim |
| 181 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 190 |
277002368 |
Red, Switch Button |
| 200 |
277002138 |
Hand Lever Accelerator |
| 220 |
250001087 |
Flange Screw Plastite #10, 14 X 7/8" |
| 235 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 236 |
234042600 |
Flat Washer 4 mm, Stainless |
| 240 |
277001945 |
Reverse Handle |
| 260 |
250001087 |
Flange Screw Plastite #10, 14 X 7/8" |
| 275 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 276 |
234042600 |
Flat Washer 4 mm, Stainless |
| 330a |
277002354 |
RH Front Trim Lever - Trim |
| 331 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 355a |
277001958 |
Deep Black, LH Handle Grip |
| 355b |
277001946 |
Deep Black, RH Handle Grip |
| 400 |
277002357 |
Upper Handlebar Trim |
| 410 |
269801535 |
Cover Without_Damper |
| 440 |
295501183 |
Steering Arm Kit |
| 450 |
295501183 |
Steering Arm Kit |
| 460 |
277001987 |
Arm |
| 470 |
277001654 |
Spacer |
| 480 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 500 |
277002085 |
C Clamp |
| 530 |
277002119 |
End Fitting Cable |
| 540a |
211100056 |
Hex. Nut 1/4"-28 |
| 545 |
211100056 |
Hex. Nut 1/4"-28 |
| 550 |
277001582 |
Wiper Rod |
| 555 |
277001583 |
End Piece |
| 560 |
293830063 |
Rubber Washer |
| 570 |
277001856 |
Ring Halves |
| 580 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 630 |
277000775 |
Ball Joint |
| 640a |
250000969 |
Hex Screw SEMS M6X35, SS |
| 690 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 710b |
269502544 |
Nut Housing M6 |
| 720 |
277002318 |
Wear Ring |
| 750 |
277001605 |
Steering Support Pivot |
| 760 |
207168060 |
Hex Screw M6 X 80 |
| 770 |
234062600 |
Flat Washer M6, Stainless |
| 780 |
277001996 |
Adjustment Handle |
| 781 |
293830005 |
Rubber Bumper |
| 785 |
269502544 |
Nut Housing M6 |
| 790 |
277002010 |
Lock |
| 800 |
277001652 |
Pivot |
| 810 |
207064060 |
Hex. Screw M6 X 40 |
| 820 |
234062600 |
Flat Washer M6, Stainless |
| 895 |
276000601 |
Corrugated Sheath 22 mm ID |
| 905 |
277002150 |
Rope Guide |
| 1100a |
234062600 |
Flat Washer M6, Stainless |
| 1100b |
207364560 |
Hex. Screw M6 x 45, Scotch Grip |
