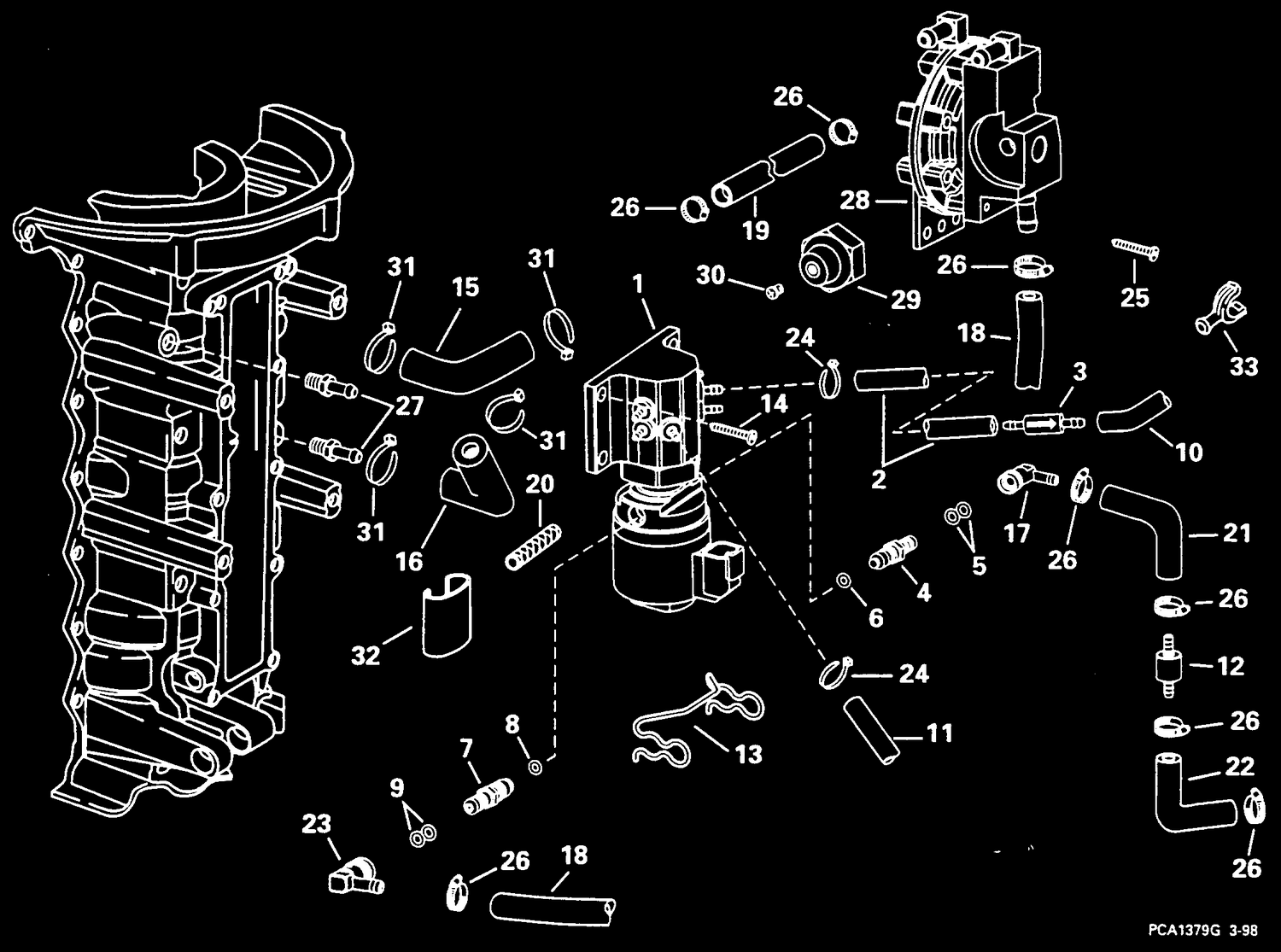

| Ref | Part Number | Description |
|---|
| 1 |
0439726 |
OIL INJECTOR & MANIFOLD ASSY. |
| 2 |
HOSE, |
Manifold to check valve, 4 1/2 in. (1 4mm) |
| 3 |
0439738 |
CHECK VALVE |
| 4 |
0439203 |
NIPPLE ASSY., Oil return |
| 5 |
0343605 |
O-RING, Injector, fuel return |
| 6 |
0124946 |
O-RING, Nipple to housing |
| 7 |
0438109 |
NIPPLE ASSY., Fuel inlet |
| 10 |
HOSE, |
Check valve to lift pump, 4 1/2 in. (114mm) |
| 11 |
HOSE, |
Oil manifold to intake nipples, 13 3/8 in. (340mm) |
| 13 |
0343563 |
RETAINER, Connectors to injector |
| 15 |
0333383 |
HOSE, Connector to filter |
| 16 |
0333446 |
FLEXIBLE, entrée d'eau |
| 17 |
0344187 |
CONNECTOR, Hose to injector, oil return |
| 18 |
0344178 |
HOSE, Oil pump hsg. to oil injector |
| 19 |
0344173 |
HOSE, Inlet tube to oil housing |
| 21 |
HOSE, |
Injector to pressure regulator, 4 in. (102mm) |
| 22 |
HOSE, |
Regulator to return tube, 4 in. (102mm) |
| 23 |
0344188 |
CONNECTOR, Hose to injector, oil inlet |
| 26 |
0343765 |
COLLIER, flexible d'indicateur d’éjection |
| 28 |
5001261 |
Kit Ay This part replaces 5000381. |
| 29 |
0445037 |
MANOSTAT D'HUILE |
| 31 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 32 |
0344520 |
SUPPORT, Oil injector |
